Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SPEEDOMETER

HEADLIGHT FOR SUZUKI GS-G 1100 1983

INDICATORS

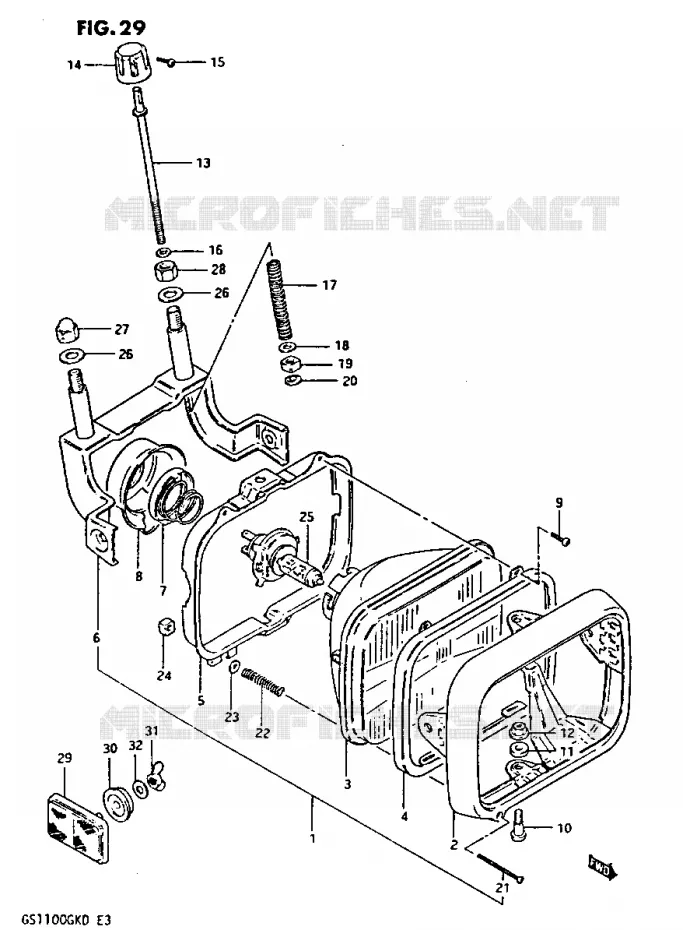

HEADLIGHT Suzuki MOTO 1100 GS-G 1983 GS1100GKD(Z/2/D)
1
DISCONTINUED

35100-49430-999   3510049430999

3510049430999
Not available
2
DISCONTINUED

35111-49430-000   3511149430000

3511149430000
Not available
3
LAMP UNIT
UNIT HEAD LAMP

35121-49230-000   3512149230000

3512149230000

Unit Price

4
DISCONTINUED

35127-49430-000   3512749430000

3512749430000
Not available
5
MOUNTING RING

35130-49430-000   3513049430000

3513049430000
Not available
6
DISCONTINUED

35381-49430-000   3538149430000

3538149430000
Not available
7
DISCONTINUE<br />HOLDER HEAD LAMP
DISCONTINUE
HOLDER HEAD LAMP

35136-49200-000   3513649200000

3513649200000
Not available
8
COVER, SOCKET

35173-49200-000  

35173-38A00-000
 3517349200000

Unit Price

9
SCREW

02112-03087-000  

02112-0308A-000
 0211203087000

Unit Price

10
DISCONTINUED

35136-49430-000   3513649430000

3513649430000
Not available
11
DISCONTINUE<br />HEAD LAMP SPACER
DISCONTINUE
HEAD LAMP SPACER

35133-45600-000   3513345600000

3513345600000
Not available
12
NUT

35135-25611-000  

08316-10053-000
 3513525611000

Unit Price

13
SHAFT, ADJUST

35151-49410-000   3515149410000

3515149410000
Not available
14
DISCONTINUED

35161-49430-000   3516149430000

3516149430000
Not available
15
SCREW

02112-03128-000  

02112-0312B-000
 0211203128000

Unit Price

16
WASHER HEAD LAMP

35157-49430-000   3515749430000

3515749430000
Not available
17
SPRING, HEAD LAMP

35154-49410-000   3515449410000

3515449410000
Not available
18
.WASHER

35157-49320-000   3515749320000

3515749320000
Not available
19
NUT HEAD LAMP

35192-49430-000   3519249430000

3519249430000
Not available
20
NUT 4MM

35152-49330-000  

09148-04010-000
 3515249330000

Unit Price

21
SCREW , 4X50

35151-49430-000  

09125-04020-000
 3515149430000

Unit Price

22
HEADLAMP ADJUSTER SPRING

35154-49430-000   3515449430000

3515449430000
Not available
23
WASHER
HEADLAMP WASHER

35157-27630-000   3515727630000

3515727630000

Unit Price

24
NUT<br />HEAD LAMP NUT
NUT
HEAD LAMP NUT

35135-45600-000   3513545600000

3513545600000

Unit Price

25
BULB(12V, 5W)
BULB(HALOGEN) (12V, 60/55W, H4)

09471-12060-000  

0947112060000
Not available
26
WASHER

08322-11128-000  

08322-01127-000
 0832211128000

Unit Price

27
DISCONTINUED

09145-12003-000   0914512003000

0914512003000
Not available
28
NUT

08310-12128-000  

08310-00127-000
 0831012128000

Unit Price

29
REFLECTOR FR

35950-49410-000   3595049410000

3595049410000
Not available
30
SPACER FR SIDE RR

35954-49410-000   3595449410000

3595449410000
Not available
31
08317-12053
.NUT 7MM

08317-12058-000  

0831712058000
Not available
32
WASHER

08322-21057-000  

08322-01057-000
 0832221057000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki of GS-G. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GS-G 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1100 GS-G 1983

Select your Suzuki 1983 model

1100 GS-G 1983 GS1100GKD(Z/2/D)

Suzuki GS-G

Displacement: 1100 cc
Year: 1983
Model code GS1100GKD(Z / 2 / D)
