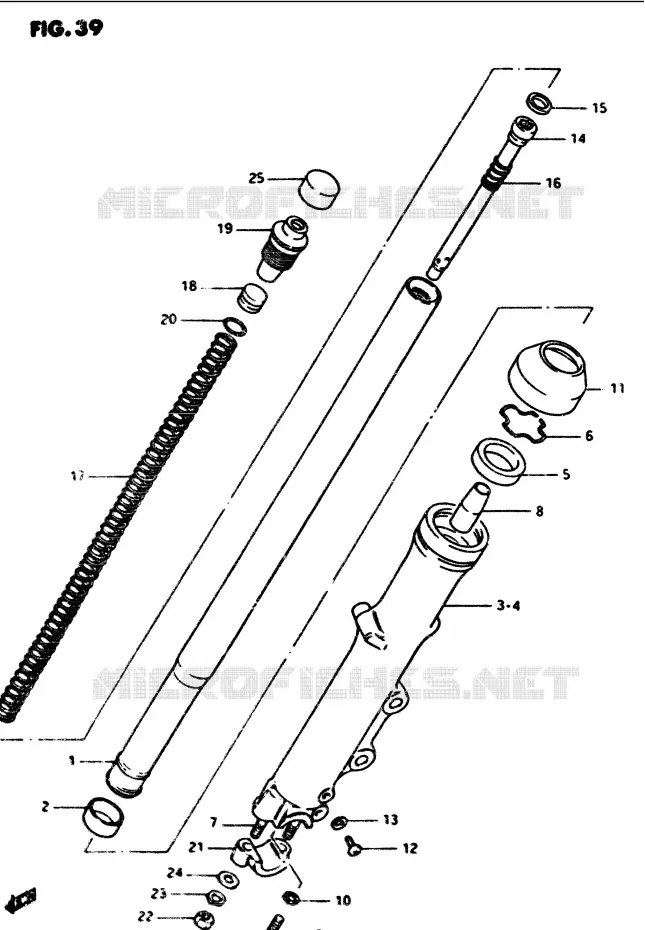

FRONT FORK FOR SUZUKI GS-G 1100 1984

STEERING COLUMN

INNER TUBE

51110-49410-000 5111049410000

Not available

PISTON

51121-49200-000 5112149200000

$28,97

Unit Price

DISCONTINUED

51130-49400-000 5113049400000

Not available

OUTER TUBE, LH

51140-49400-000 5114049400000

Not available

SEAL, OIL

51153-49001-000

51153-08C20-000

$28,97

Unit Price

RING, STOPPER
RING, OIL SEAL STOPPER

51156-40301-000 5115640301000

$7,97

Unit Price

STUD BOLT L:30
STUD BOLT

09108-08142-000 0910808142000

$5,97

Unit Price

PIECE, OIL LOCK

51195-49071-000 5119549071000

$22,97

Unit Price

BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

DAMPER ASSY, RH

51103-49410-000 5110349410000

Not available

DAMPER ASSY, LH

51104-49410-000 5110449410000

Not available

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

SEAL, DUST
DUST SEAL

51173-49002-000 5117349002000

$30,97

Unit Price

SCREW, 4X8
SCREW

02112-04087-000 0211204087000

$2,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-03010-000 5118303010000

Not available

CYLINDER

51146-49020-000 5114649020000

Not available

RING, PISTON
PISTON RING

51196-49000-000 5119649000000

$15,97

Unit Price

DISCONTINUE
SPRING

51177-49000-000 5117749000000

Not available

SPRING

51171-45160-000 5117145160000

Not available

DISCONTINUE
GUIDE, SPRING

51172-45110-000 5117245110000

Not available

DISCONTINUE
CAP, UPPER

51351-49200-000 5135149200000

Not available

O RING(D:3.5, ID:21.8)

51117-45110-000

09280-22011-000

$12,97

Unit Price

DISCONTINUE
HOLDER, AXLE

51132-49000-000 5113249000000

Not available

NUT

09140-08005-000

09140-08017-000

$3,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

WASHER

08322-21088-000

08322-01087-000

$3,97

Unit Price

CAP, RUBBER

51189-49300-000 5118949300000

$16,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of GS-G. Let us know if you have any questions.
