TIMING (MODEL Z) FIG.15 (C-5) : MODEL D

TIMING (MODEL D) FOR SUZUKI GSX-E 1100 1983

CARBURETOR (MODEL Z) FIG. 17 (C-9) : MODEL D

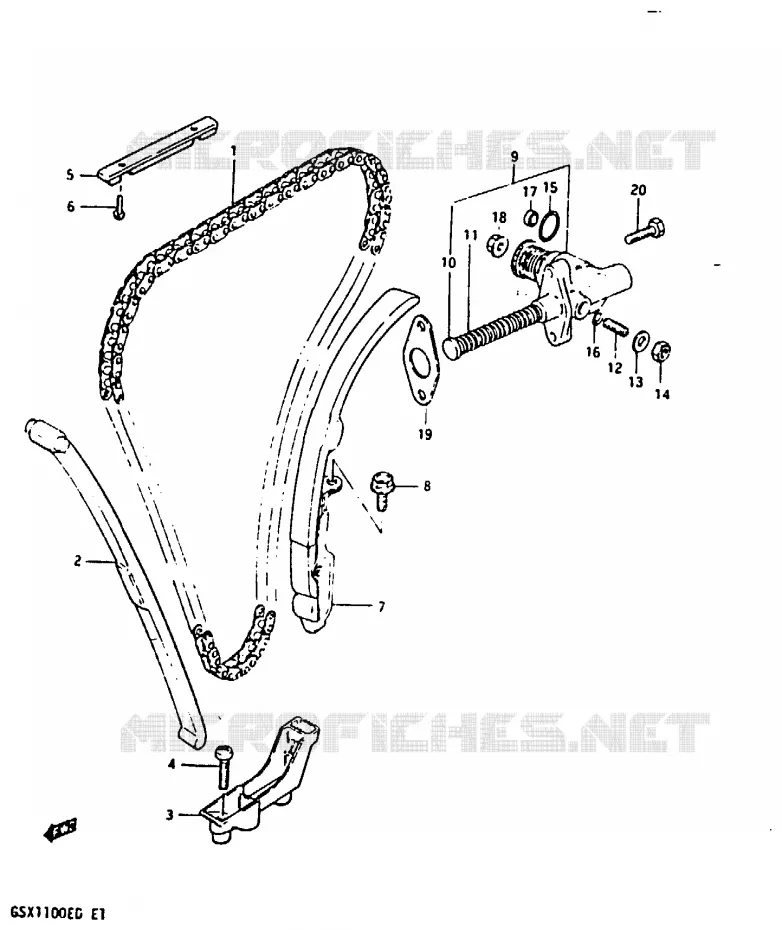

TIMING (MODEL D) Suzuki MOTO 1100 GSX-E 1983 GSX1100ED(Z/D)
1
CHAIN, CAMSHAFT DRIVE(120L)

12760-49011-000  

12760-45040-000
 1276049011000

Unit Price

2
GUIDE, CAM CHAIN NO.1

12771-45052-000  

12771-45053-000
 1277145052000

Unit Price

3
DISCONTINUE
HOLDER, GUIDE

12776-49000-000   1277649000000

1277649000000
Not available
4
SCREW

02112-06208-000  

02112-06207-000
 0211206208000

Unit Price

5
GUIDE, CAM CHAIN
GUIDE, CAM CHAIN

12782-49200-000   1278249200000

1278249200000

Unit Price

6
SCREW

02112-05128-000  

02112-05127-000
 0211205128000

Unit Price

7
DISCONTINUE
DISCONTINUE

12810-49250-000  

1281049250000
Not available
8
BOLT

01517-08168-000   0151708168000

0151708168000
Not available
9
DISCONTINUE

12830-47011-000  

1283047011000
Not available
10
DISCONTINUE
PUSH ROD

12833-47001-000   1283347001000

1283347001000
Not available
11
SPRING

09440-12017-000   0944012017000

0944012017000

Unit Price

12
SCREW

12838-45010-000  

12838-45001-000
 1283845010000

Unit Price

13
.GASKET

08322-11085-000   0832211085000

0832211085000
Not available
14
.NUT

08310-11085-000   0831011085000

0831011085000
Not available
15
.O RING

09280-21001-000   0928021001000

0928021001000
Not available
16
.O RING

09280-06003-000   0928006003000

0928006003000
Not available
17
.OIL SEAL

09284-10003-000   0928410003000

0928410003000
Not available
18
NUT

08316-16065-000   0831616065000

0831616065000
Not available
19
GASKET, TENSIONER

12837-47000-000   1283747000000

1283747000000
Not available
20
BOLT

09128-06022-000   0912806022000

0912806022000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING (MODEL D) of your Suzuki 1100 GSX of GSX-E. Let us know if you have any questions.
