FRONT BRAKE HOSE (GSX1100Z / D / XD)

SWINGARM (GSX1100EZ / ED / EXD / ESD) FOR SUZUKI GSX-E 1100 1983

SWINGARM (GSX1100Z / D / XD)

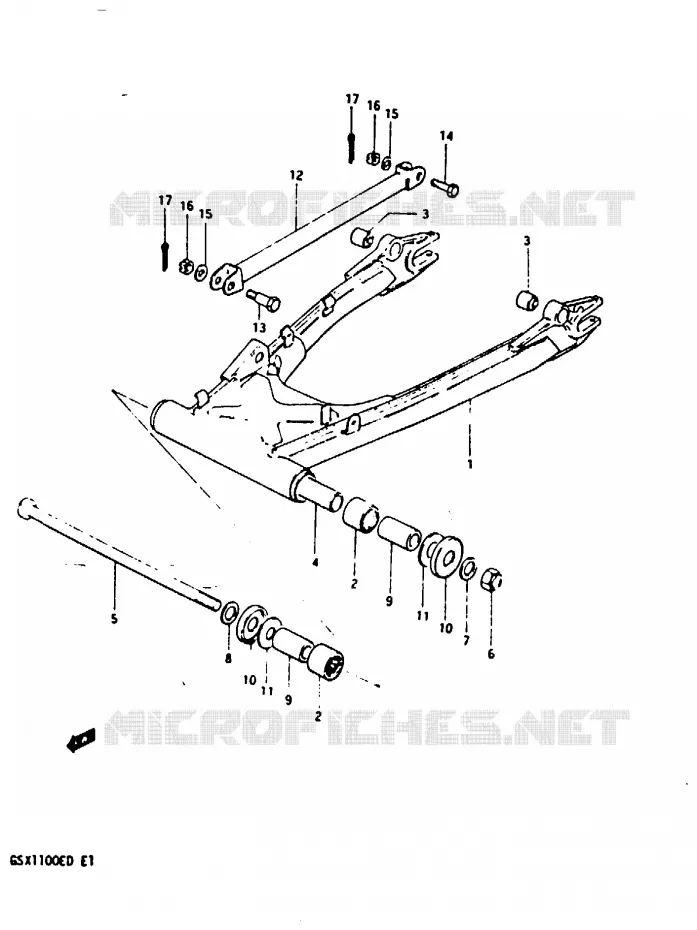

SWINGARM (GSX1100EZ/ED/EXD/ESD) Suzuki MOTO 1100 GSX-E 1983 GSX1100ESD(Z/D)
1
SWINGING ARM SET

61100-49851-000   6110049851000

6110049851000
Not available
1
DISCONTINUED

61100-49860-000   6110049860000

6110049860000
Not available
2
SWING ARM P BEARING<br />BEARING
SWING ARM P BEARING
BEARING

09263-25024-000   0926325024000

0926325024000

Unit Price

3
SWINGING ARM RR BUSH<br />BRSHING, REAR
SWINGING ARM RR BUSH
BRSHING, REAR

09319-10008-000   0931910008000

0931910008000

Unit Price

4
DISCONTINUE<br />SPACER, CENTER
DISCONTINUE
SPACER, CENTER

61282-49000-000   6128249000000

6128249000000
Not available
5
SHAFT, PIVOT

61211-49000-000   6121149000000

6121149000000
Not available
5
SHAFT, PIVOT

61211-49200-000   6121149200000

6121149200000
Not available
6
NUT

08319-21168-000  

08319-2116A-000
 0831921168000

Unit Price

7
WASHER

08322-11168-000  

08322-01167-000
 0832211168000

Unit Price

8
WASHER

08322-11168-000  

08322-01167-000
 0832211168000

Unit Price

9
SPACER,RR SWGARM PIVOT<br />SPACER
SPACER, RR SWGARM PIVOT
SPACER

61251-49000-000   6125149000000

6125149000000

Unit Price

10
COVER,RR SWINGINGARM PIVOT
COVER, RR SWINGINGARM PIVOT

61262-49201-000  

61262-49202-000
 6126249201000

Unit Price

11
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-16381-000   0821116381000

0821116381000

Unit Price

12
TORQUE LINK, REAR (BLACK)
TORQUE LINK, REAR (BLACK)

64310-49200-019   6431049200019

6431049200019
Not available
13
DISCONTINUE

09111-10011-000  

0911110011000
Not available
14
RR TORQUE LINK BOLT<br />BOLT, REAR
RR TORQUE LINK BOLT
BOLT, REAR

09101-10017-000   0910110017000

0910110017000

Unit Price

15
WASHER, LOWER LH

08322-11108-000   0832211108000

0832211108000
Not available
16
NUT

08314-41108-000  

08314-4010B-000
 0831441108000

Unit Price

17
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (GSX1100EZ/ED/EXD/ESD) of your Suzuki 1100 GSX of GSX-E. Let us know if you have any questions.
