CLUTCH

TRANSMISSION FOR SUZUKI GSX-F 1100 1988

GEAR SHIFTING ASSY

Item numbers

SHAFT, CNTR(NT:13)

24121-48B01-000

24121-48B10-000

$258,97

Unit Price

GEAR, 2ND DRIVE(NT:19

24221-48B00-000

24221-48B10-000

$94,97

Unit Price

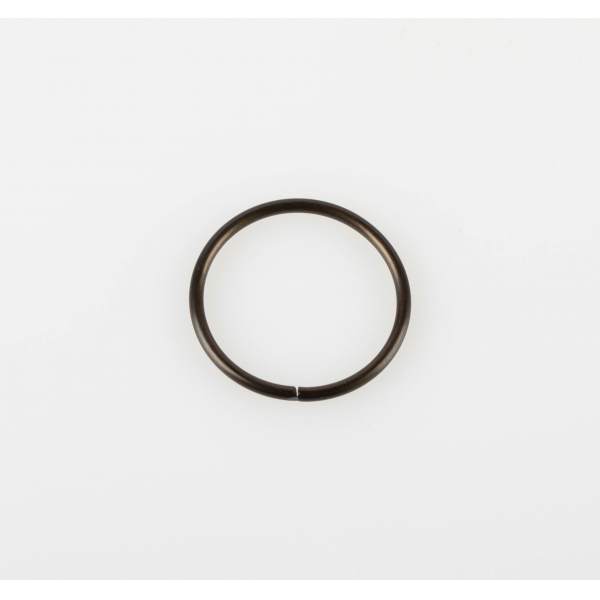

CIRCLIP

09380-25012-000 0938025012000

$3,97

Unit Price

GEAR, 3RD DRIVE(NT:20)

24231-48B01-000

24231-48B10-000

$204,97

Unit Price

GEAR, 4TH DRIVE(NT:22)

24241-48B00-000

24241-48B50-000

$185,97

Unit Price

BUSH

09301-25001-000

24322-19F00-000

$16,97

Unit Price

GEAR, 5TH DRIVE

24251-48B02-000

24251-48B30-000

$170,97

Unit Price

DISCONTINUE

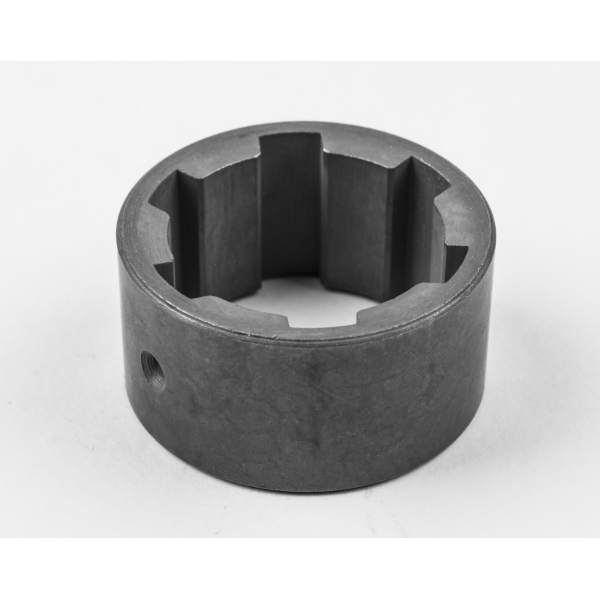

BUSH

24252-48B00-000 2425248B00000

Not available

WASHER, LOCK
WASHER

09167-25021-000 0916725021000

$5,97

Unit Price

LOCK WASHER

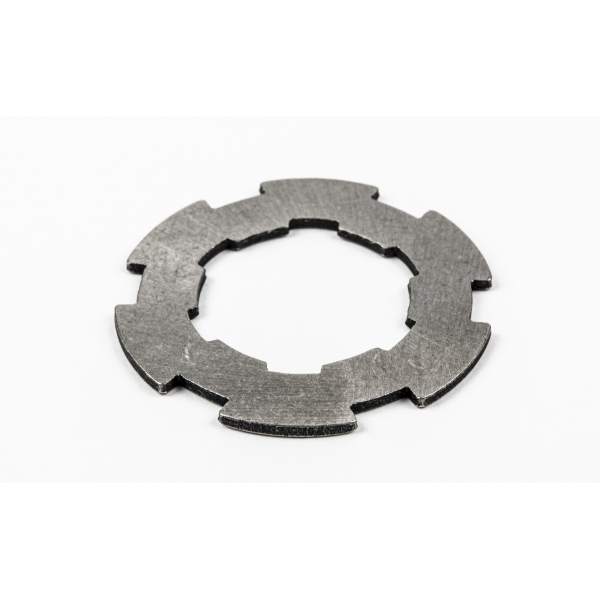

WASHER, LOCK

09167-25013-000 0916725013000

$4,97

Unit Price

LOCK WASHER

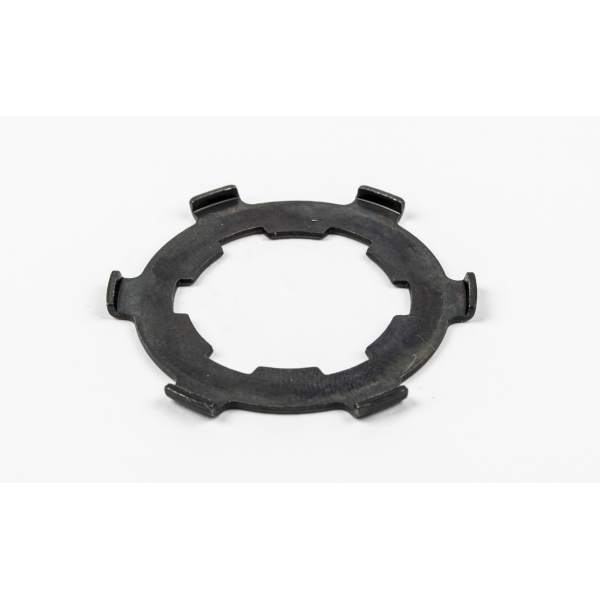

WASHER, LOCK

09169-25001-000 0916925001000

$3,97

Unit Price

3RD PINION CIRCLIP
CIRCLIP

09380-25003-000 0938025003000

$5,97

Unit Price

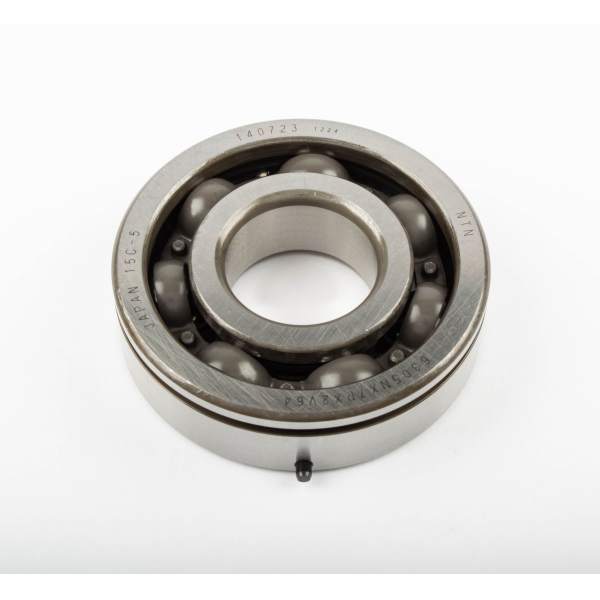

BEARING

09262-25051-000

09262-25105-000

$72,97

Unit Price

C-RING

09390-62006-000

09390-62012-000

$10,97

Unit Price

OIL SEAL

09285-20006-000 0928520006000

$9,97

Unit Price

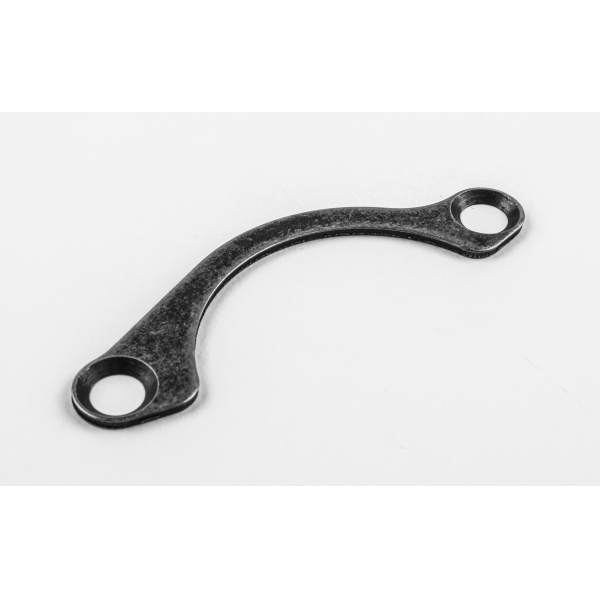

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-27A00-000 2474127A00000

$9,97

Unit Price

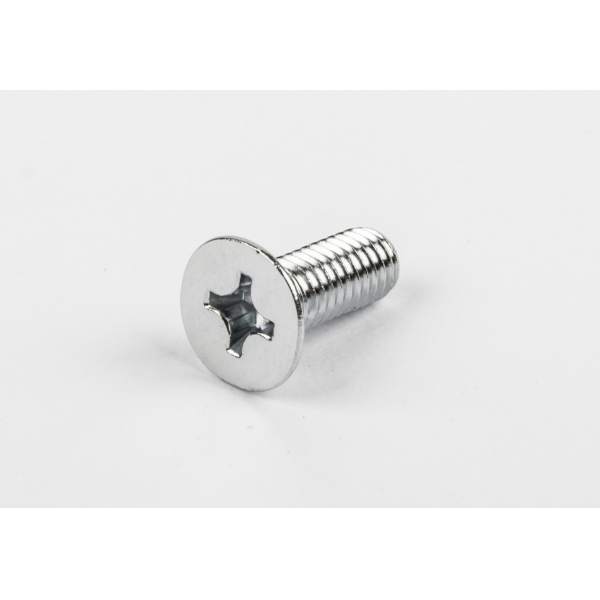

SCREW 6X16
SCREW

02122-06167-000 0212206167000

$2,97

Unit Price

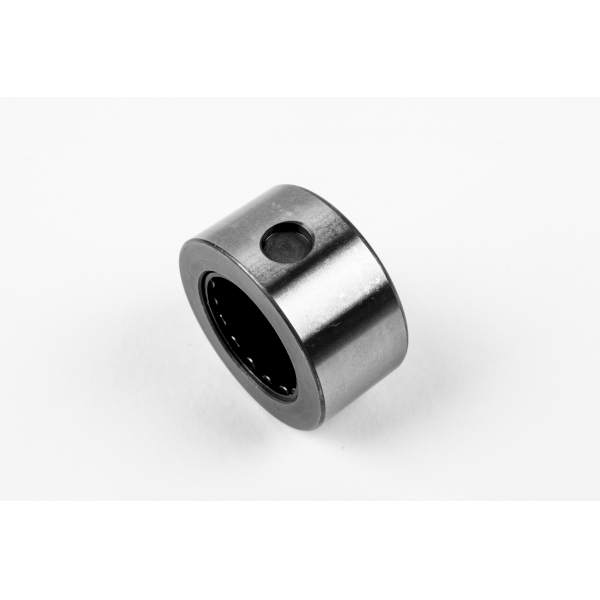

BEARING, COUNTERSHAFT

09263-20049-000

09263-20119-000

$77,97

Unit Price

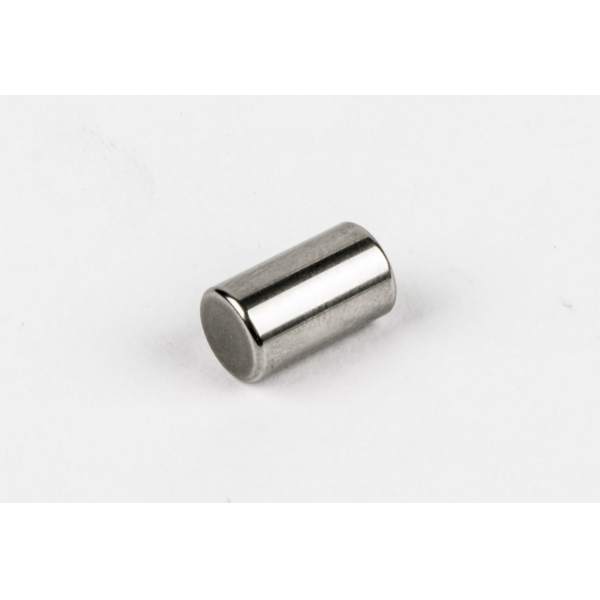

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$2,97

Unit Price

DRIVESHAFT

24131-48B00-000 2413148B00000

Not available

DISCONTINUE

24311-48B00-000

Not available

BUSH

09300-22005-000

24312-02F00-000

$25,97

Unit Price

WASHER
WASHER, RH

08211-20341-000 0821120341000

$2,97

Unit Price

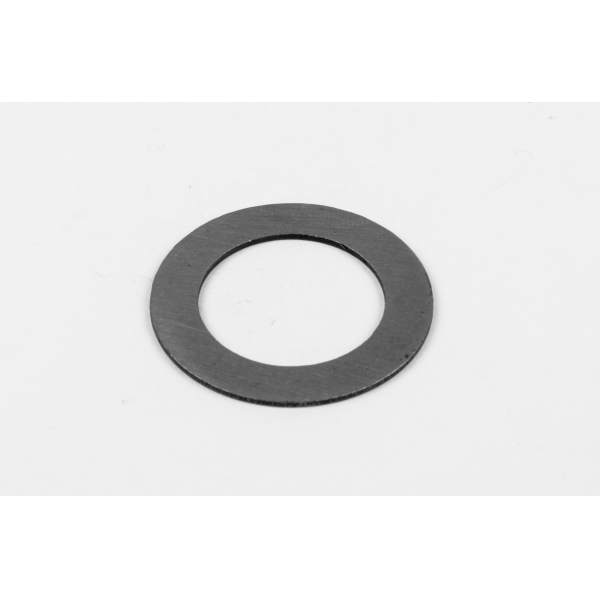

WASHER
WASHER, LH

08211-22341-000 0821122341000

$5,97

Unit Price

GEAR, 2ND DRIVEN(NT:31)

24321-48B00-000

24321-48B10-000

$154,97

Unit Price

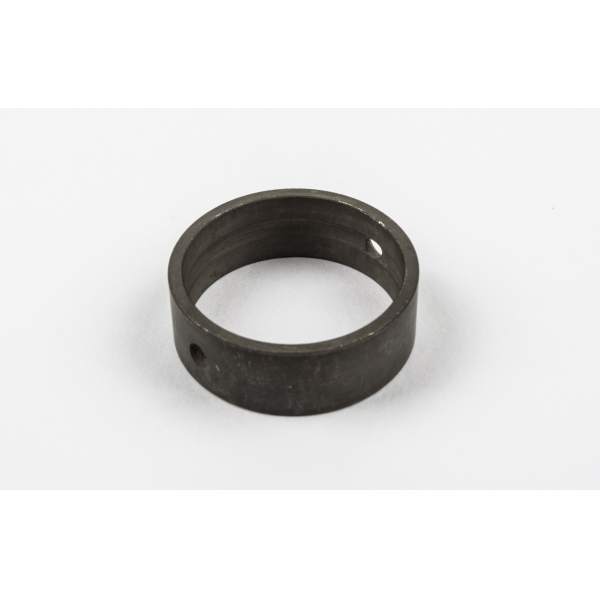

BUSH

09300-28002-000 0930028002000

$31,97

Unit Price

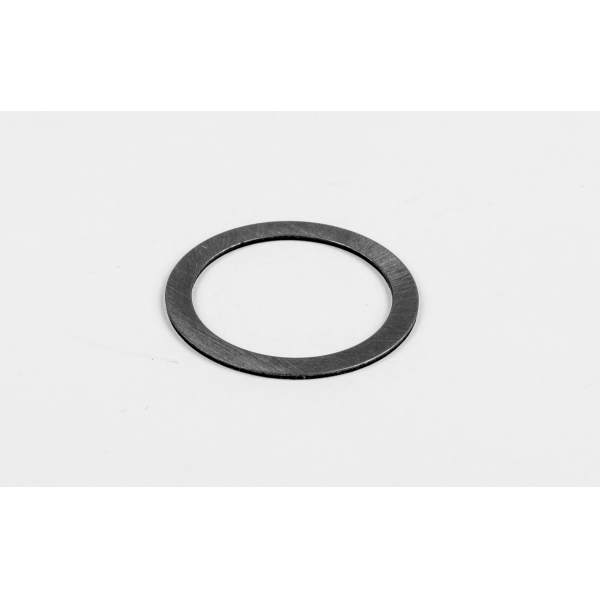

WASHER

08211-28361-000 0821128361000

$6,17

Unit Price

CIRCLIP

08331-31286-000

08331-31289-000

$3,97

Unit Price

GEAR, 3RD DRIVEN(NT:25)

24331-48B02-000

24331-48B30-000

$151,97

Unit Price

BUSH, 3RD DRIVEN GEAR

24332-48B00-000

24332-48B01-000

$37,97

Unit Price

WASHER, LOCK
WASHER, RH

09167-28001-000 0916728001000

$6,97

Unit Price

DISCONTINUE

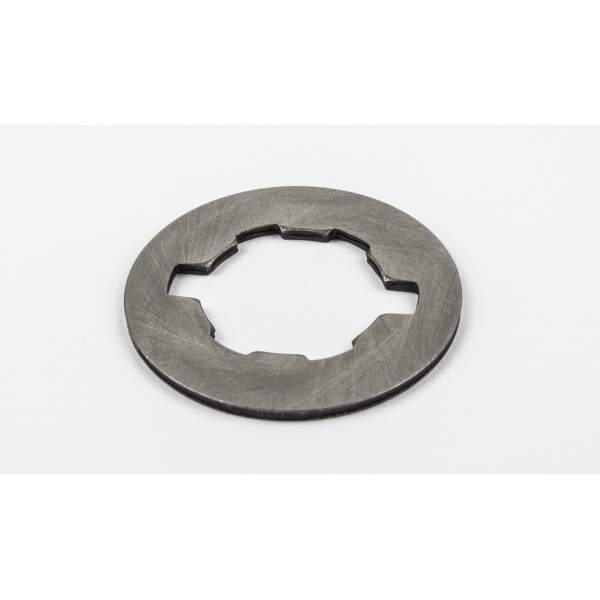

WASHER, LH (T:2)

09167-28008-000 0916728008000

Not available

GEAR, 4TH DRIVEN(NT:23)

24341-06B01-000

24341-06B30-000

$157,97

Unit Price

GEAR, 5TH DRIVEN(NT:21)

24351-48B03-000

24351-48B06-000

$153,97

Unit Price

GEAR, 5TH DRIVEN (NT:21)

24351-48B01-000 2435148B01000

Not available

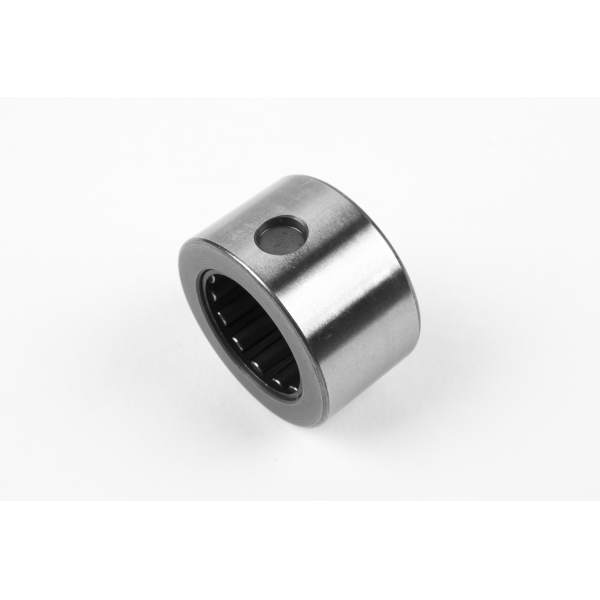

BEARING, DR SHAFT RH
BEARING, RH

09263-20040-000 0926320040000

$66,97

Unit Price

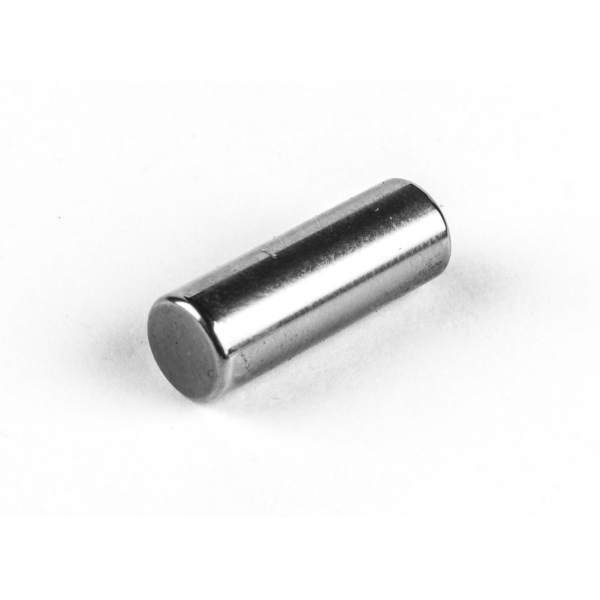

PIN
PIN (L:20)

04221-07209-000 0422107209000

$3,97

Unit Price

DISCONTINUE

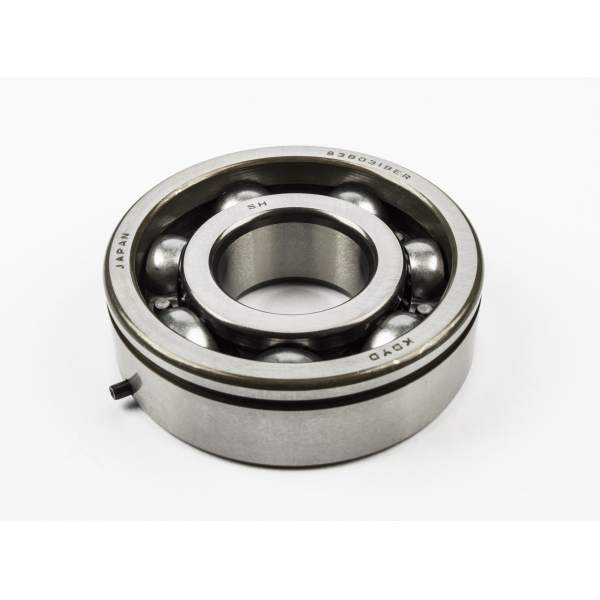

BEARING, LH

09262-25103-000 0926225103000

Not available

C-RING

09390-62006-000

09390-62012-000

$10,97

Unit Price

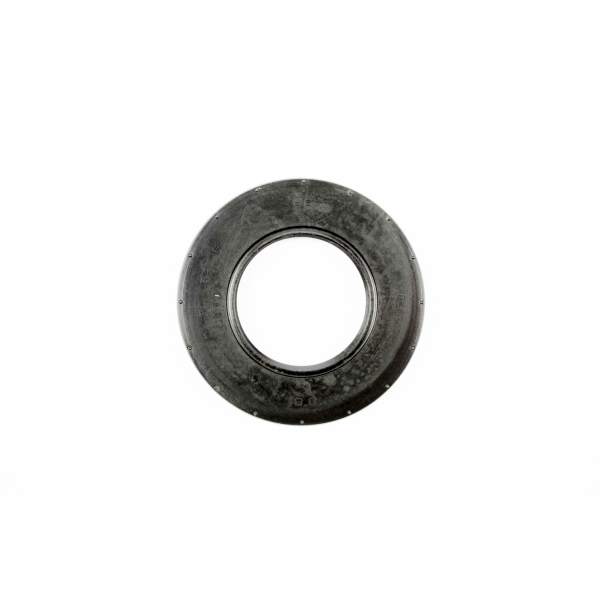

SEAL, OIL 34X62X6
OIL SEAL (34X62X6)

09283-34005-000 0928334005000

$26,97

Unit Price

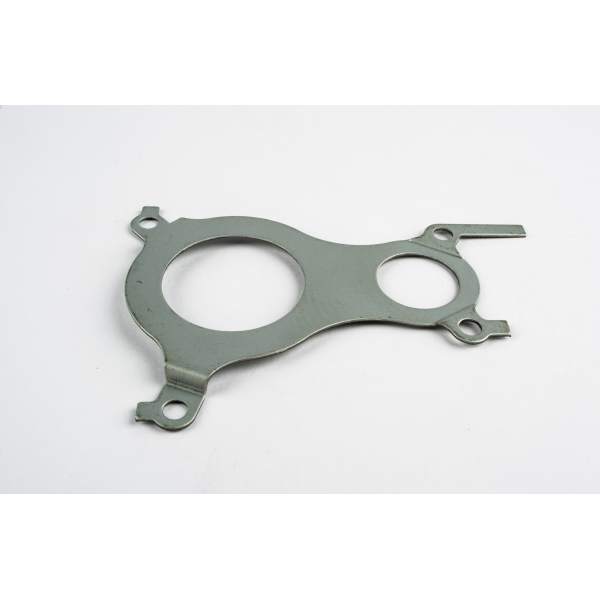

RETAINER, DRIVE SHAFT
PLATE

24751-27A01-000 2475127A01000

$6,97

Unit Price

BOLT

01107-06107-000

01500-06107-000

$3,97

Unit Price

DISCONTINUE

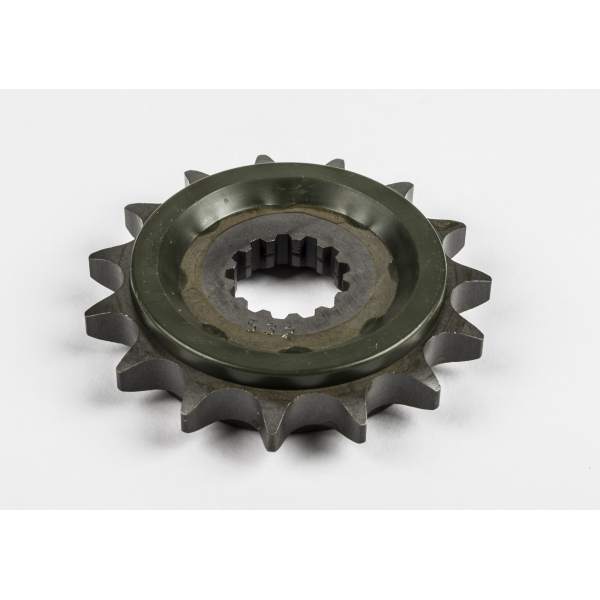

SPROCKET, ENGINE (NT:15)

27510-48B00-000 2751048B00000

Not available

DISCONTINUE
SPACER (25X34X19.7)

09180-25093-000 0918025093000

Not available

NUT

09159-20004-000 0915920004000

$23,98

Unit Price

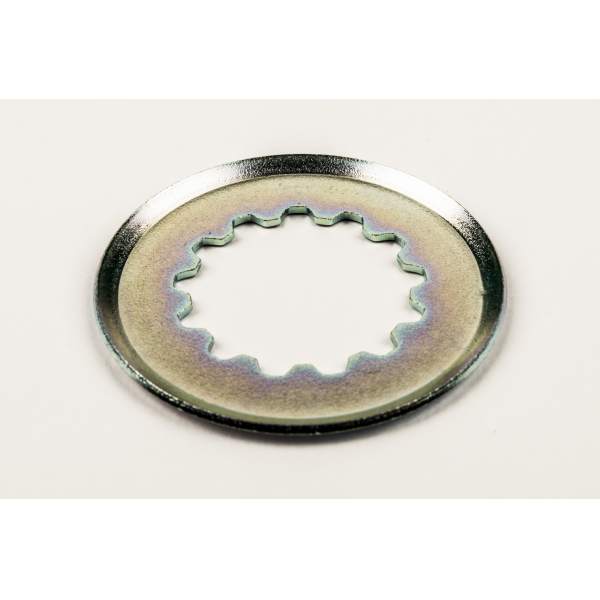

WASHER, LOCK

09167-25019-000 0916725019000

$3,35

Unit Price

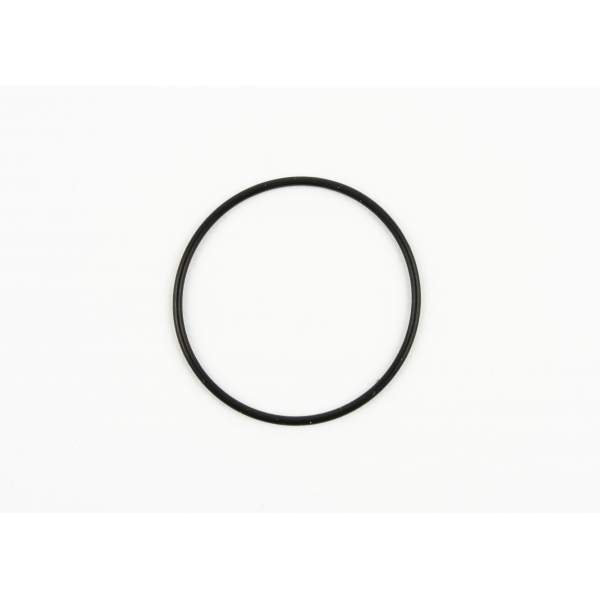

DR SFT BRG O RING
O RING (D:1, ID:24.5)

09280-25001-000 0928025001000

$3,97

Unit Price

DISCONTINUE

27600-48B10-118

Not available

CHAIN, DRIVE (DID532X122LE)

27600-48B10-122 2760048B10122

Not available
