INDICATORS

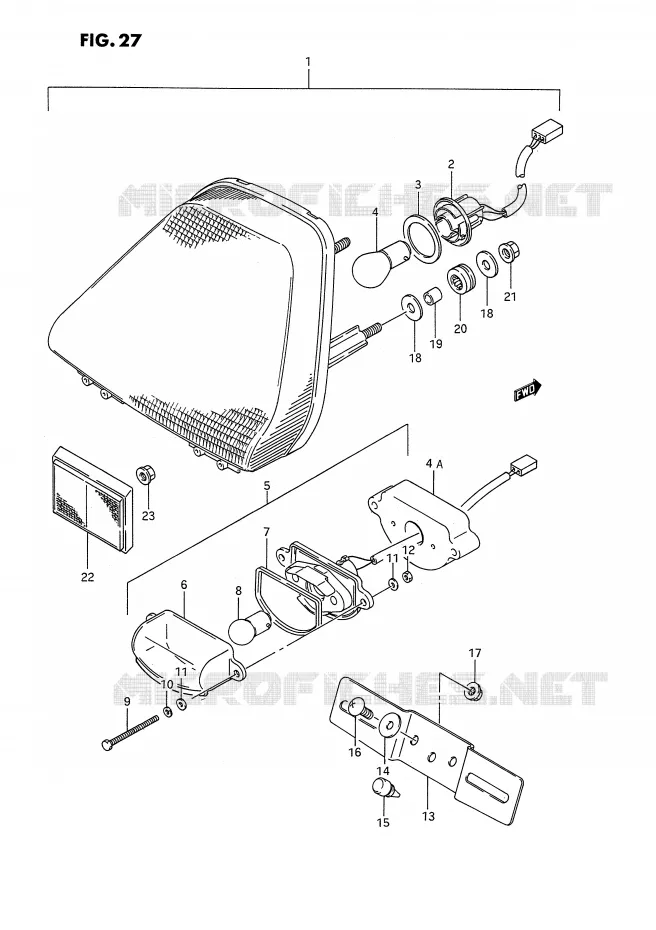

TAIL LIGHT FOR SUZUKI GSX-F 1100 1991

WIRING HARNESS (MODEL J / K / L / M / N / P) REFER TO FIG.28A(E-11) FOR MODEL R

Item numbers
TAIL LIGHT Suzuki MOTO 1100 GSX-F 1991 GSX1100FM(E2)
2
1
LAMP ASSY, REAR COMBINATION

35710-48B21-000   3571048B21000

3571048B21000
Not available
1
LAMP ASSY, REAR COMBINATION

35710-48C20-000   3571048C20000

3571048C20000
Not available
2
DISCONTINUE
SOCKET

35718-48B20-000   3571848B20000

3571848B20000
Not available
3
DISCONTINUE<br />RUBBER
DISCONTINUE
RUBBER

35764-48B20-000   3576448B20000

3576448B20000
Not available
4
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

4A
SPACER, LICENSE LAMP

35766-48C20-000   3576648C20000

3576648C20000
Not available
5
LAMP ASSY, LICENSE

35910-48B20-000   3591048B20000

3591048B20000
Not available
5
LAMP ASSY, LICENSE

35910-48C20-000   3591048C20000

3591048C20000
Not available
6
DISCONTINUE

35912-00A20-000  

3591200A20000
Not available
7
GASKET

35913-04A00-000   3591304A00000

3591304A00000
Not available
8
09471-12140
..BULB (12V, 5W)

09471-12059-000  

0947112059000
Not available
9
BOLT

01104-04256-000   0110404256000

0110404256000
Not available
9
BOLT

01104-04456-000   0110404456000

0110404456000
Not available
10
WASHER, LOCK

08321-21047-000  

08321-0104A-000
 0832121047000

Unit Price

11
WASHER

08322-21047-000  

08322-01047-000
 0832221047000

Unit Price

12
NUT

08310-22048-000  

08310-00047-000
 0831022048000

Unit Price

13
PLATE,RR LICENSE<br />BRACKET, LICENSE PLATE
PLATE, RR LICENSE
BRACKET, LICENSE PLATE

35927-44110-000   3592744110000

3592744110000

Unit Price

14
WASHER (6.5X20X1.6)
WASHER (6.5X20X1.6)

09160-06066-000   0916006066000

0916006066000

Unit Price

15
CUSHION
CUSHION

09321-06023-000   0932106023000

0932106023000

Unit Price

16
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

17
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

18
WASHER 6.5X10X1.2

09160-06086-000  

09160-06077-000
 0916006086000

Unit Price

19
SPACER, 6.5X10X7

09180-06011-000  

09180-06283-000
 0918006011000

Unit Price

20
RR COMB LAMP CUSHION<br />CUSHION
RR COMB LAMP CUSHION
CUSHION

09320-09009-000   0932009009000

0932009009000

Unit Price

21
NUT 6MM

08316-16066-000  

08319-31067-000
 0831616066000

Unit Price

22
REFLEX REFLECTOR, REAR

35970-48B00-000   3597048B00000

3597048B00000
Not available
23
NUT

08316-16056-000  

08316-16053-000
 0831616056000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
