Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SEAT

REAR FAIRING - SEAT COWL (MODEL J) FOR SUZUKI GSX-F 1100 1992

REAR FAIRING - SEAT COWL (MODEL K) REFER TO FIG.36B(F-13) FOR MODEL L

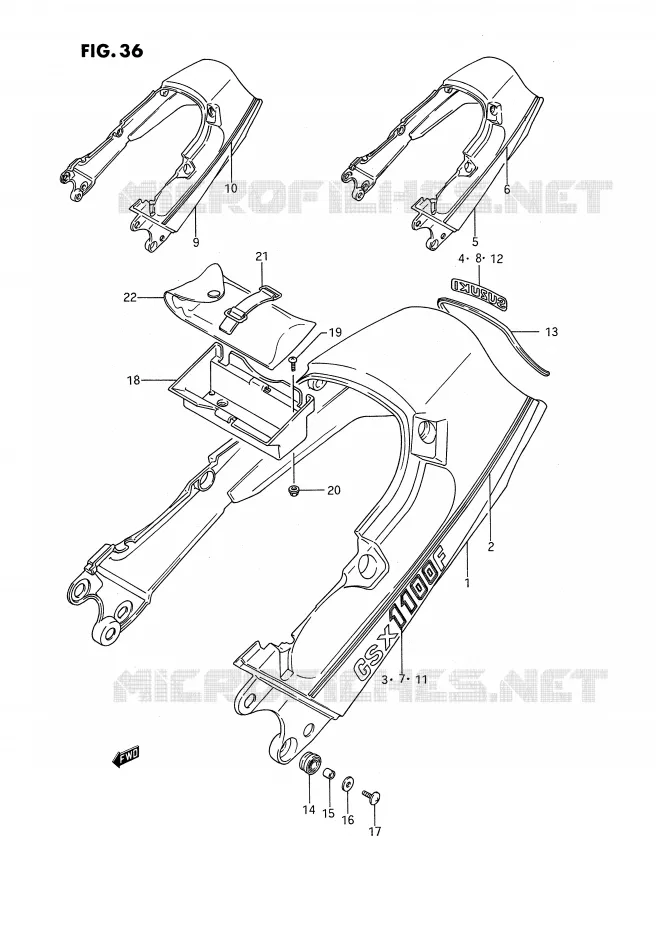

REAR FAIRING - SEAT COWL (MODEL J) Suzuki MOTO 1100 GSX-F 1992 GSX1100FN(E2)
1
COVER, SEAT TAIL (MAROON)

45500-48B00-24D   4550048B0024D

4550048B0024D
Not available
1
COVER, SEAT TAIL (BLUE)

45500-48B00-24V   4550048B0024V

4550048B0024V
Not available
1
COVER, SEAT TAIL (BLUE)

45500-48B10-24V   4550048B1024V

4550048B1024V
Not available
2
.TAPE SET, SEAT TAIL COVER

68160-48B00-8RZ   6816048B008RZ

6816048B008RZ
Not available
2
.TAPE SET, SEAT TAIL COVER

68160-48B00-9YN   6816048B009YN

6816048B009YN
Not available
3
EMBLEM, SIDE

68161-48B00-2CE   6816148B002CE

6816148B002CE
Not available
3
EMBLEM, SIDE

68161-48B00-9YP   6816148B009YP

6816148B009YP
Not available
4
DISCONTINUE

68271-34A00-05F  

6827134A0005F
Not available
4
DISCONTINUE

68271-34A00-764  

6827134A00764
Not available
5
COVER, SEAT TAIL

45500-48B20-9RD   4550048B209RD

4550048B209RD
Not available
6
TAPE SET, SEAT TAIL COVER

68160-48B10-9RL   6816048B109RL

6816048B109RL
Not available
7
EMBLEM, SIDE

68161-48B00-2CG   6816148B002CG

6816148B002CG
Not available
8
DISCONTINUE

68271-34A00-764  

6827134A00764
Not available
9
COVER, SEAT TAIL

45500-48B30-9WV   4550048B309WV

4550048B309WV
Not available
10
TAPE SET, SEAT TAIL COVER

68160-48B20-9YS   6816048B209YS

6816048B209YS
Not available
11
EMBLEM, SIDE

68161-48B00-8KE   6816148B008KE

6816148B008KE
Not available
12
EMBLEM, REAR

68271-34A00-22R   6827134A0022R

6827134A0022R
Not available
13
MOLDING

45564-48B00-000  

4556448B00000
Not available
14
DISCONTINUE
CUSHION, SIDE

47161-48B10-000   4716148B10000

4716148B10000
Not available
15
SPACER

09180-06193-000  

09180-06318-000
 0918006193000

Unit Price

16
WASHER

09160-06039-000  

09160-06109-000
 0916006039000

Unit Price

17
SCREW

02142-06205-000  

02142-0620B-000
 0214206205000

Unit Price

18
HOLDER, TOOL

47431-48B10-000   4743148B10000

4743148B10000
Not available
19
..SCREW 4X12

02142-04125-000   0214204125000

0214204125000
Not available
20
NUT

08316-26046-000   0831626046000

0831626046000
Not available
21
BAND
BAND

09462-00072-000  

09462-00094-000
 0946200072000

Unit Price

22
09800-21011

09800-00351-000  

0980000351000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1100 GSX-F 1992
