FAIRING (MODEL M)

FAIRING (MODEL N / P) FOR SUZUKI GSX-F 1100 1992

WINDSCREEN

Item numbers

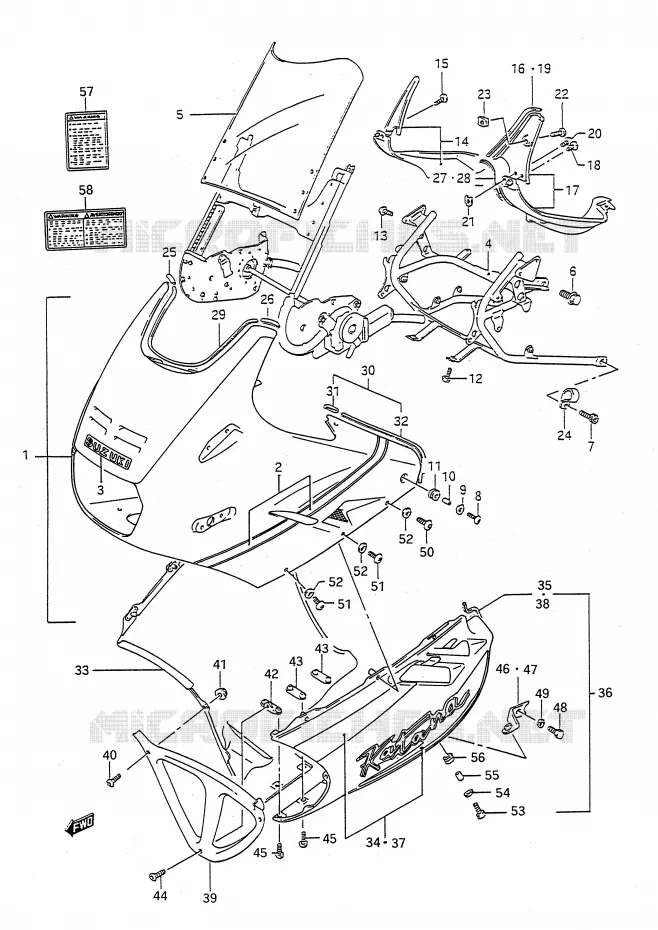

FAIRING (MODEL N/P) Suzuki MOTO 1100 GSX-F 1992 GSX1100FN(E28)
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
23
25
26
27
28
29
30
31
32
33
33
34
34
35
36
36
37
37
38
39
40
41
42
43
43
44
45
45
46
47
48
49
50
51
51
52
52
52
53
54
55
56
57
57
58
1
BODY ASSY, COWLING (PURPLE/SILVER)

94400-49C00-K31   9440049C00K31

9440049C00K31
Not available
1
BODY ASSY, COWLING (MAROON/RED)

94400-49C00-K32   9440049C00K32

9440049C00K32
Not available
2
TAPE, RH

68685-48C10-L21   6868548C10L21

6868548C10L21
Not available
2
TAPE, RH

68685-48C10-L22   6868548C10L22

6868548C10L22
Not available
2
TAPE, LH

68695-48C10-L21   6869548C10L21

6869548C10L21
Not available
2
TYPE, LH

68695-48C10-L22   6869548C10L22

6869548C10L22
Not available
3
EMBLEM, RR COMBN LAMP
EMBLEM

68166-31300-17U  

681663130017U
Not available
4
DISCONTINUE

94510-48B11-000  

9451048B11000
Not available
5
WIND SCREEN

94611-48B40-000   9461148B40000

9461148B40000
Not available
6
DISCONTINUE
BOLT, BRACE FRONT

09103-10195-000   0910310195000

0910310195000
Not available
7
BOLT

07110-08165-000  

07130-0816A-000
 0711008165000

Unit Price

8
SCREW,6X20<br />SCREW, BODY REAR
SCREW, 6X20
SCREW, BODY REAR

09139-06028-000   0913906028000

0913906028000

Unit Price

9
CHAIN CASE RR WASHER<br />WASHER
CHAIN CASE RR WASHER
WASHER

09160-06056-000   0916006056000

0916006056000

Unit Price

10
SPACER 6.5 X 9 X 8.5

09180-06152-000  

09180-06262-000
 0918006152000

Unit Price

11
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

12
SCREW<br />SCREW, LOWER
SCREW
SCREW, LOWER

09139-06030-000   0913906030000

0913906030000

Unit Price

13
SCREW 6X12<br />SCREW, SET
SCREW 6X12
SCREW, SET

02142-06127-000   0214206127000

0214206127000

Unit Price

14
DISCONTINUE
PANEL ASSY, RH (BLACK)

94700-48B10-291   9470048B10291

9470048B10291
Not available
15
SCREW

02142-05084-000  

02142-05083-000
 0214205084000

Unit Price

16
MOLDING

94419-48B10-000  

9441948B10000
Not available
17
DISCONTINUE
PANEL ASSY, LH (BLACK)

94800-48B10-291   9480048B10291

9480048B10291
Not available
18
SCREW

02142-05084-000  

02142-05083-000
 0214205084000

Unit Price

19
MOLDING

94419-48B10-000  

9441948B10000
Not available
20
SCREW

02142-05124-000  

02142-0512A-000
 0214205124000

Unit Price

21
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

22
SCREW

03242-05124-000  

03241-0512A-000
 0324205124000

Unit Price

23
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

24
CLAMP

09403-18406-000   0940318406000

0940318406000
Not available
25
DISCONTINUE
CAP, RH

94426-48B10-000   9442648B10000

9442648B10000
Not available
26
DISCONTINUE
CAP, LH

94427-48B10-000   9442748B10000

9442748B10000
Not available
27
DISCONTINUE
MOLDING, PANEL RH

94591-48B10-000   9459148B10000

9459148B10000
Not available
28
MOLDIMG. PANEL LH

94592-48B10-000   9459248B10000

9459248B10000
Not available
29
MOLDING

94419-48B00-000  

9441948B00000
Not available
30
DISCONTINUE
MOLDING, SIDE

94439-48B00-000   9443948B00000

9443948B00000
Not available
31
DISCONTINUE
COVER

94651-48B00-000   9465148B00000

9465148B00000
Not available
32
DISCONTINUE
MOLDING (L:325)

94479-48B00-000   9447948B00000

9447948B00000
Not available
33
COVER ASSY, LOWER RH (SILVER)

97600-49C80-16B   9760049C8016B

9760049C8016B
Not available
33
COVER ASSY, LOWER RH (RED)

97600-49C80-19A   9760049C8019A

9760049C8019A
Not available
34
TAPE SET, RH

68680-48C10-A6W   6868048C10A6W

6868048C10A6W
Not available
34
TAPE SET, RH

68680-48C10-L27   6868048C10L27

6868048C10L27
Not available
35
DISCONTINUE

94479-48B10-000  

9447948B10000
Not available
36
COVER ASSY, LOWER LH (SILVER)

97700-49C80-16B   9770049C8016B

9770049C8016B
Not available
36
COVER ASSY, LOWER LH (RED)

97700-49C80-19A   9770049C8019A

9770049C8019A
Not available
37
TAPE SET

68690-48C10-A6W   6869048C10A6W

6869048C10A6W
Not available
37
TAPE SET, LH

68690-48C10-L27   6869048C10L27

6869048C10L27
Not available
38
DISCONTINUE

94479-48B10-000  

9447948B10000
Not available
39
DISCONTINUE

94475-48B01-000  

9447548B01000
Not available
40
SCREW 5X14<br />SCREW
SCREW 5X14
SCREW

09139-05025-000   0913905025000

0913905025000

Unit Price

41
NUT

08316-26055-000  

08316-2005A-000
 0831626055000

Unit Price

42
DISCONTINUE<br />BRACE, LOWER
DISCONTINUE
BRACE, LOWER

94490-06B00-000   9449006B00000

9449006B00000
Not available
43
DISCONTINUE<br />BRACE, LOWER REAR
DISCONTINUE
BRACE, LOWER REAR

94493-06B00-000   9449306B00000

9449306B00000
Not available
44
SCREW 6X12<br />SCREW, FRONT
SCREW 6X12
SCREW, FRONT

09139-06027-000   0913906027000

0913906027000

Unit Price

45
SCREW<br />SCREW, R & L
SCREW
SCREW, R & L

09139-06039-000   0913906039000

0913906039000

Unit Price

46
DISCONTINUE
BRACE, LOWER RH

94580-48B11-000   9458048B11000

9458048B11000
Not available
47
DISCONTINUE
BRACE, LOWER LH

94590-48B11-000   9459048B11000

9459048B11000
Not available
48
BOLT

01107-08127-000  

01500-08127-000
 0110708127000

Unit Price

49
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

50
SCREW,6X20<br />SCREW, UPPER REAR
SCREW, 6X20
SCREW, UPPER REAR

09139-06028-000   0913906028000

0913906028000

Unit Price

51
SCREW
SCREW

09139-06030-000   0913906030000

0913906030000

Unit Price

52
WASHER

09161-07005-000  

09161-07006-000
 0916107005000

Unit Price

53
SCREW,6X20<br />SCREW
SCREW, 6X20
SCREW

09139-06028-000   0913906028000

0913906028000

Unit Price

54
CHAIN CASE RR WASHER<br />WASHER
CHAIN CASE RR WASHER
WASHER

09160-06056-000   0916006056000

0916006056000

Unit Price

55
SPACER 6.4X9.2X12
SPACER

09180-06121-000   0918006121000

0918006121000

Unit Price

56
CUSHION
CUSHION

09320-09016-000   0932009016000

0932009016000

Unit Price

57
LABEL, WARNING, SCREEN

68612-48B00-000  

68922-14F01-000
 6861248B00000

Unit Price

57
LABEL, WARNING SCREEN

68612-48B10-000  

6861248B10000
Not available
58
LABEL, GENERAL WARNING

68319-40C10-000  

68319-33E11-000
 6831940C10000

Unit Price

59
LABEL, TIRE AIR PRESSURE

68332-48B50-000   6833248B50000

6833248B50000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1100 GSX-F 1992

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1100 GSX-F 1992

Choose your Suzuki 1100 1992 GSX-F model

1100 GSX-F 1992 GSX1100FN(E28)

Suzuki GSX-F

Displacement: 1100 cc
Year: 1992
Model code GSX1100FN(E28)
