Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL EVAP SYSTEM (E18,E39)

CLUTCH FOR SUZUKI GSX-G 1100 1992

TRANSMISSION

Item numbers

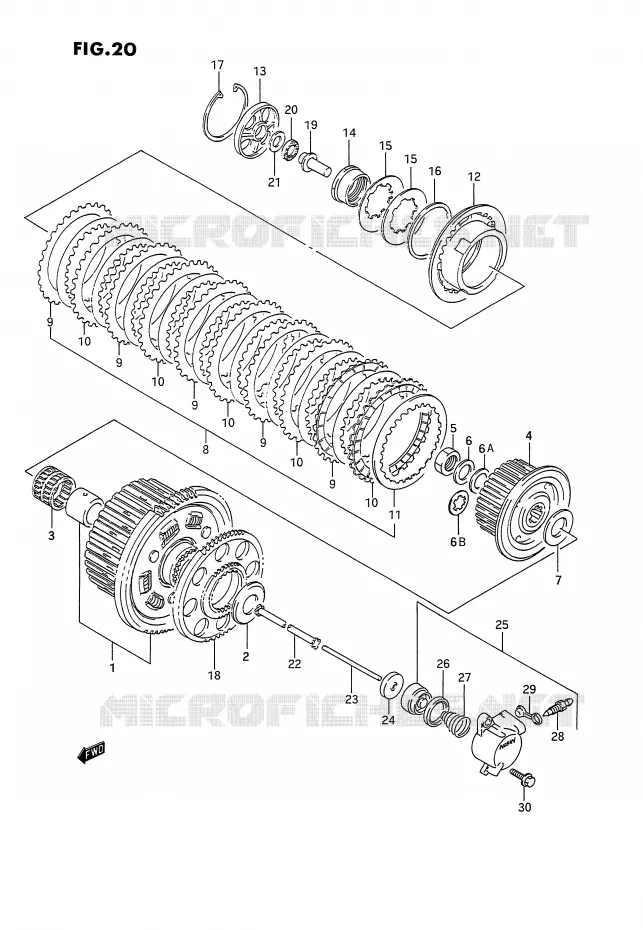

CLUTCH Suzuki MOTO 1100 GSX-G 1992 GSX1100GN(E2)
2
2
1
GEAR, PRIMARY DRIVEN (NT:74)

21200-26820-000   2120026820000

2120026820000
Not available
2
DISCONTINUE
WASHER

09160-25067-000  

0916025067000
Not available
3
ROLLER BEARING 35X40<br />BEARING
ROLLER BEARING 35X40
BEARING

09263-35017-000   0926335017000

0926335017000

Unit Price

4
DISCONTINUE<br />HUB, SLEEVE
DISCONTINUE
HUB, SLEEVE

21410-40C01-000   2141040C01000

2141040C01000
Not available
5
DISCONTINUE<br />NUT
DISCONTINUE
NUT

09140-24014-000   0914024014000

0914024014000
Not available
6
WASHER CL SLEEVE HUB<br />WASHER
WASHER CL SLEEVE HUB
WASHER

09164-24006-000   0916424006000

0916424006000

Unit Price

6A
SHIM(25X36X0.5)

08221-25365-000  

09181-25186-000
 0822125365000

Unit Price

6B
WASHER

09167-25024-000   0916725024000

0916725024000
Not available
7
WASHER SLEEVE HUB<br />WASHER (25X50X2.5)
WASHER SLEEVE HUB
WASHER (25X50X2.5)

09160-25056-000   0916025056000

0916025056000

Unit Price

8
PLATE, CLUTCH DRIVE

21400-26D00-000  

21441-06B01-000
 2140026D00000

Unit Price

9
PLATE, CLUTCH DRIVE
PLATE, DRIVE (T:2.6)

21441-06B01-000   2144106B01000

2144106B01000

Unit Price

10
PLATE,CLUTCH DRIVE NO.1<br />PLATE, DRIVE (T:2.6)
PLATE, CLUTCH DRIVE NO.1
PLATE, DRIVE (T:2.6)

21441-48B00-000   2144148B00000

2144148B00000

Unit Price

11
PLATE,CLUTCH DRIVEN<br />PLATE, DRIVEN (T:2)
PLATE, CLUTCH DRIVEN
PLATE, DRIVEN (T:2)

21451-48B00-000   2145148B00000

2145148B00000

Unit Price

12
DISCONTINUE<br />DISC, PRESSURE
DISCONTINUE
DISC, PRESSURE

21462-40C02-000   2146240C02000

2146240C02000
Not available
13
DISCONTINUE<br />LIFTER, CLUTCH PRESSURE DISK
DISCONTINUE
LIFTER, CLUTCH PRESSURE DISK

21463-40C01-000   2146340C01000

2146340C01000
Not available
14
DISCONTINUE<br />HOLDER, CLUTCH SPRING
DISCONTINUE
HOLDER, CLUTCH SPRING

21611-40C01-000   2161140C01000

2161140C01000
Not available
15
WASHER<br />SPRING
WASHER
SPRING

09164-47001-000   0916447001000

0916447001000

Unit Price

16
DISCONTINUE<br />SEAT, CLUTCH SPRING
DISCONTINUE
SEAT, CLUTCH SPRING

21623-40C00-000   2162340C00000

2162340C00000
Not available
17
CIRCLIP

09381-84002-000  

09381-84003-000
 0938184002000

Unit Price

18
DISCONTINUE
GEAR, ALTERNATOR DRIVE (NT:37/69)

22721-26D01-000   2272126D01000

2272126D01000
Not available
19
PIECE, CLUTCH PUSH

23121-07A00-000  

23121-31E00-000
 2312107A00000

Unit Price

20
BEARING(15X28X2)<br />BEARING
BEARING(15X28X2)
BEARING

09263-15003-000   0926315003000

0926315003000

Unit Price

21
WASHER<br />WASHER (15.5X28X1)
WASHER
WASHER (15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

22
ROD,CLUTCH PUSH,R<br />ROD, PUSH RH
ROD, CLUTCH PUSH, R
ROD, PUSH RH

23110-38B00-000   2311038B00000

2311038B00000

Unit Price

23
ROD,CLUTCH PUSH LH<br />ROD, PUSH LH (L:132.5)
ROD, CLUTCH PUSH LH
ROD, PUSH LH (L:132.5)

23111-26D00-000   2311126D00000

2311126D00000

Unit Price

24
SEAL,OIL 6X34X5.5<br />OIL SEAL
SEAL, OIL 6X34X5.5
OIL SEAL

09285-06015-000   0928506015000

0928506015000

Unit Price

25
DISCONTINUE

23160-26D00-000  

2316026D00000
Not available
26
CUP
CUP

23163-06B00-000   2316306B00000

2316306B00000

Unit Price

27
SPRING,CLUTCH CYLINDER<br />SPRING
SPRING, CLUTCH CYLINDER
SPRING

23164-05A00-000   2316405A00000

2316405A00000

Unit Price

28
BLEEDER
BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

29
CAP, BLEEDER
CAP, BLEEDER

59122-01A00-000   5912201A00000

5912201A00000

Unit Price

30
BOLT

01550-08253-000  

01550-0825A-000
 0155008253000

Unit Price

30
BOLT
BOLT

01550-08257-000   0155008257000

0155008257000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of GSX-G. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GSX-G 1992
