TAIL LIGHT

WIRING HARNESS FOR SUZUKI GSX-G 1100 1992

SWITCHES

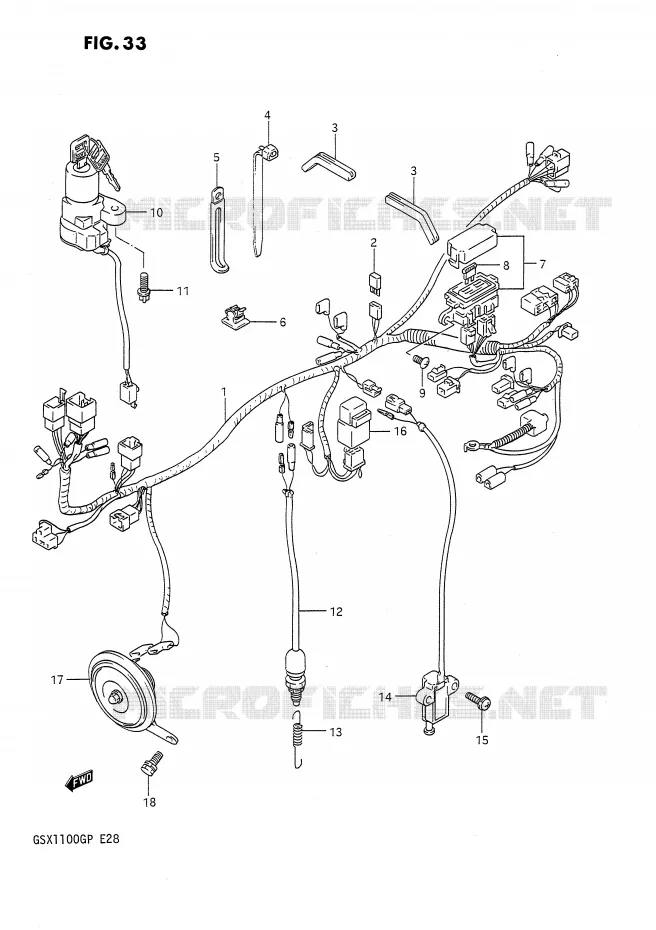

WIRING HARNESS Suzuki MOTO 1100 GSX-G 1992 GSX1100GN(E28)

1

36610-26D31
HARNESS, WIRING

36610-26D30-000 3661026D30000

Not available

1

DISCONTINUE
HARNESS, WIRING

36610-26D31-000 3661026D31000

Not available

2

DIODE

36611-38A00-000

36611-38A10-000

$19,97

Unit Price

3

PROTECTOR

36920-26D00-000 3692026D00000

Not available

4

CLAMP (L:97)

09404-06405-000 0940406405000

Not available

4

09404-08207
CLAMP, DRAIN TUBE

09404-08404-000

Not available

5

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

5

CLAMP, WIRING HARNESS
CLAMP

09407-18402-000 0940718402000

$3,97

Unit Price

5

DISCONTINUE
CLAMP

09407-22404-000 0940722404000

Not available

6

DISCONTINUE
CLIP

09408-00098-000 0940800098000

Not available

7

DISCONTINUE

36740-34C01-000

Not available

8

FUSE (10A)

09481-10101-000 0948110101000

$2,97

Unit Price

8

FUSE, A/C 25A

09481-25101-000

09481-25103-000

$4,97

Unit Price

9

SCREW

02142-06126-000

02142-0612B-000

$2,97

Unit Price

10

37100-26D04

37100-26D00-000

Not available

11

SCREW(6X18)
BOLT

09139-06026-000 0913906026000

$3,97

Unit Price

12

SWITCH ASSY, STOP LAMP

37740-04A10-000 3774004A10000

$33,97

Unit Price

13

BRAKE SWITCH SPRING
SPRING

09443-06012-000 0944306012000

$5,97

Unit Price

14

37840-26X52

37840-06B11-000

Not available

15

SCREW

02112-36305-000 0211236305000

Not available

16

RELAY ASSY

38740-24B10-000

38740-24X50-000

$43,97

Unit Price

17

HORN ASSY

38500-26D00-000 3850026D00000

Not available

18

BOLT

01134-06125-000

01570-06123-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of GSX-G. Let us know if you have any questions.
