DRIVESHAFT (MODEL M)

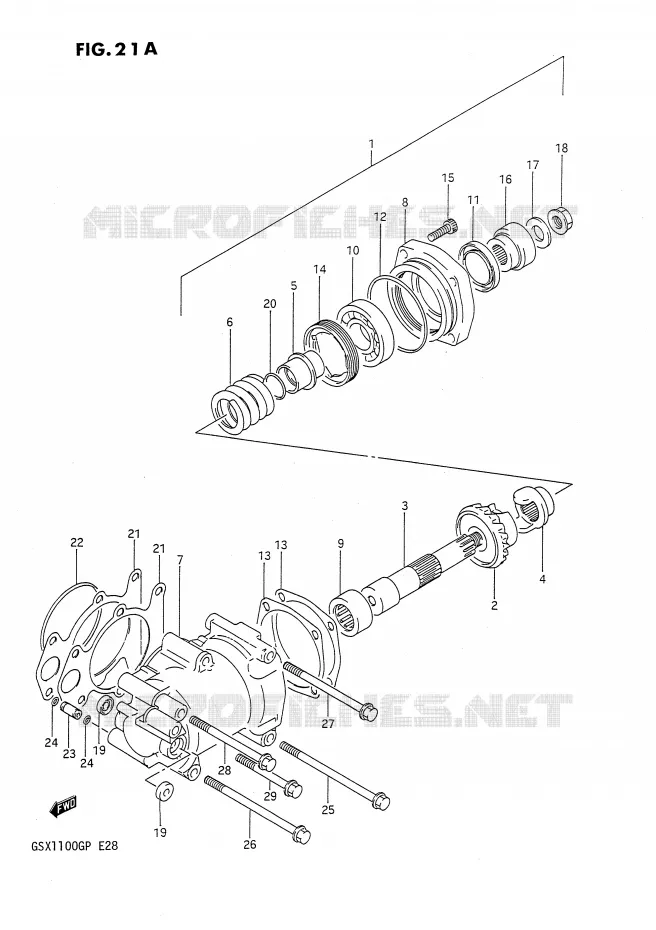

DRIVESHAFT (MODEL N / P) FOR SUZUKI GSX-G 1100 1993

GEAR SHIFTING ASSY

DISCONTINUE
GEAR & CASE SET, SECONDARY BEVEL

24900-26822-000 2490026822000

Not available

DISCONTINUE
GEAR, SECONDARY DRIVEN

24920-26D00-000 2492026D00000

Not available

DISCONTINUE
SHAFT, SECONDARY DRIVEN

24961-26D10-000 2496126D10000

Not available

DISCONTINUE
DOG, OUTPUT CAM

24923-26D00-000 2492326D00000

Not available

STOPPER, SPRING

24924-26D10-000 2492426D10000

Not available

SPRING

09440-49003-000 0944049003000

Not available

CASE

24930-26D01-000 2493026D01000

Not available

HOUSING, BEARING

24941-26D00-000 2494126D00000

Not available

BEARING
BEARING, FR

09263-32012-000 0926332012000

$123,97

Unit Price

BALL BEARING
BEARING, RR

09262-28014-000 0926228014000

$78,97

Unit Price

OIL SEAL
OIL SEAL (38X54X6)

09283-38011-000 0928338011000

$25,97

Unit Price

O RING
O RING (D:3.7, ID:76.5)

09280-78003-000 0928078003000

$10,97

Unit Price

SHIM (T:0.30)

24945-26D00-030 2494526D00030

Not available

SHIM (T:0.35)

24945-26D00-035 2494526D00035

Not available

SHIM (T:0.40)

24945-26D00-040 2494526D00040

Not available

SHIM (T:0.50)

24945-26D00-050 2494526D00050

Not available

SHIM (T:0.60)

24945-26D00-060 2494526D00060

Not available

STOPPER, SEC DRIVEN BEARING
STOPPER, BEARING

24942-26D00-000 2494226D00000

$69,97

Unit Price

BOLT

07110-08256-000

07130-0825B-000

$5,97

Unit Price

COUPLING, SECONDARY DRIVEN

24943-26D00-000 2494326D00000

Not available

WASHER (16.5X36X4)

09160-16040-000 0916016040000

$15,97

Unit Price

NUT

09159-14023-000 0915914023000

Not available

SEAL, OIL(6X18X5)
SEAL, PUSH ROD

09283-06005-000 0928306005000

$17,97

Unit Price

O RING

09280-22018-000 0928022018000

Not available

SHIM (T:0.40)

24935-26D00-040 2493526D00040

Not available

SHIM (T:0.45)

24935-26D00-045 2493526D00045

Not available

SHIM (T:0.50)

24935-26D00-050 2493526D00050

Not available

SHIM (T:0.55)

24935-26D00-055 2493526D00055

Not available

SHIM (T:0.60)

24935-26D00-060 2493526D00060

Not available

SHIM (T:0.65)

24935-26D00-065 2493526D00065

Not available

SHIM (T:0.70)

24935-26D00-070 2493526D00070

Not available

SHIM (T:0.75)

24935-26D00-075 2493526D00075

Not available

SHIM (T:0.80)

24935-26D00-080 2493526D00080

Not available

O RING

09280-88002-000 0928088002000

Not available

PIPE, SECONDARY, OIL
OIL PIPE, SECONDARY GEAR CASE

24940-26D00-000 2494026D00000

$18,97

Unit Price

O-RING, BELT LUBE
O RING (D:1.7, ID:6)

09280-06008-000 0928006008000

$3,97

Unit Price

BOLT (8X125)

09103-08306-000 0910308306000

Not available

BOLT, ENG MOUNT
BOLT (8X120)

09103-08109-000 0910308109000

$4,97

Unit Price

DISCONTINUE
BOLT (8X105)

09103-08165-000 0910308165000

Not available

BOLT

01517-08958-000

01550-08957-000

$7,97

Unit Price

BOLT

01517-08708-000

01550-08707-000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT (MODEL N/P) of your Suzuki of GSX-G. Let us know if you have any questions.
