SEAT (MODEL G / H) REFER TO FIG.36A (G-13) FOR MODEL J

SEAT (MODEL J) FOR SUZUKI GSX-R 1100 1987

REAR FAIRING - SEAT COWL (MODEL G / H) REFER TO FIG.37A (H-4) FOR MODEL J

SEAT ASSY (RED)

45100-06B01-4VP 4510006B014VP

Not available

DISCONTINUE
SEAT ASSY (BLACK)

45100-06B01-58R 4510006B0158R

Not available

SEAT ASSY (BLUE)

45100-06B01-5NN 4510006B015NN

Not available

DISCONTINUED

45100-06B11-4VP 4510006B114VP

Not available

DISCONTINUE

45100-06B11-58R

Not available

STRIKER, SEAT LOCK

45210-06B00-000 4521006B00000

Not available

BRACKET, SEAT SIDE

45230-06B00-000 4523006B00000

Not available

CUSHION

45215-06B00-000

45215-06B01-000

$8,97

Unit Price

SPACER

45216-06B00-000 4521606B00000

$6,97

Unit Price

WASHER(6.5X20X1.6)

09160-06020-000

09160-06066-000

$3,97

Unit Price

NUT 6MM

08316-16066-000

08319-31067-000

$3,97

Unit Price

CUSHION
CUSHION, BOSS

45213-31300-000 4521331300000

$5,97

Unit Price

SEAT CUSHION
CUSHION

09321-08009-000 0932108009000

$4,97

Unit Price

DISCONTINUE
CUSHION, BATTERY STOPPER

45255-27A00-000 4525527A00000

Not available

BAND, SEAT GRIP (RED)

45180-06B00-4VP 4518006B004VP

Not available

BAND, SEAT GRIP (BLACK)

45180-06B00-58R 4518006B0058R

Not available

BAND, SEAT GRIP (BLUE)

45180-06B00-5NN 4518006B005NN

Not available

DISCONTINUE
BOLT

45186-06B00-000 4518606B00000

Not available

CLIP

09385-06001-000

Not available

LOCK ASSY, SEAT STRIKER
BRACKET, SEAT SUPPORT FRONT

45220-13601-000 4522013601000

$104,97

Unit Price

SCREW

02112-06305-000

02112-0630B-000

$3,97

Unit Price

NUT

08316-26065-000

08316-10067-000

$3,97

Unit Price

BRACKET, SEAT SUPPORT REAR

45220-06B00-000 4522006B00000

Not available

SCREW

02122-06255-000

02122-0625B-000

$3,97

Unit Price

NUT

08316-26065-000

08316-10067-000

$3,97

Unit Price

DISCONTINUED

45550-06862-13Z 455500686213Z

Not available

BOX SET, SEAT TAIL (BLACK/RED)

45550-06870-9HD 45550068709HD

Not available

BOX SET, SEAT TAIL (WHITE/BLUE)

45550-06870-9SR 45550068709SR

Not available

DISCONTINUE

46220-27A01-4VP

Not available

22A

SCREW

02142-06205-000

02142-0620B-000

$2,97

Unit Price

TAPE SET (BLACK)

68650-06B10-13Z 6865006B1013Z

Not available

TAPE SET (WHITE)

68650-06B10-22R 6865006B1022R

Not available

WASHER

09160-06039-000

09160-06109-000

$3,97

Unit Price

DISCONTINUE
BOLT

45186-06B00-000 4518606B00000

Not available

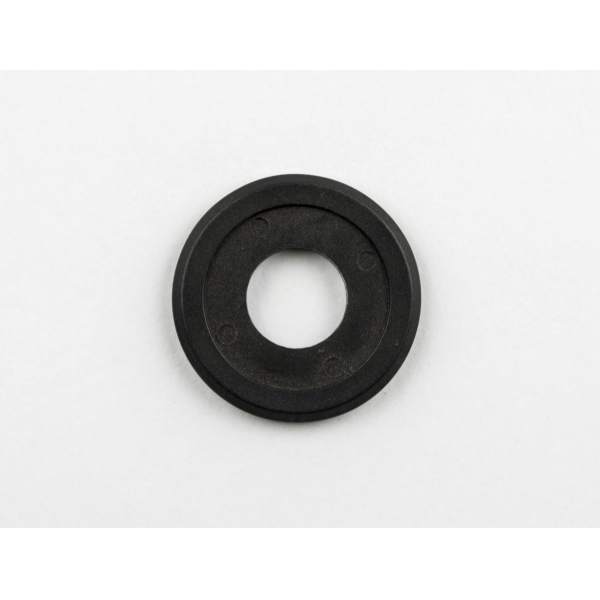

WASHER

09161-10010-000 0916110010000

Not available

CLIP

09385-06001-000

Not available

DISCONTINUE
CAP

45581-27A00-000 4558127A00000

Not available

DISCONTINUE

46210-27A01-000

Not available

DISCONTINUE
PLATE, RH

46240-27A00-000 4624027A00000

Not available

PLATE, LH

46250-27A00-000 4625027A00000

Not available

BOLT

07120-06168-000

07120-06167-000

$4,97

Unit Price

BOLT

07120-08605-000

07120-0860B-000

$6,97

Unit Price

SPACER, 8.5X14X21.5

09180-08125-000

09180-08205-000

$12,97

Unit Price

CAP, MUF SPRT BOLT

09250-06008-000

09250-06016-000

$3,97

Unit Price

LOCK ASSY, SEAT & HELMET

95700-27A00-KEY 9570027A00KEY

Not available

BOLT

07120-06205-000

07120-0620B-000

$5,97

Unit Price

BRACKET, SEAT LOCK

45285-27A00-000 4528527A00000

Not available

SCREW

02142-06125-000

02142-0612B-000

$2,97

Unit Price

LABEL, ASBESTOS WARNING

11967-82000-000 1196782000000

Not available
