TIMING (MODEL D)

CARBURETOR (MODEL Z) FOR SUZUKI GSX 1100 1983

CARBURETOR (MODEL D)

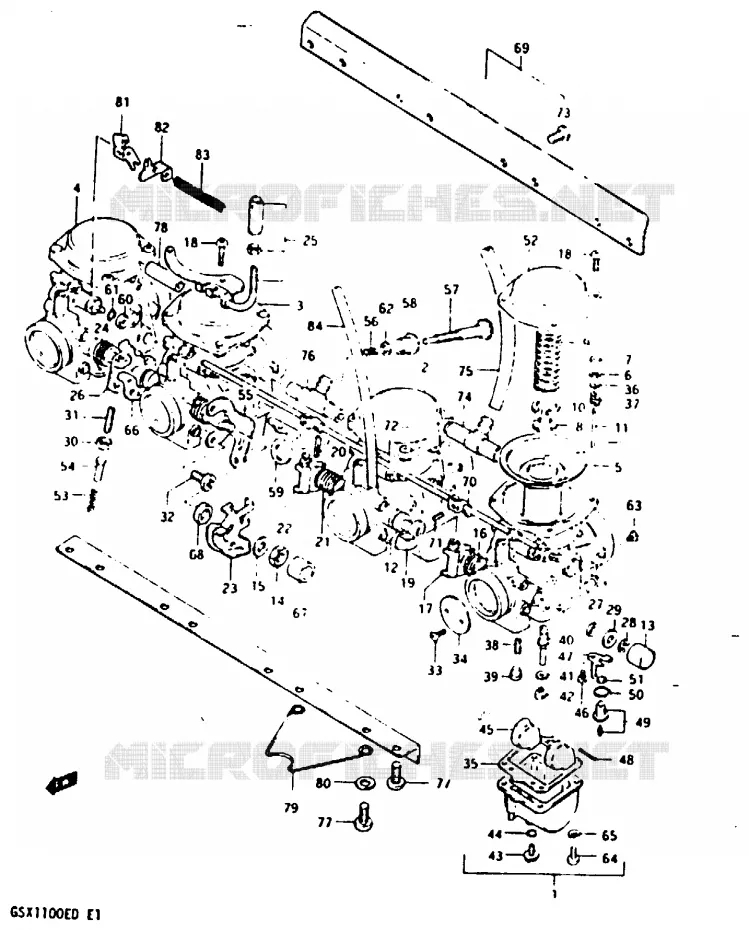

CARBURETOR (MODEL Z) Suzuki MOTO 1100 GSX 1983 GSX1100D(Z/D)
1
CARBURETOR (LH)

13201-49230-000   1320149230000

1320149230000
Not available
2
CARBURETOR (ML)

13202-49230-000   1320249230000

1320249230000
Not available
3
CARBURETOR (MR)

13203-49230-000   1320349230000

1320349230000
Not available
4
CARBURETOR (RH)

13204-49230-000   1320449230000

1320449230000
Not available
5
DISCONTINUE<br />DIAPHRAGM
DISCONTINUE
DIAPHRAGM

13500-49250-000  

1350049250000
Not available
6
CLIP,NEEDLE<br />E RING
CLIP, NEEDLE
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

7
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

8
DISCONTINUE<br />GUIDE HOLDER
DISCONTINUE
GUIDE HOLDER

13389-44030-000   1338944030000

1338944030000
Not available
9
DISCONTINUE
SPRING

13503-49200-000   1350349200000

1350349200000
Not available
10
DISCONTINUE<br />CLIP
DISCONTINUE
CLIP

13581-44030-000   1358144030000

1358144030000
Not available
11
DISCONTINUE<br />NEEDLE, JET (5D59-3)
DISCONTINUE
NEEDLE, JET (5D59-3)

13383-49210-000   1338349210000

1338349210000
Not available
12
GASKET
GASKET

13557-49200-000   1355749200000

1355749200000
Not available
13
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

14
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

15
WASHER

13606-47070-000   1360647070000

1360647070000
Not available
16
SPRING

13573-47070-000   1357347070000

1357347070000
Not available
17
SHAFT

13550-49200-000   1355049200000

1355049200000
Not available
18
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

19
SHAFT

13550-49210-000   1355049210000

1355049210000
Not available
20
PIN

13563-47070-000   1356347070000

1356347070000
Not available
21
..SPRING

13573-45110-000   1357345110000

1357345110000
Not available
22
LEVER

13553-47070-000   1355347070000

1355347070000
Not available
23
LEVER

13555-47070-000   1355547070000

1355547070000
Not available
24
SPRING

13573-47080-000   1357347080000

1357347080000
Not available
25
BRACKET

13621-49220-000   1362149220000

1362149220000
Not available
26
SHAFT

13550-49220-000   1355049220000

1355049220000
Not available
27
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

28
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

29
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

30
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

31
SCREW
SCREW

13605-47080-000   1360547080000

1360547080000

Unit Price

32
DISCONTINUED

13605-49200-000   1360549200000

1360549200000
Not available
33
SCREW
SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

34
VALVE, THROTTLE (135)

13551-49200-000   1355149200000

1355149200000
Not available
35
GASKET, FLOAT CHAMBER

13251-44080-000  

13251-44081-H17
 1325144080000

Unit Price

36
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

37
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

38
.JET, PILOT (47.5)

09492-47007-000   0949247007000

0949247007000
Not available
39
PLUG,NEEDLE JET<br />PLUG
PLUG, NEEDLE JET
PLUG

13357-44080-000   1335744080000

1335744080000

Unit Price

40
JET, NEEDLE (X-2)

09494-00342-000   0949400342000

0949400342000
Not available
41
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

42
JET, MAIN (107.5)
JET, MAIN (107.5)

09491-21014-000   0949121014000

0949121014000

Unit Price

43
PLUG,DRAIN<br />SCREW
PLUG, DRAIN
SCREW

13247-44080-000   1324744080000

1324744080000

Unit Price

44
GASKET<br />O RING
GASKET
O RING

13246-44080-000   1324644080000

1324644080000

Unit Price

45
FLOAT

13250-44080-000   1325044080000

1325044080000

Unit Price

46
SCREW

02112-04068-000  

02112-0406B-000
 0211204068000

Unit Price

47
PLATE,NEEDLE VALVE FITING<br />PLATE
PLATE, NEEDLE VALVE FITING
PLATE

13373-11400-000   1337311400000

1337311400000

Unit Price

48
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

49
.NEEDLE VALVE ASSY

13370-11400-000   1337011400000

1337011400000
Not available
50
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

51
.FILTER

13376-65010-000   1337665010000

1337665010000
Not available
52
DISCONTINUED

13502-49200-000   1350249200000

1350249200000
Not available
53
SPRING

13268-44010-000   1326844010000

1326844010000
Not available
54
PIN

13575-47070-000   1357547070000

1357547070000
Not available
55
BRACKET

13627-45110-000   1362745110000

1362745110000
Not available
56
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

57
DISCONTINUE
ADJUSTER

13267-47070-000   1326747070000

1326747070000
Not available
58
DISCONTINUE<br />BUSH
DISCONTINUE
BUSH

13276-31210-000   1327631210000

1327631210000
Not available
59
BRACKET

13627-44090-000   1362744090000

1362744090000
Not available
60
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

61
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

62
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

63
JET,GALLERY BAL****<br />JET, PILOT AIR (160)
JET, GALLERY BAL****
JET, PILOT AIR (160)

09493-32002-000   0949332002000

0949332002000

Unit Price

64
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

65
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

66
.SHAFT

13550-49230-000   1355049230000

1355049230000
Not available
67
.RING

13574-49200-000   1357449200000

1357449200000
Not available
68
DISCONTINUE
RING

13574-45120-000   1357445120000

1357445120000
Not available
69
FLANGE ASSY

13210-49220-000   1321049220000

1321049220000
Not available
70
LEVER
LEVER

13422-44080-000   1342244080000

1342244080000
Not available
71
DISCONTINUE
SCREW

13605-47070-000   1360547070000

1360547070000
Not available
72
SHAFT

13410-49220-000   1341049220000

1341049220000
Not available
73
SCREW

02142-05128-000  

02142-05127-000
 0214205128000

Unit Price

74
NIPPLE
NIPPLE

13685-49210-000   1368549210000

1368549210000

Unit Price

75
09354-65113-600
HOSE (6.5X10.5X400)

13683-49160-000  

1368349160000
Not available
76
DISCONTINUE<br />NIPPLE
DISCONTINUE
NIPPLE

13685-49200-000   1368549200000

1368549200000
Not available
77
.SCREW

02112-06168-000   0211206168000

0211206168000
Not available
78
NIPPLE

13685-47070-000   1368547070000

1368547070000

Unit Price

79
CLIP
CLIP

13619-49210-000   1361949210000

1361949210000
Not available
80
WASHER

13615-49210-000   1361549210000

1361549210000
Not available
81
LEVER

13413-49220-000   1341349220000

1341349220000
Not available
82
LEVER

13421-49220-000   1342149220000

1342149220000
Not available
83
SPRING

13437-49220-000   1343749220000

1343749220000
Not available
84
.HOSE (4.5X8X200)

13683-45110-000   1368345110000

1368345110000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL Z) of your Suzuki 1100 GSX of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 1100 GSX 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND for Suzuki GSX 1100 1983

STAND
for Suzuki GSX 1100 1983

FRONT FORK (GSX1100EZ) for Suzuki GSX 1100 1983

FRONT FORK (GSX1100EZ)
for Suzuki GSX 1100 1983

FRONT FORK (GSX1100ED/EXD) for Suzuki GSX 1100 1983

FRONT FORK (GSX1100ED / EXD)
for Suzuki GSX 1100 1983

FRONT FORK (GSX1100ESD) for Suzuki GSX 1100 1983

FRONT FORK (GSX1100ESD)
for Suzuki GSX 1100 1983

FRONT FORK (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

FRONT FORK (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100EZ) for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100EZ)
for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100ED/EXD) for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100ED / EXD)
for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100ESD) for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100ESD)
for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

STEERING COLUMN (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100EZ) for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100EZ)
for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100ED/EXD/ESD) for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100ED / EXD / ESD)
for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

FRONT WHEEL (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

HANDLEBAR for Suzuki GSX 1100 1983

HANDLEBAR
for Suzuki GSX 1100 1983

FRONT CALIPER for Suzuki GSX 1100 1983

FRONT CALIPER
for Suzuki GSX 1100 1983

FRONT MASTER CYLINDER (GSX1100EZ/EXD/ESD) for Suzuki GSX 1100 1983

FRONT MASTER CYLINDER (GSX1100EZ / EXD / ESD)
for Suzuki GSX 1100 1983

FRONT MASTER CYLINDER (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

FRONT MASTER CYLINDER (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

FRONT BRAKE HOSE (GSX1100EZ/ED/EXD/ESD) for Suzuki GSX 1100 1983

FRONT BRAKE HOSE (GSX1100EZ / ED / EXD / ESD)
for Suzuki GSX 1100 1983

FRONT BRAKE HOSE (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

FRONT BRAKE HOSE (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

SWINGARM (GSX1100EZ/ED/EXD/ESD) for Suzuki GSX 1100 1983

SWINGARM (GSX1100EZ / ED / EXD / ESD)
for Suzuki GSX 1100 1983

SWINGARM (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

SWINGARM (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

CHAIN GUARD REAR SHOCK ABSORBER (MODEL Z) for Suzuki GSX 1100 1983

CHAIN GUARD - REAR SHOCK ABSORBER (MODEL Z)
for Suzuki GSX 1100 1983

CHAIN GUARD REAR SHOCK ABSORBER (GSX1100ED/EXD,ESD) for Suzuki GSX 1100 1983

CHAIN GUARD - REAR SHOCK ABSORBER (GSX1100ED / EXD,ESD)
for Suzuki GSX 1100 1983

CHAIN GUARD REAR SHOCK ABSORBER (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

CHAIN GUARD - REAR SHOCK ABSORBER (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100EZ) for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100EZ)
for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100ED/EXD/ESD) for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100ED / EXD / ESD)
for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

REAR WHEEL (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

REAR CALIPERS for Suzuki GSX 1100 1983

REAR CALIPERS
for Suzuki GSX 1100 1983

REAR BRAKE HOSE (GSX1100EZ/ED/EXD/ESD) for Suzuki GSX 1100 1983

REAR BRAKE HOSE (GSX1100EZ / ED / EXD / ESD)
for Suzuki GSX 1100 1983

REAR BRAKE HOSE (GSX1100Z/D/XD) for Suzuki GSX 1100 1983

REAR BRAKE HOSE (GSX1100Z / D / XD)
for Suzuki GSX 1100 1983

REAR BRAKE MASTER CYLINDER for Suzuki GSX 1100 1983

REAR BRAKE MASTER CYLINDER
for Suzuki GSX 1100 1983

Suzuki 1100 GSX 1983

Select your Suzuki 1983 model

1100 GSX 1983 GSX1100D(Z/D)

1100 GSX

Suzuki GSX

Displacement: 1100 cc
Year: 1983
Model code GSX1100D(Z / D)

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
