FOOTREST (MODEL Z) MODEL D : FIG. 44 (G-6)

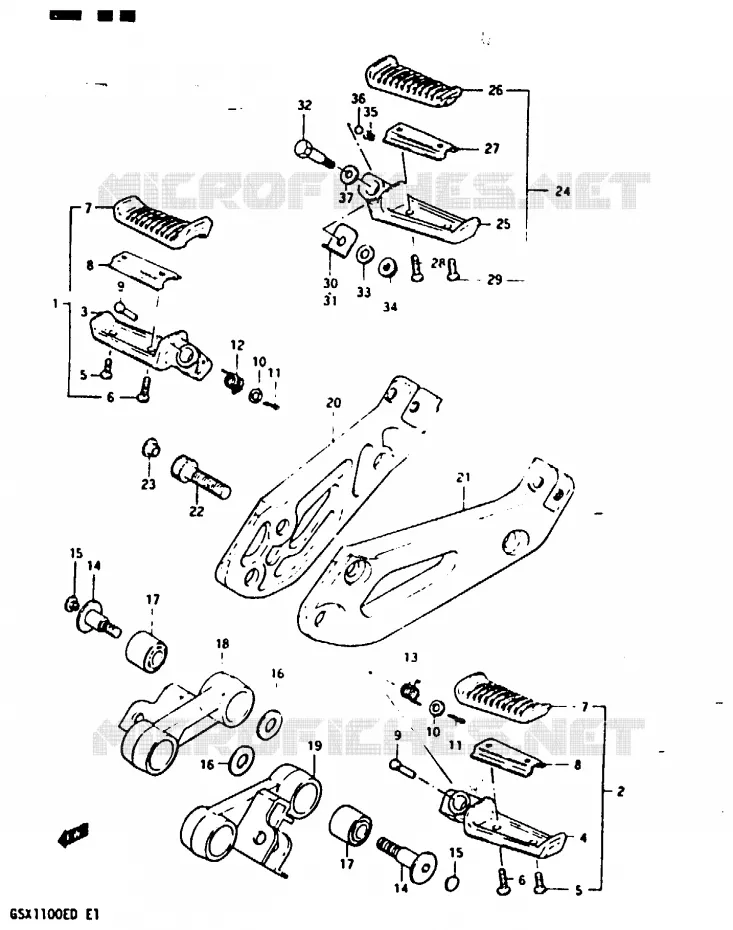

FOOTREST (MODEL D) FOR SUZUKI GSX 1100 1983

FUEL TANK (MODEL Z) FIG.47 (G-9) : GSX1100D/ED

DISCONTINUE

43501-33300-000

Not available

DISCONTINUE

43502-33300-000

Not available

.BAR, FRONT FOOTREST RH

43510-33300-000 4351033300000

Not available

.BAR, FRONT FOOTREST LH

43520-33300-000 4352033300000

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

DISCONTINUE
RUBBER, FRONT FOOTREST

43551-33300-000

Not available

.PLATE, FRONT FOOTREST RUBBER

43580-33300-000 4358033300000

Not available

DISCONTINUE
PIN

09200-08040-000 0920008040000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

04111-20208-000

04111-2020A-000

$1,97

Unit Price

SPRING, RH

09448-14029-000 0944814029000

Not available

DISCONTINUE

09448-14028-000

Not available

BOLT

09106-10010-000 0910610010000

Not available

CAP

43575-34500-000 4357534500000

$3,97

Unit Price

WASHER

09160-10058-000 0916010058000

Not available

SWINGING ARM RR BUSH
BUSH

09319-10008-000 0931910008000

$16,97

Unit Price

HOLDER, FOOTREST RH

43531-49520-000 4353149520000

Not available

HOLDER, FOOTREST LH

43541-49520-000 4354149520000

Not available

BRACKET, MUFFLER RH

43811-49510-000 4381149510000

Not available

BRACKET, MUFFLER LH

43821-49510-000 4382149510000

Not available

BOLT, RH

09106-10006-000 0910610006000

Not available

CAP

43575-34500-000 4357534500000

$3,97

Unit Price

FOOTREST ASSY, PILLION, R
FOOTREST ASSY, PILLION RH

43600-45501-000 4360045501000

$68,97

Unit Price

DISCONTINUE
FOOTREST ASSY, PILLION LH

43700-45501-000 4370045501000

Not available

BAR, PILLION FOOTREST RH

43610-45501-000 4361045501000

Not available

BAR, PILLION FOOTREST LH

43710-45501-000 4371045501000

Not available

DISCONTINUE
RUBBER, PILLION FOOTREST

43612-45500-000 4361245500000

Not available

.PLATE, RUBBER STOP

43632-45500-000 4363245500000

Not available

SCREW

02132-05127-000

02122-05127-000

$2,97

Unit Price

.SCREW

02132-05168-000 0213205168000

Not available

PLATE, SPRING STOP RH

43635-33300-000 4363533300000

Not available

PLATE, SPRING STOP LH

43735-33300-000 4373533300000

Not available

BOLT

09111-06035-000 0911106035000

Not available

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

.NUT

08319-31068-000 0831931068000

Not available

SPRING, STAND GRIP
SPRING

09440-05003-000 0944005003000

$2,97

Unit Price

STEEL BALL 7/32
STEEL BALL

06111-07004-000 0611107004000

$1,97

Unit Price

DISCONTINUE
SHIM

09181-08004-000 0918108004000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST (MODEL D) of your Suzuki 1100 GSX of GSX. Let us know if you have any questions.
