TRANSMISSION

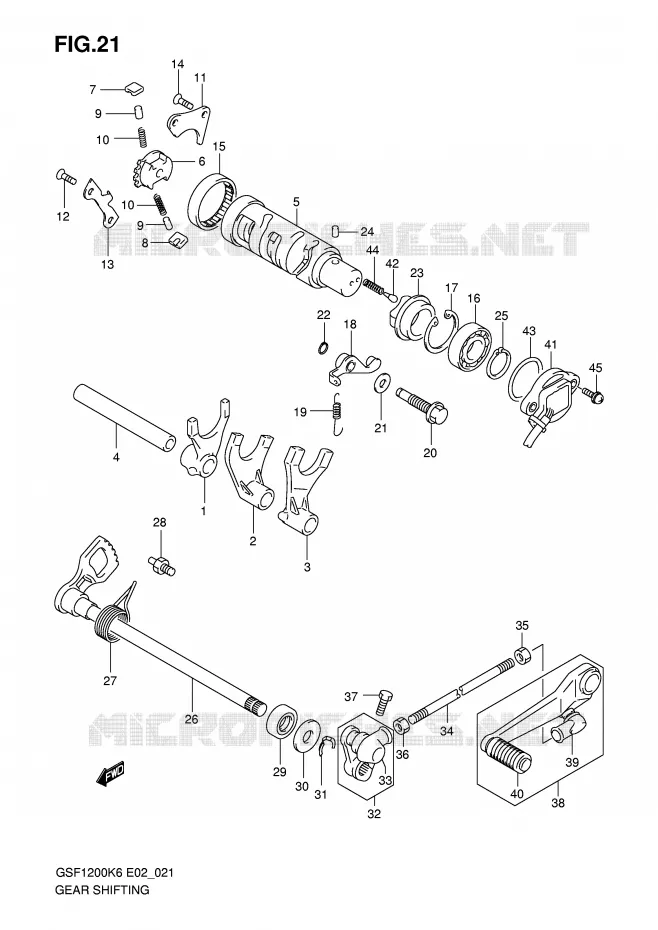

GEAR SHIFTING ASSY FOR SUZUKI BANDIT-S 1200 2006

ALTERNATOR

Item numbers

FORK, GEAR SHIFT NO.1

25211-06B02-000 2521106B02000

$135,97

Unit Price

FORK, GEAR SHIFT NO.2

25221-06B00-000 2522106B00000

$132,97

Unit Price

FORK, GEAR SHIFT NO.3

25231-06B00-000 2523106B00000

$135,97

Unit Price

SHAFT, GEAR SHIFT FORK (L:128)

25411-27A00-000 2541127A00000

$40,97

Unit Price

CAM, GEAR SHIFT

25310-06B03-000 2531006B03000

$281,97

Unit Price

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310-000 2532231310000

$27,97

Unit Price

PAWL, GEAR SHIFT NO.1
POLE, GEAR SHIFT NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2
POLE, GEAR SHIFT NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

SHIFTING PAUL ROLLER
ROLLER (5X8)

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

LIFTER, GEAR SHIFT POLE

25331-31310-000 2533131310000

Not available

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

DISCONTINUE
GUIDE, GEAR SHIFT CAM

25341-27A00-000 2534127A00000

Not available

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

BEARING (43X49X12)

09263-43001-000 0926343001000

$59,97

Unit Price

BEARING, RH
BEARING

08113-69050-000 0811369050000

$54,97

Unit Price

CIRCLIP

08331-41426-000

08331-41429-000

$3,97

Unit Price

DISCONTINUE
STOPPER, GEAR SHIFT CAM

25350-27A10-000 2535027A10000

Not available

SPRING

09443-09033-000 0944309033000

$13,97

Unit Price

DISCONTINUE
SHAFT, GEAR SHIFT CAM STOPPER

25353-27A00-000 2535327A00000

Not available

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

CIRCLIP

08331-31086-000

08331-31089-000

$2,97

Unit Price

PLATE, STOPPER

25381-38400-000 2538138400000

$33,97

Unit Price

PIN (4X6)
PIN

04221-04069-000 0422104069000

$2,97

Unit Price

CIRCLIP

08331-31256-000

08331-31259-000

$3,97

Unit Price

DISCONTINUE
SHAFT, GEAR SHIFT

25510-19C01-000 2551019C01000

Not available

SPRING

09444-26017-000 0944426017000

$8,97

Unit Price

STOPPER, GEAR SHIFT ARM
STOPPER, GEAR SHIFT

25671-01011-000 2567101011000

$6,97

Unit Price

OIL SEAL
OIL SEAL (12X22X9)

09285-12006-000 0928512006000

$10,97

Unit Price

WASHER

09160-12090-000

09160-12089-000

$3,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

ARM, GEAR SHIFT LINK

25520-22A00-000

25520-22A01-000

$79,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

ROD, GEAR SHIFT LINK

25525-26E01-000 2552526E01000

$22,97

Unit Price

NUT

09140-06025-000 0914006025000

$2,97

Unit Price

NUT

08310-00067-000 0831000067000

$2,97

Unit Price

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-33E00-000

25600-33E01-000

$183,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$8,97

Unit Price

RUBBER, GEAR SHIFT PEDAL
RUBBER

25652-20C00-000 2565220C00000

$7,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-20C10-000 3772020C10000

$126,97

Unit Price

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

O-RING, ID:35.5
O RING (D:2.40, ID:35.5)

09280-35006-000 0928035006000

$5,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

SCREW

09138-05015-000 0913805015000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki BANDIT 1200 of BANDIT-S. Let us know if you have any questions.
