FRONT MASTER CYLINDER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.54A(K-7) FOR GSF1200SAV/SAW/SAX/SAY

FRONT MASTER CYLINDER (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1996

SWINGARM (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.56A(L-3) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

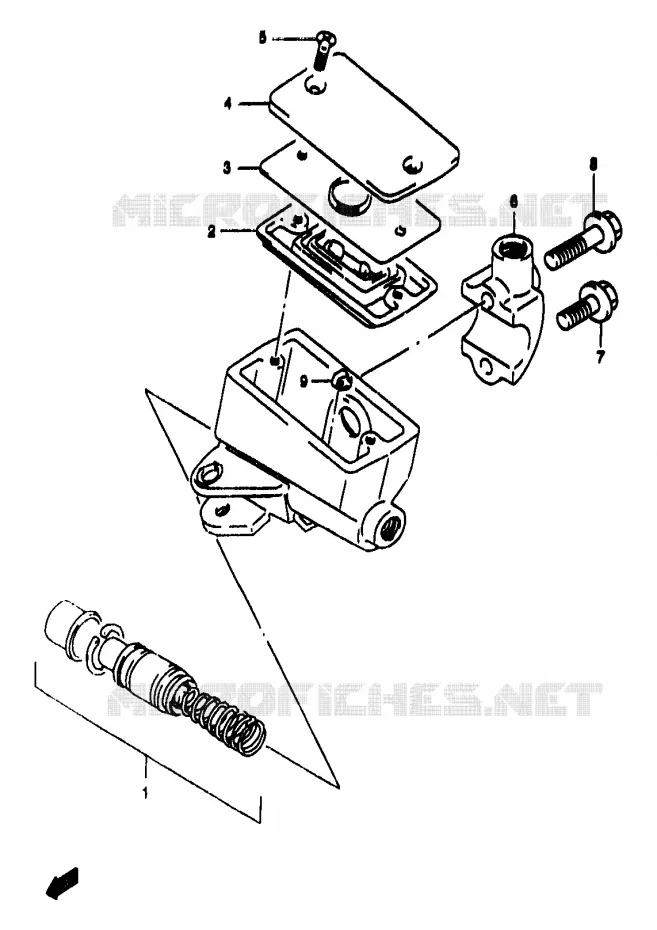

FRONT MASTER CYLINDER (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1996 GSF1200SAT(T/V/W/X/Y)
1
2
3
4
5
6
7
8
9
1
PISTON & CUP SET
PISTON/CUP SET

59600-27830-000   5960027830000

5960027830000

Unit Price

2
DIAPHRAGM
DIAPHRAGM

59667-49460-000   5966749460000

5966749460000

Unit Price

3
PLATE,DIAPHRAGM<br />PLATE
PLATE, DIAPHRAGM
PLATE

59668-41C00-000   5966841C00000

5966841C00000

Unit Price

4
CAP
CAP

59669-41C00-000   5966941C00000

5966941C00000

Unit Price

5
SCREW,RESERVOIR CAP<br />SCREW
SCREW, RESERVOIR CAP
SCREW

69689-49300-000   6968949300000

6968949300000

Unit Price

6
HOLDER
HOLDER

59671-44300-000   5967144300000

5967144300000

Unit Price

7
BOLT (6X25)
BOLT (6X25)

59675-19C00-000   5967519C00000

5967519C00000

Unit Price

8
BOLT (6X38)
BOLT (6X38)

59675-19C10-000   5967519C10000

5967519C10000

Unit Price

9
PROTECTOR
PROTECTOR

59664-48B00-000   5966448B00000

5966448B00000

Unit Price

99x
DISCONTINUE<br />CYLINDER ASSY, FRONT MASTER
DISCONTINUE
CYLINDER ASSY, FRONT MASTER

59600-27E50-000   5960027E50000

5960027E50000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 S ABS of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1996
