Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI BANDIT 1200 1996

GEAR SHIFTING ASSY

Item numbers

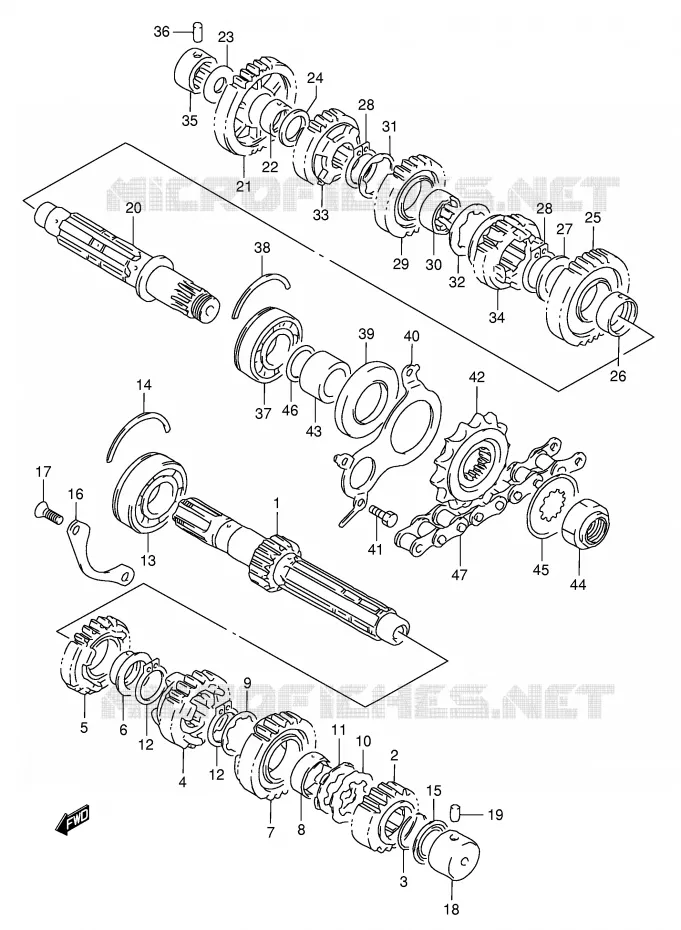

TRANSMISSION Suzuki MOTO 1200 BANDIT 1996 GSF1200ST(E28)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
27
28
28
29
30
30
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
47
1
SHAFT, COUNTER(NT:13)

24121-40C11-000  

24121-40C21-000
 2412140C11000

Unit Price

2
DISCONTINUE<br />GEAR, 2ND DRIVE (NT:19)
DISCONTINUE
GEAR, 2ND DRIVE (NT:19)

24221-40C00-000   2422140C00000

2422140C00000
Not available
3
CIRCLIP<br />SNAP RING
CIRCLIP
SNAP RING

09380-25013-000   0938025013000

0938025013000

Unit Price

4
GEAR, 3RD DRIVE(NT:20)

24231-48B01-000  

24231-48B10-000
 2423148B01000

Unit Price

5
GEAR, 4TH DRIVE(NT:22)

24241-48B10-000  

24241-48B50-000
 2424148B10000

Unit Price

6
BUSH

09301-25001-000  

24322-19F00-000
 0930125001000

Unit Price

7
GEAR, 5TH DRIVE

24251-48B02-000  

24251-48B30-000
 2425148B02000

Unit Price

8
DISCONTINUE<br />BUSH, 5TH DRIVE GEAR
DISCONTINUE
BUSH, 5TH DRIVE GEAR

24252-48B00-000   2425248B00000

2425248B00000
Not available
9
WASHER,LOCK<br />WASHER (25.1X33X1)
WASHER, LOCK
WASHER (25.1X33X1)

09167-25021-000   0916725021000

0916725021000

Unit Price

10
LOCK WASHER<br />WASHER (25.1X41X1.5)
LOCK WASHER
WASHER (25.1X41X1.5)

09167-25013-000   0916725013000

0916725013000

Unit Price

11
LOCK WASHER<br />WASHER (25.1X37X1)
LOCK WASHER
WASHER (25.1X37X1)

09169-25001-000   0916925001000

0916925001000

Unit Price

12
3RD PINION CIRCLIP<br />SNAP RING
3RD PINION CIRCLIP
SNAP RING

09380-25003-000   0938025003000

0938025003000

Unit Price

13
BEARING(25X62X17)<br />BALL BEARING (25X62X17)
BEARING(25X62X17)
BALL BEARING (25X62X17)

09262-25051-000   0926225051000

0926225051000

Unit Price

14
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

15
OIL SEAL<br />OIL SEAL (20X31.2X2.7)
OIL SEAL
OIL SEAL (20X31.2X2.7)

09285-20006-000   0928520006000

0928520006000

Unit Price

16
RETAINER, CNTR SHAFT BEARING
RETAINER, CNTR SHAFT BEARING

24741-27A00-000   2474127A00000

2474127A00000

Unit Price

17
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

18
BEARING,COUNTERSHAFT
BEARING, COUNTERSHAFT

09263-20049-000  

09263-20119-000
 0926320049000

Unit Price

19
PIN 7 X 12<br />KNOCK PIN
PIN 7 X 12
KNOCK PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

20
DISCONTINUE

24131-40C11-000  

2413140C11000
Not available
21
DISCONTINUE

24311-48B10-000  

2431148B10000
Not available
22
BUSH

09300-22005-000  

24312-02F00-000
 0930022005000

Unit Price

23
WASHER<br />THRUST WASHER
WASHER
THRUST WASHER

08211-20341-000   0821120341000

0821120341000

Unit Price

23
WASHER<br />THRUST WASHER (20X34X1.0)
WASHER
THRUST WASHER (20X34X1.0)

09181-20251-000   0918120251000

0918120251000

Unit Price

24
WASHER<br />THRUST WASHER
WASHER
THRUST WASHER

08211-22341-000   0821122341000

0821122341000

Unit Price

24
WASHER<br />THRUST WASHER (22X34X1.0)
WASHER
THRUST WASHER (22X34X1.0)

09181-22223-000   0918122223000

0918122223000

Unit Price

25
GEAR, 2ND DRIVEN (NT:31)
GEAR, 2ND DRIVEN (NT:31)

24321-48B10-000   2432148B10000

2432148B10000

Unit Price

26
BUSH
BUSH

09300-28002-000   0930028002000

0930028002000

Unit Price

27
WASHER
WASHER

08211-28361-000   0821128361000

0821128361000

Unit Price

27
SHIM(28X36X1)<br />WASHER (28X36X1.0)
SHIM(28X36X1)
WASHER (28X36X1.0)

09181-28167-000   0918128167000

0918128167000

Unit Price

28
CIRCLIP

08331-31286-000  

08331-31289-000
 0833131286000

Unit Price

29
GEAR, 3RD DRIVEN(NT:25)

24331-48B03-000  

24331-48B30-000
 2433148B03000

Unit Price

30
BUSH, 3RD DRIVEN GEAR

24332-48B00-000  

24332-48B01-000
 2433248B00000

Unit Price

31
WASHER,LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

09167-28001-000   0916728001000

0916728001000

Unit Price

32
DISCONTINUE<br />WASHER (34X46X2)
DISCONTINUE
WASHER (34X46X2)

09167-28008-000   0916728008000

0916728008000
Not available
33
GEAR, 4TH DRIVEN(NT:23)

24341-06B01-000  

24341-06B30-000
 2434106B01000

Unit Price

34
GEAR, 5TH DRIVEN(NT:21)

24351-48B04-000  

24351-48B06-000
 2435148B04000

Unit Price

35
BEARING,DR SHAFT RH<br />BEARING (20X34X20)
BEARING, DR SHAFT RH
BEARING (20X34X20)

09263-20040-000   0926320040000

0926320040000

Unit Price

36
PIN
PIN

04221-07209-000   0422107209000

0422107209000

Unit Price

37
BEARING (25X62X21.6)
BEARING (25X62X21.6)

09267-25011-000   0926725011000

0926725011000

Unit Price

38
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

39
SEAL,OIL 34X62X6<br />OIL SEAL (34X62X6)
SEAL, OIL 34X62X6
OIL SEAL (34X62X6)

09283-34005-000   0928334005000

0928334005000

Unit Price

40
RETAINER, DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT OIL SEAL

24751-40C01-000   2475140C01000

2475140C01000

Unit Price

41
BOLT

01500-06123-000  

01500-0612A-000
 0150006123000

Unit Price

42
SPROCKET, ENGINE (NT:15)
SPROCKET, ENGINE (NT:15)

27510-17C10-000   2751017C10000

2751017C10000

Unit Price

43
SPACER (25X34X19)
SPACER (25X34X19)

09180-25100-000   0918025100000

0918025100000

Unit Price

44
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

45
WASHER,LOCK<br />WASHER (25.3X41.6X1)
WASHER, LOCK
WASHER (25.3X41.6X1)

09167-25019-000   0916725019000

0916725019000

Unit Price

46
DR SFT BRG O RING<br />O RING (D:1.0 ID:24.5)
DR SFT BRG O RING
O RING (D:1.0 ID:24.5)

09280-25001-000   0928025001000

0928025001000

Unit Price

47
DISCONTINUE

27600-07D20-110  

2760007D20110
Not available
47
DISCONTINUE

27600-21E20-110  

2760021E20110
Not available
47
DISCONTINUE

27600-21E20-114  

2760021E20114
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki BANDIT 1200 S of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND for Suzuki BANDIT 1200 1996

STAND
for Suzuki BANDIT 1200 1996

HANDLEBAR for Suzuki BANDIT 1200 1996

HANDLEBAR
for Suzuki BANDIT 1200 1996

LEVERS HANDGRIPS for Suzuki BANDIT 1200 1996

LEVERS - HANDGRIPS
for Suzuki BANDIT 1200 1996

RIGHT SWITCH HANDGRIP for Suzuki BANDIT 1200 1996

RIGHT SWITCH - HANDGRIP
for Suzuki BANDIT 1200 1996

FRONT FORK (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

FRONT FORK (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

FRONT FORK (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT FORK (GSF1200SAV)
for Suzuki BANDIT 1200 1996

STEERING COLUMN (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

STEERING COLUMN (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

STEERING COLUMN (GSF1200SAV) for Suzuki BANDIT 1200 1996

STEERING COLUMN (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT WHEEL (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

FRONT WHEEL (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

FRONT WHEEL (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT WHEEL (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT CALIPER (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

FRONT CALIPER (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

FRONT CALIPER (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT CALIPER (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT BRAKE HOSE (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

FRONT BRAKE HOSE (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

ABS SYSTEM (GSF1200SAV) for Suzuki BANDIT 1200 1996

ABS SYSTEM (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT BRAKE PIPE (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT BRAKE PIPE (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT BRAKE HOSE (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT BRAKE HOSE (GSF1200SAV)
for Suzuki BANDIT 1200 1996

FRONT MASTER CYLINDER (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

FRONT MASTER CYLINDER (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

FRONT MASTER CYLINDER (GSF1200SAV) for Suzuki BANDIT 1200 1996

FRONT MASTER CYLINDER (GSF1200SAV)
for Suzuki BANDIT 1200 1996

SWINGARM (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

SWINGARM (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

SWINGARM (GSF1200SAV) for Suzuki BANDIT 1200 1996

SWINGARM (GSF1200SAV)
for Suzuki BANDIT 1200 1996

SHOCK ABSORBER LINKAGE (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

SHOCK ABSORBER LINKAGE (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

SHOCK ABSORBER LINKAGE (GSF1200SAV) for Suzuki BANDIT 1200 1996

SHOCK ABSORBER LINKAGE (GSF1200SAV)
for Suzuki BANDIT 1200 1996

REAR WHEEL (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

REAR WHEEL (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

REAR WHEEL (GSF1200SAV) for Suzuki BANDIT 1200 1996

REAR WHEEL (GSF1200SAV)
for Suzuki BANDIT 1200 1996

REAR CALIPER (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

REAR CALIPER (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

REAR CALIPER (GSF1200SAV) for Suzuki BANDIT 1200 1996

REAR CALIPER (GSF1200SAV)
for Suzuki BANDIT 1200 1996

REAR BRAKE MASTER CYLINDER (GSF1200ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1996

REAR BRAKE MASTER CYLINDER (GSF1200ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1996

REAR BRAKE MASTER CYLINDER (GSF1200SAV) for Suzuki BANDIT 1200 1996

REAR BRAKE MASTER CYLINDER (GSF1200SAV)
for Suzuki BANDIT 1200 1996

REAR BRAKE HOSE (GSF1200SAV) for Suzuki BANDIT 1200 1996

REAR BRAKE HOSE (GSF1200SAV)
for Suzuki BANDIT 1200 1996

Suzuki 1200 BANDIT 1996

Select your Suzuki 1996 model

1200 BANDIT 1996 GSF1200ST(E28)

BANDIT 1200 S

Suzuki BANDIT

Displacement: 1200 cc
Year: 1996
Model code GSF1200ST(E28)
Drapeau CANADA
Canada

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
