Parts catalogue

Parts diagram

TIMING

CARBURETOR FOR SUZUKI BANDIT 1200 1997

CARBURETOR FITTING

Item numbers

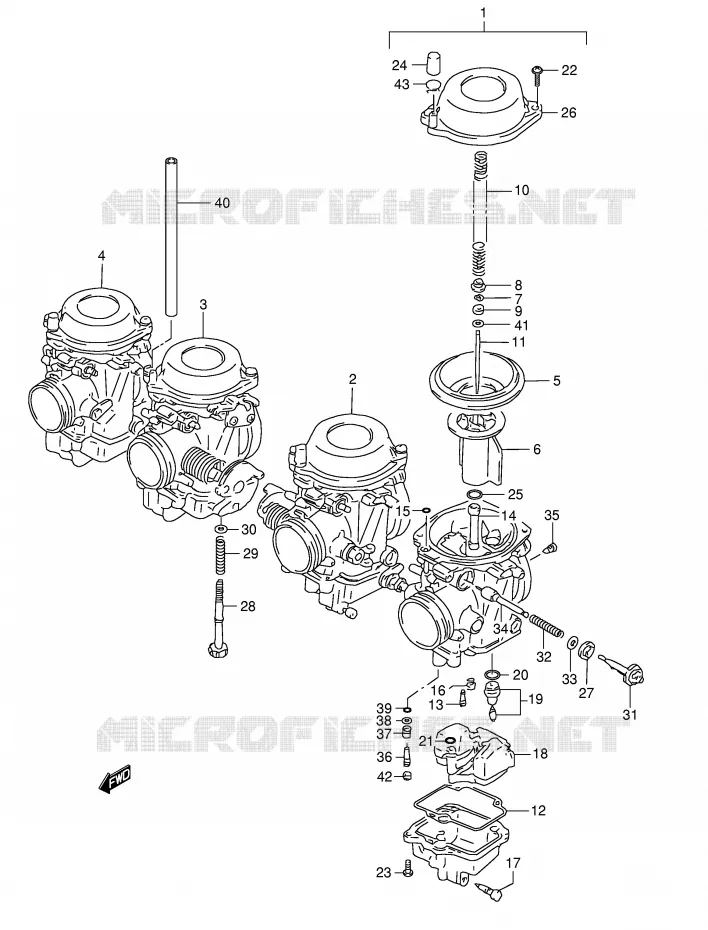

CARBURETOR Suzuki MOTO 1200 BANDIT 1997 GSF1200SAV(E28)
1
1
1
2
2
2
3
3
3
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
38
39
40
41
42
1
DISCONTINUE

13201-27E10-000  

1320127E10000
Not available
1
13201-27E51
DISCONTINUED

13201-27E50-000   1320127E50000

1320127E50000
Not available
1
DISCONTINUE
CARBURETOR ASSY, LH

13201-27E51-000   1320127E51000

1320127E51000
Not available
2
DISCONTINUE

13202-27E10-000  

1320227E10000
Not available
2
13202-27E51
DISCONTINUED

13202-27E50-000   1320227E50000

1320227E50000
Not available
2
DISCONTINUE
CARBURETOR ASSY, ML

13202-27E51-000   1320227E51000

1320227E51000
Not available
3
DISCONTINUE

13203-27E10-000  

1320327E10000
Not available
3
13203-27E51
DISCONTINUED

13203-27E50-000   1320327E50000

1320327E50000
Not available
3
DISCONTINUE
CARBURETOR ASSY, MR

13203-27E51-000   1320327E51000

1320327E51000
Not available
4
DISCONTINUE

13204-27E10-000  

1320427E10000
Not available
4
13204-27E51
DISCONTINUED

13204-27E50-000   1320427E50000

1320427E50000
Not available
4
DISCONTINUE
CARBURETOR ASSY, RH

13204-27E51-000   1320427E51000

1320427E51000
Not available
5
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

6
VALVE, PISTON
VALVE, PISTON

13501-02D00-000   1350102D00000

1350102D00000

Unit Price

7
E RING
E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

8
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

9
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

10
SPRING

13417-07C30-000   1341707C30000

1341707C30000

Unit Price

11
NEEDLE,JET<br />NEEDLE, JET (5D76-4)
NEEDLE, JET
NEEDLE, JET (5D76-4)

13383-27E00-000   1338327E00000

1338327E00000

Unit Price

11
NEEDLE, JET(5D80)
NEEDLE, JET (5D80-1)

13383-27E50-000   1338327E50000

1338327E50000

Unit Price

12
GASKET,FLOAT CAHMBER<br />GASKET
GASKET, FLOAT CAHMBER
GASKET

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

13
JET,PILOT<br />JET, PILOT (37.5)
JET, PILOT
JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

14
JET,NEEDLE<br />JET, NEEDLE (O-8)
JET, NEEDLE
JET, NEEDLE (O-8)

09494-00638-000   0949400638000

0949400638000

Unit Price

14
DISCONTINUE
JET, NEEDLE (O-8M)

09494-00898-000   0949400898000

0949400898000
Not available
15
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price

16
JET,MAIN<br />JET, MAIN (102.5)
JET, MAIN
JET, MAIN (102.5)

09491-20012-000   0949120012000

0949120012000

Unit Price

17
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

18
FLOAT ASSY
FLOAT ASSY

13240-14D10-000   1324014D10000

1324014D10000

Unit Price

19
VALVE ASSY,NEEDLE(NI)
VALVE ASSY, NEEDLE(NI)

13370-46E20-000  

13370-46E21-000
 1337046E20000

Unit Price

20
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

21
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

22
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

23
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

24
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

25
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

26
DISCONTINUE<br />COVER, DIAPHRAGM
DISCONTINUE
COVER, DIAPHRAGM

13502-17E20-000   1350217E20000

1350217E20000
Not available
27
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

28
DISCONTINUE<br />ADJUSTER
DISCONTINUE
ADJUSTER

13267-14D10-000   1326714D10000

1326714D10000
Not available
29
SPRING
SPRING

13375-14D10-000   1337514D10000

1337514D10000

Unit Price

30
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

31
HOLDER,GUIDE<br />HOLDER
HOLDER, GUIDE
HOLDER

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

32
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

33
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

34
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

35
JET, PILOT AIR(1.5)
JET, AIR (1.5)

09493-30004-000   0949330004000

0949330004000

Unit Price

35
.JET, PILOT AIR (1.4)

09493-28007-000   0949328007000

0949328007000
Not available
36
SCREW,PILOT<br />SCREW, PILOT (1,3/4)
SCREW, PILOT
SCREW, PILOT (1, 3/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

37
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

38
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

39
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

40
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

41
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

42
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki BANDIT 1200 S ABS of BANDIT. Let us know if you have any questions.
