FRONT MASTER CYLINDER (GSF1200SAV / SAW / SAX / SAY)

SWINGARM (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) FOR SUZUKI BANDIT 1200 1997

SWINGARM (GSF1200SAV / SAW / SAX / SAY)

Item numbers

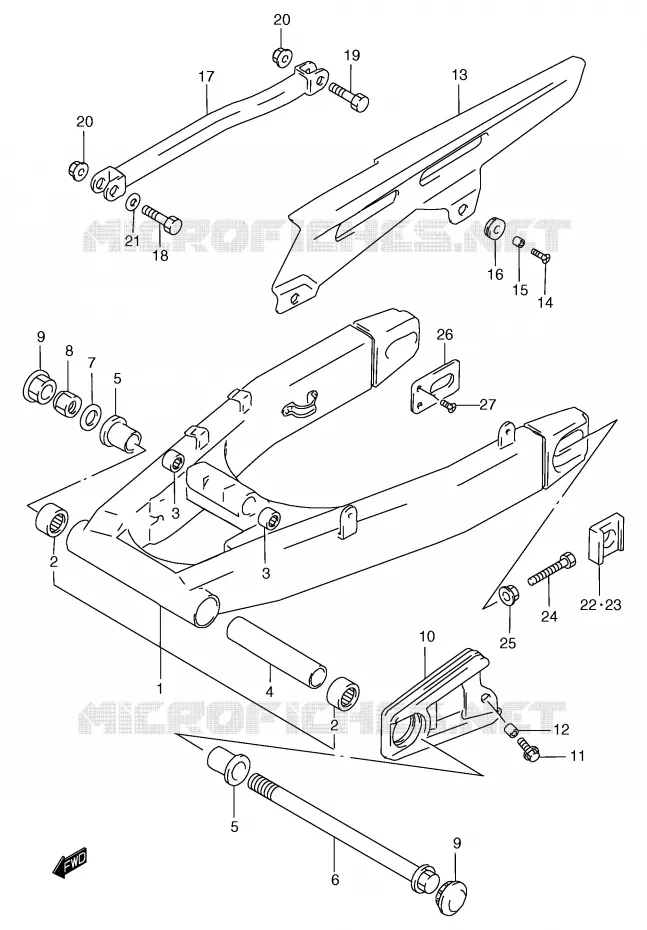

SWINGARM (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) Suzuki MOTO 1200 BANDIT 1997 GSF1200SV(E2)
1
2
2
3
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
1
DISCONTINUE<br />SWINGING ARM ASSY, REAR
DISCONTINUE
SWINGING ARM ASSY, REAR

61000-27E10-000   6100027E10000

6100027E10000
Not available
2
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

4
SPACER,RR SWGARM PIVOT CTR<br />SPACER, PIVOT CENTER
SPACER, RR SWGARM PIVOT CTR
SPACER, PIVOT CENTER

61282-31E00-000   6128231E00000

6128231E00000

Unit Price

5
SPACER, PIVOT BEARING
SPACER, PIVOT BEARING

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

6
SHAFT,RR SWINGINGARM PIVOT<br />SHAFT, PIVOT
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-31E00-000   6121131E00000

6121131E00000

Unit Price

7
WASHER (18.5X28X2.6)
WASHER (18.5X28X2.6)

09160-18030-000   0916018030000

0916018030000

Unit Price

8
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

9
CAP, FRAME PIVOT
CAP, FRAME PIVOT

43585-21E00-000   4358521E00000

4358521E00000

Unit Price

10
DISCONTINUE
DISCONTINUE

61273-27E11-000  

6127327E11000
Not available
11
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06152-000   0911606152000

0911606152000

Unit Price

12
SPACER (6.5X10X7)
SPACER (6.5X10X7)

09180-06283-000   0918006283000

0918006283000

Unit Price

13
DISCONTINUE<br />CASE, CHAIN
DISCONTINUE
CASE, CHAIN

61311-27E00-000   6131127E00000

6131127E00000
Not available
14
SCREW 6 X 16

09136-06011-000  

09136-06017-000
 0913606011000

Unit Price

15
SPACER(6.2X8.3X6.1)<br />SPACER (6.2X8.3X6.10)
SPACER(6.2X8.3X6.1)
SPACER (6.2X8.3X6.10)

09180-06092-000   0918006092000

0918006092000

Unit Price

16
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

17
DISCONTINUE<br />TORQUE LINK, REAR (BLACK)
DISCONTINUE
TORQUE LINK, REAR (BLACK)

64310-27E00-019   6431027E00019

6431027E00019
Not available
18
BOLT, FRONT (10X39)
BOLT, FRONT (10X39)

09111-10051-000   0911110051000

0911110051000
Not available
19
BOLT CALIPER<br />BOLT, REAR (10X37)
BOLT CALIPER
BOLT, REAR (10X37)

09103-10019-000   0910310019000

0910310019000

Unit Price

20
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

21
SEAL WASHER<br />WASHER (12.5X20X1)
SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000  

0916012011000
Not available
22
WASHER, CHAIN ADJUSTER, L

61446-27C20-000  

61446-27C21-000
 6144627C20000

Unit Price

23
WASHER, CHAIN ADJUSTER, L

61446-17E10-000  

61446-17E11-000
 6144617E10000

Unit Price

24
BOLT<br />BOLT (8X50)
BOLT
BOLT (8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

25
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

26
PLATE,RR SWING ARM BRKT<br />PLATE, SWINGING ARM
PLATE, RR SWING ARM BRKT
PLATE, SWINGING ARM

61124-17E10-000   6112417E10000

6112417E10000

Unit Price

27
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) of your Suzuki BANDIT 1200 S of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1997
