REAR CALIPER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.59A(L-9) FOR GSF1200SAV/SAW/SAX/SAY

REAR CALIPER (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 1997

REAR BRAKE MASTER CYLINDER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.60A(L-11) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

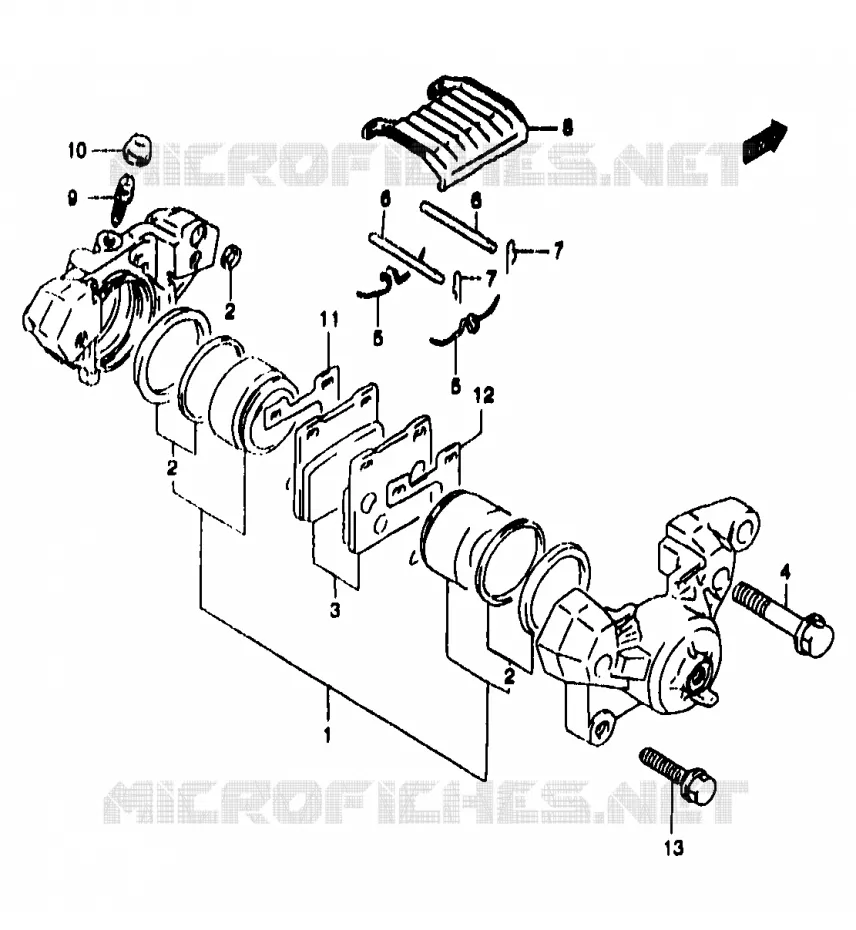

REAR CALIPER (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 1997 GSF1200V/GSF1200SV/GSF1200SAV
1
2
2
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
1
PISTON SET

69100-05850-000  

69100-05851-000
 6910005850000

Unit Price

2
SEAL SET, PISTON

69100-32820-000  

69101-05840-000
 6910032820000

Unit Price

3
PAD SET
PAD SET

69100-20810-000   6910020810000

6910020810000

Unit Price

4
BOLT,HOUSING<br />BOLT
BOLT, HOUSING
BOLT

59145-16700-000   5914516700000

5914516700000

Unit Price

5
SPRING
SPRING

59143-16700-000   5914316700000

5914316700000

Unit Price

6
BRAKE PAD PIN<br />PIN
BRAKE PAD PIN
PIN

69141-45000-000   6914145000000

6914145000000

Unit Price

7
BRAKE PAD PIN CLIP<br />CLIP
BRAKE PAD PIN CLIP
CLIP

69142-45000-000   6914245000000

6914245000000

Unit Price

8
COVER
COVER

59151-16701-000   5915116701000

5915116701000

Unit Price

9
BLEEDER
BLEEDER

59121-18410-000   5912118410000

5912118410000

Unit Price

10
CAP,BLEEDER PLUG<br />CAP
CAP, BLEEDER PLUG
CAP

55156-66310-000   5515666310000

5515666310000

Unit Price

11
SHIM, INNER
SHIM, INNER

59371-20C00-000   5937120C00000

5937120C00000

Unit Price

12
SHIM, OUTER
SHIM, OUTER

59381-20C00-000   5938120C00000

5938120C00000

Unit Price

13
BOLT

01550-08303-000  

01550-0830B-000
 0155008303000

Unit Price

99x
69100-01D04
CALIPER ASSY, REAR

69100-01D03-000  

6910001D03000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 S of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1997
