Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (GSF1200SAV) REFER TO FIG.31B(F- 5) FOR GSF1200W/SW

FRAME (GSF1200W / SW) FOR SUZUKI BANDIT 1200 1998

FRAME (GSF1200SAW) REFER TO FIG.31D(F- 8) FOR GSF1200X/SX

Item numbers

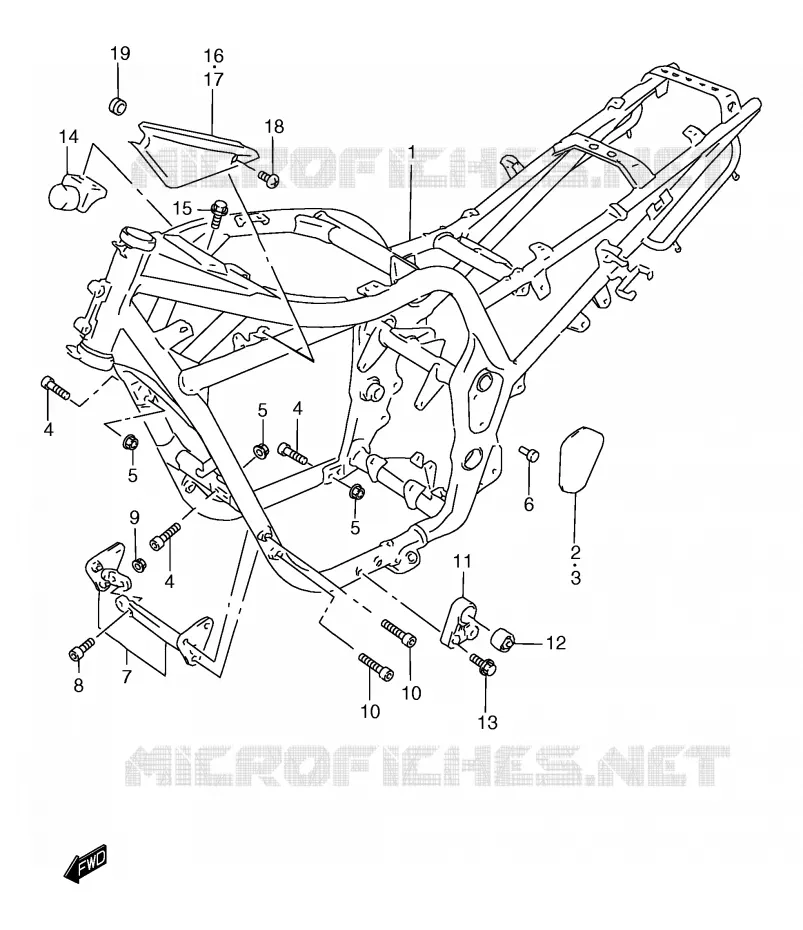

FRAME (GSF1200W/SW) Suzuki MOTO 1200 BANDIT 1998 GSF1200SAW(E2)
1
1
1
1
1
1
1
1
1
1
1
1
2
3
4
4
4
5
5
5
6
7
7
7
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
FRAME (GREEN)

41100-27E40-1UH   4110027E401UH

4110027E401UH
Not available
1
FRAME (MAROON)

41100-27E40-22U   4110027E4022U

4110027E4022U
Not available
1
FRAME (BLACK)

41100-27E40-33J   4110027E4033J

4110027E4033J
Not available
1
FRAME (SILVER)

41100-27E40-Y4H   4110027E40Y4H

4110027E40Y4H
Not available
1
FRAME (GREEN)

41100-27E60-1UH   4110027E601UH

4110027E601UH
Not available
1
FRAME (MAROON)

41100-27E60-22U   4110027E6022U

4110027E6022U
Not available
1
DISCONTINUE

41100-27E60-33J  

4110027E6033J
Not available
1
FRAME (SILVER)

41100-27E60-Y4H   4110027E60Y4H

4110027E60Y4H
Not available
1
FRAME (GREEN)

41100-27E70-1UH   4110027E701UH

4110027E701UH
Not available
1
FRAME (MAROON)

41100-27E70-22U   4110027E7022U

4110027E7022U
Not available
1
FRAME (BLACK)

41100-27E70-33J   4110027E7033J

4110027E7033J
Not available
1
FRAME (SILVER)

41100-27E70-Y4H   4110027E70Y4H

4110027E70Y4H
Not available
2
COVER,FRAME BODY,R<br />COVER, FRAME BODY RH
COVER, FRAME BODY, R
COVER, FRAME BODY RH

41639-26E00-000   4163926E00000

4163926E00000

Unit Price

3
COVER,FRAME BODY,L<br />COVER, FRAME BODY LH
COVER, FRAME BODY, L
COVER, FRAME BODY LH

41649-26E00-000   4164926E00000

4164926E00000

Unit Price

4
BOLT (10X33)
BOLT (10X33)

09106-10019-000   0910610019000

0910610019000

Unit Price

5
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

6
CLIP
CLIP

09409-07329-000   0940907329000

0940907329000

Unit Price

7
PLATE, ENGINE MOUNT (GREEN)

41900-27E00-1UH   4190027E001UH

4190027E001UH
Not available
7
PLATE, ENGINE MOUNT (MAROON)

41900-27E00-22U   4190027E0022U

4190027E0022U
Not available
7
DISCONTINUE

41900-27E00-33J  

4190027E0033J
Not available
7
PLATE, ENGINE MOUNT (SILVER)

41900-27E00-Y4H   4190027E00Y4H

4190027E00Y4H
Not available
8
BOLT

07120-10303-000  

07120-1030B-000
 0712010303000

Unit Price

9
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

10
BOLT

07130-08503-000  

07130-0850A-000
 0713008503000

Unit Price

11
DISCONTINUE<br />BRACKET, ENGINE MOUNT NO.2
DISCONTINUE
BRACKET, ENGINE MOUNT NO.2

41931-27E50-000   4193127E50000

4193127E50000
Not available
12
BUSH,ENG MOUNTING NO.2<br />BUSH
BUSH, ENG MOUNTING NO.2
BUSH

41932-27E50-000   4193227E50000

4193227E50000

Unit Price

13
BOLT

07120-08253-000  

07120-0825B-000
 0712008253000

Unit Price

14
DAMPER, FRAME

42550-27E50-000   4255027E50000

4255027E50000
Not available
15
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

16
COVER, FRAME HEAD, R

47511-26E00-291  

47511-26E10-291
 4751126E00291

Unit Price

17
DISCONTINUE<br />COVER, FRAME HEAD LH (BLACK)
DISCONTINUE
COVER, FRAME HEAD LH (BLACK)

47521-26E00-291  

4752126E00291
Not available
18
SCREW(5X12)<br />SCREW
SCREW(5X12)
SCREW

09139-05021-000   0913905021000

0913905021000

Unit Price

19
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME (GSF1200W/SW) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1998
