STARTER MOTOR FOR SUZUKI BANDIT 1200 1998

ELECTRICAL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.23A(E-3) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

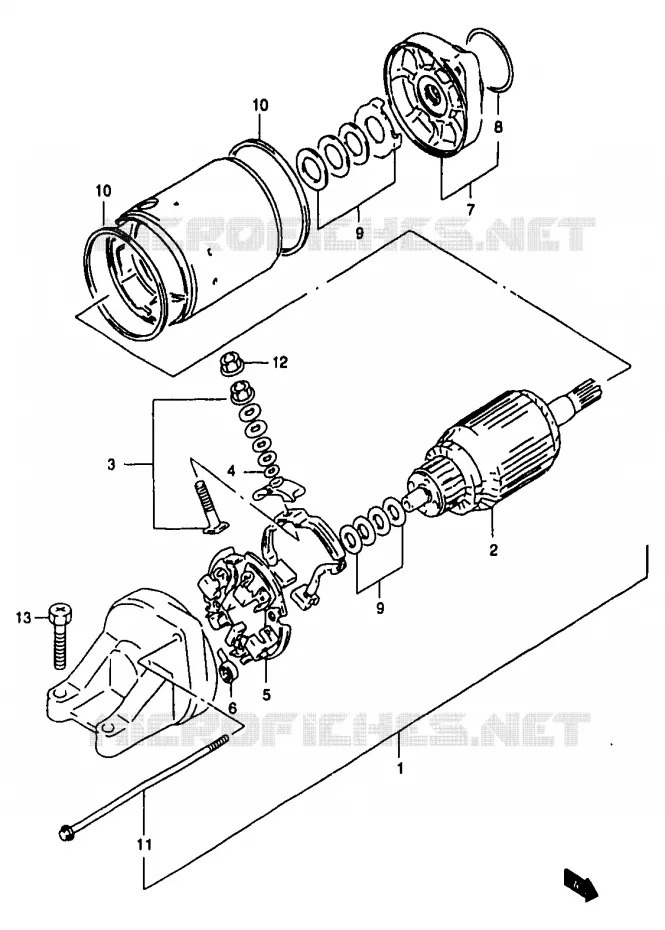

STARTER MOTOR Suzuki MOTO 1200 BANDIT 1998 GSF1200SAW(T/V/W/X/Y)
1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
1
MOTOR ASSY, STARTING

31100-26D00-000   3110026D00000

3110026D00000
Not available
1
DISCONTINUE<br />MOTOR ASSY, STARTING
DISCONTINUE
MOTOR ASSY, STARTING

31100-26D10-000   3110026D10000

3110026D10000
Not available
2
DISCONTINUE<br />ARMTURE
DISCONTINUE
ARMTURE

31310-40C02-000   3131040C02000

3131040C02000
Not available
3
TERMINAL SET, BRUSH
TERMINAL SET, BRUSH

31130-38B00-000   3113038B00000

3113038B00000

Unit Price

4
O RING
O RING

31143-49040-000   3114349040000

3114349040000

Unit Price

5
HOLDER SET, BRUSH
HOLDER SET, BRUSH

31132-38B00-000   3113238B00000

3113238B00000

Unit Price

6
SPRING, BRUSH
SPRING, BRUSH

31135-38B00-000   3113538B00000

3113538B00000

Unit Price

7
DISCONTINUE<br />BRACKET ASSY, FRONT
DISCONTINUE
BRACKET ASSY, FRONT

31150-26D00-000   3115026D00000

3115026D00000
Not available
8
O RING
O RING

31156-48B00-000   3115648B00000

3115648B00000

Unit Price

9
WASHER SET
WASHER SET

31170-19B10-000   3117019B10000

3117019B10000

Unit Price

10
SQUARE RING<br />O RING
SQUARE RING
O RING

31264-32E00-000  

3126432E00000
Not available
11
BOLT
BOLT

31280-26D00-000   3128026D00000

3128026D00000

Unit Price

12
NUT

08361-35068-000  

08361-3506A-000
 0836135068000

Unit Price

13
BOLT, ST CL COV/ST ID

09128-06024-000  

09103-06212-000
 0912806024000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
