Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FAIRING (GSF1200SAX) REFER TO FIG.36G(H-12) FOR GSF1200Y/SY

FAIRING (GSF1200Y / SY) FOR SUZUKI BANDIT 1200 1998

FAIRING (GSF1200SAY)

Item numbers

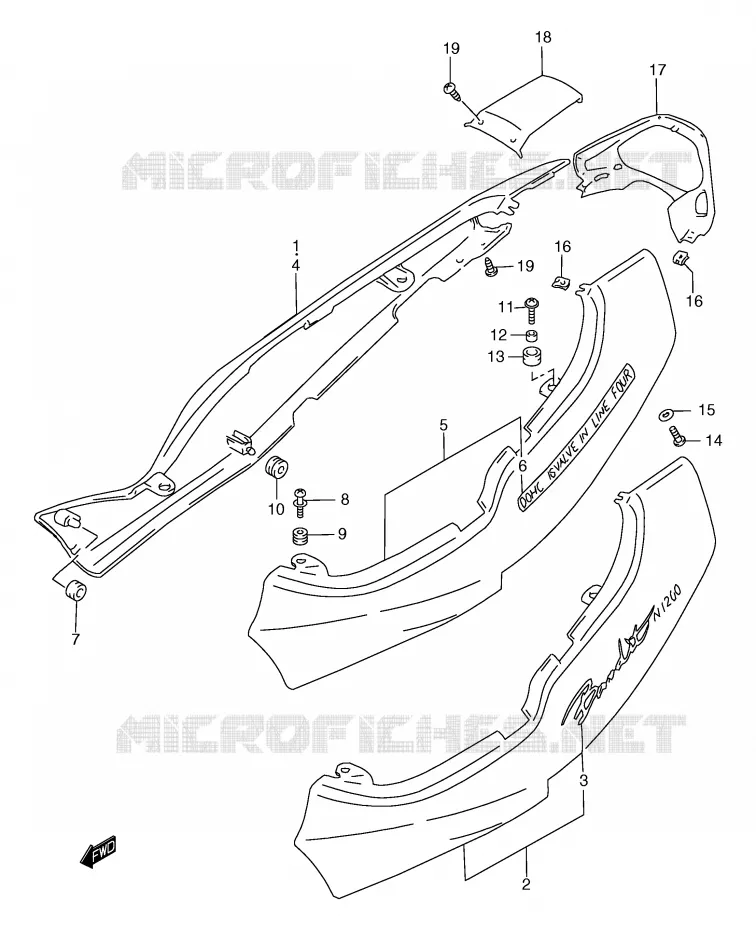

FAIRING (GSF1200Y/SY) Suzuki MOTO 1200 BANDIT 1998 GSF1200SW(E2)
1
1
1
1
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
6
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
18
18
19
19
1
COVER, FRAME RH (MAROON)
COVER, FRAME RH (MAROON)

47110-27E20-22U   4711027E2022U

4711027E2022U
Not available
1
COVER, FRAME RH (BLACK)

47110-27E20-Y7L   4711027E20Y7L

4711027E20Y7L
Not available
1
COVER, FRAME RH (GRAY)
COVER, FRAME RH (GRAY)

47110-27E20-Y9E   4711027E20Y9E

4711027E20Y9E
Not available
1
COVER, FRAME RH (SILVER)
COVER, FRAME RH (SILVER)

47110-27E20-YC7   4711027E20YC7

4711027E20YC7
Not available
2
COVER, FRAME LH (MAROON)

47210-27E20-22U   4721027E2022U

4721027E2022U
Not available
2
COVER, FRAME LH (BLACK)

47210-27E20-Y7L   4721027E20Y7L

4721027E20Y7L
Not available
2
COVER, FRAME LH (GRAY)
COVER, FRAME LH (GRAY)

47210-27E20-Y9E   4721027E20Y9E

4721027E20Y9E
Not available
2
COVER, FRAME LH (SILVER)
COVER, FRAME LH (SILVER)

47210-27E20-YC7   4721027E20YC7

4721027E20YC7
Not available
3
EMBLEM

68131-27E10-F6G   6813127E10F6G

6813127E10F6G
Not available
3
EMBLEM

68131-27E10-F7F   6813127E10F7F

6813127E10F7F
Not available
3
EMBLEM

68131-27E10-K2A   6813127E10K2A

6813127E10K2A
Not available
4
DISCONTINUE<br />COVER, FRAME RH (MAROON)
DISCONTINUE
COVER, FRAME RH (MAROON)

47110-26E50-22U   4711026E5022U

4711026E5022U
Not available
4
COVER, FRAME RH (BLACK)
COVER, FRAME RH (BLACK)

47110-26E50-Y7L   4711026E50Y7L

4711026E50Y7L
Not available
4
DISCONTINUE
COVER, FRAME RH (GRAY)

47110-26E50-Y9E   4711026E50Y9E

4711026E50Y9E
Not available
4
DISCONTINUE<br />COVER, FRAME RH (SILVER)
DISCONTINUE
COVER, FRAME RH (SILVER)

47110-26E50-YC7   4711026E50YC7

4711026E50YC7
Not available
5
DISCONTINUE<br />COVER, FRAME LH (MAROON)
DISCONTINUE
COVER, FRAME LH (MAROON)

47210-26E50-22U   4721026E5022U

4721026E5022U
Not available
5
COVER, FRAME LH (BLACK)

47210-26E50-Y7L   4721026E50Y7L

4721026E50Y7L
Not available
5
DISCONTINUE<br />COVER, FRAME LH (GRAY)
DISCONTINUE
COVER, FRAME LH (GRAY)

47210-26E50-Y9E   4721026E50Y9E

4721026E50Y9E
Not available
5
DISCONTINUE<br />COVER, FRAME LH (SILVER)
DISCONTINUE
COVER, FRAME LH (SILVER)

47210-26E50-YC7   4721026E50YC7

4721026E50YC7
Not available
6
DISCONTINUE
EMBLEM (MAROON)

68131-26E30-20F   6813126E3020F

6813126E3020F
Not available
6
DISCONTINUE<br />EMBLEM (GOLD)
DISCONTINUE
EMBLEM (GOLD)

68131-26E30-24G   6813126E3024G

6813126E3024G
Not available
6
DISCONTINUE
EMBLEM (SILVER)

68131-26E30-Z39   6813126E30Z39

6813126E30Z39
Not available
7
CUSHION,FRAME COVER
CUSHION, FRAME COVER

47161-21E00-000  

47161-21E01-000
 4716121E00000

Unit Price

8
CLIP<br />CLIP, UPPER
CLIP
CLIP, UPPER

09409-10306-000   0940910306000

0940910306000

Unit Price

9
CUSHION<br />CUSHION, UPPER
CUSHION
CUSHION, UPPER

09320-10501-000   0932010501000

0932010501000

Unit Price

10
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

11
SCREW<br />SCREW, CENTER
SCREW
SCREW, CENTER

09136-06105-000   0913606105000

0913606105000

Unit Price

12
SPACER,6.5X10X9.4<br />SPACER
SPACER, 6.5X10X9.4
SPACER

09180-06286-000   0918006286000

0918006286000

Unit Price

13
CUSHION
CUSHION

09320-10045-000   0932010045000

0932010045000

Unit Price

14
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

15
WASHER

09161-06021-000  

0916106021000
Not available
16
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

17
DISCONTINUE<br />COVER, FRAME REAR (BLACK)
DISCONTINUE
COVER, FRAME REAR (BLACK)

47331-26E00-291   4733126E00291

4733126E00291
Not available
18
DISCONTINUE<br />COVER, FRAME CENTER (MAROON)
DISCONTINUE
COVER, FRAME CENTER (MAROON)

47311-26E00-22U   4731126E0022U

4731126E0022U
Not available
18
COVER, FRAME CENTER (BLACK)

47311-26E00-Y7L   4731126E00Y7L

4731126E00Y7L
Not available
18
COVER, FRAME CENTER (GRAY)

47311-26E00-Y9E   4731126E00Y9E

4731126E00Y9E
Not available
18
DISCONTINUE<br />COVER, FRAME CENTER (SILVER)
DISCONTINUE
COVER, FRAME CENTER (SILVER)

47311-26E00-YC7   4731126E00YC7

4731126E00YC7
Not available
19
SCREW

03241-15123-000  

03241-1512B-000
 0324115123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (GSF1200Y/SY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
