GEAR SHIFTING ASSY

ALTERNATOR FOR SUZUKI BANDIT 1200 1998

GENERATOR SENSOR

Item numbers

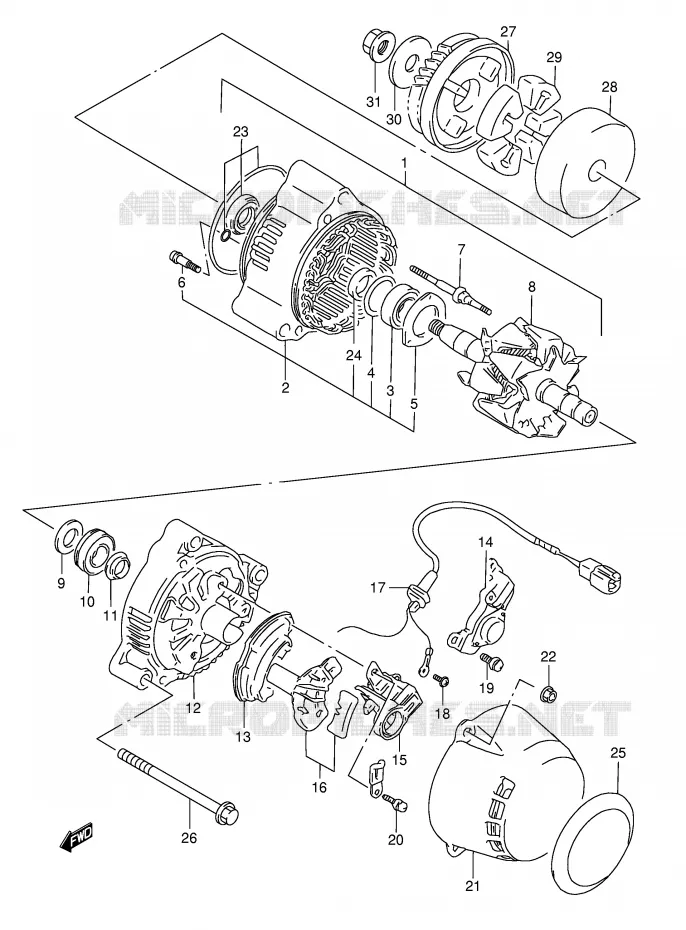

ALTERNATOR Suzuki MOTO 1200 BANDIT 1998 GSF1200SW(E28)
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
1
DISCONTINUE<br />ALTERNATOR ASSY
DISCONTINUE
ALTERNATOR ASSY

31400-17C04-000   3140017C04000

3140017C04000
Not available
1
ALTERNATOR ASSY

31400-19C10-000   3140019C10000

3140019C10000
Not available
2
FRAME, DRIVE END

31580-48B00-000   3158048B00000

3158048B00000
Not available
3
BEARING
BEARING

31612-06B00-000   3161206B00000

3161206B00000

Unit Price

4
DISCONTINUE<br />COVER, BEARING
DISCONTINUE
COVER, BEARING

31613-48B00-000   3161348B00000

3161348B00000
Not available
5
DISCONTINUE<br />RETAINER
DISCONTINUE
RETAINER

31585-48B00-000   3158548B00000

3158548B00000
Not available
6
DISCONTINUE<br />SCREW, BEARING RETAINER
DISCONTINUE
SCREW, BEARING RETAINER

31586-48B00-000   3158648B00000

3158648B00000
Not available
7
STUD BOLT
STUD BOLT

31587-85250-000   3158785250000

3158785250000
Not available
8
DISCONTINUE<br />ROTOR ASSY
DISCONTINUE
ROTOR ASSY

31710-19C10-000   3171019C10000

3171019C10000
Not available
8
DISCONTINUE<br />ROTOR ASSY
DISCONTINUE
ROTOR ASSY

31710-48B04-000   3171048B04000

3171048B04000
Not available
9
COVER, BEARING
COVER, BEARING

31613-82610-000   3161382610000

3161382610000

Unit Price

10
BEARING
BEARING

31612-48B00-000   3161248B00000

3161248B00000

Unit Price

11
COVER(2)<br />COVER, NO.2
COVER(2)
COVER, NO.2

31613-27A10-000   3161327A10000

3161327A10000

Unit Price

12
FRAME, END

31611-48B00-000   3161148B00000

3161148B00000
Not available
13
DISCONTINUE<br />HOLDER, RECTIFIER
DISCONTINUE
HOLDER, RECTIFIER

31621-27A00-000   3162127A00000

3162127A00000
Not available
14
DISCONTINUE<br />REGULATOR
DISCONTINUE
REGULATOR

32500-27A00-000   3250027A00000

3250027A00000
Not available
15
DISCONTINUE<br />HOLDER, BRUSH
DISCONTINUE
HOLDER, BRUSH

31656-48B00-000   3165648B00000

3165648B00000
Not available
16
COVER, RECTIFIER
COVER, RECTIFIER

31687-17E00-000   3168717E00000

3168717E00000

Unit Price

17
DISCONTINUE<br />WIRE, LEAD
DISCONTINUE
WIRE, LEAD

31480-48B00-000   3148048B00000

3148048B00000
Not available
18
SCREW

02112-04063-000  

02112-0406B-000
 0211204063000

Unit Price

19
DISCONTINUE<br />SCREW
DISCONTINUE
SCREW

31688-27A00-000   3168827A00000

3168827A00000
Not available
20
DISCONTINUE<br />SCREW
DISCONTINUE
SCREW

31688-27A00-000   3168827A00000

3168827A00000
Not available
21
COVER

31614-48B00-000   3161448B00000

3161448B00000
Not available
22
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

23
SERVICE KIT(A)<br />SERVICE KIT, ALTERNATOR
SERVICE KIT(A)
SERVICE KIT, ALTERNATOR

31780-27X50-000   3178027X50000

3178027X50000

Unit Price

24
DISCONTINUE<br />SPACER
DISCONTINUE
SPACER

31776-06B00-000   3177606B00000

3177606B00000
Not available
25
PLATE, ALTERNATOR ABSORBER

31615-27E00-000   3161527E00000

3161527E00000
Not available
26
BOLT

01550-08903-000  

01550-0890B-000
 0155008903000

Unit Price

27
GEAR, GENERATOR DRIVEN

22730-27A04-000  

22730-27A05-000
 2273027A04000

Unit Price

28
DISCONTINUE

22733-27A04-000  

2273327A04000
Not available
29
DAMPER,GENERATOR DRIVEN<br />DAMPER, GENERATOR DIVEN
DAMPER, GENERATOR DRIVEN
DAMPER, GENERATOR DIVEN

21231-06B00-000   2123106B00000

2123106B00000

Unit Price

30
WASHER
WASHER

08211-10283-000   0821110283000

0821110283000
Not available
31
NUT

08316-20103-000  

08316-2010B-000
 0831620103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ALTERNATOR of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
