Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STARTER MOTOR

ELECTRICAL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) FOR SUZUKI BANDIT 1200 1998

ELECTRICAL (GSF1200SAV / SAW / SAX / SAY)

Item numbers

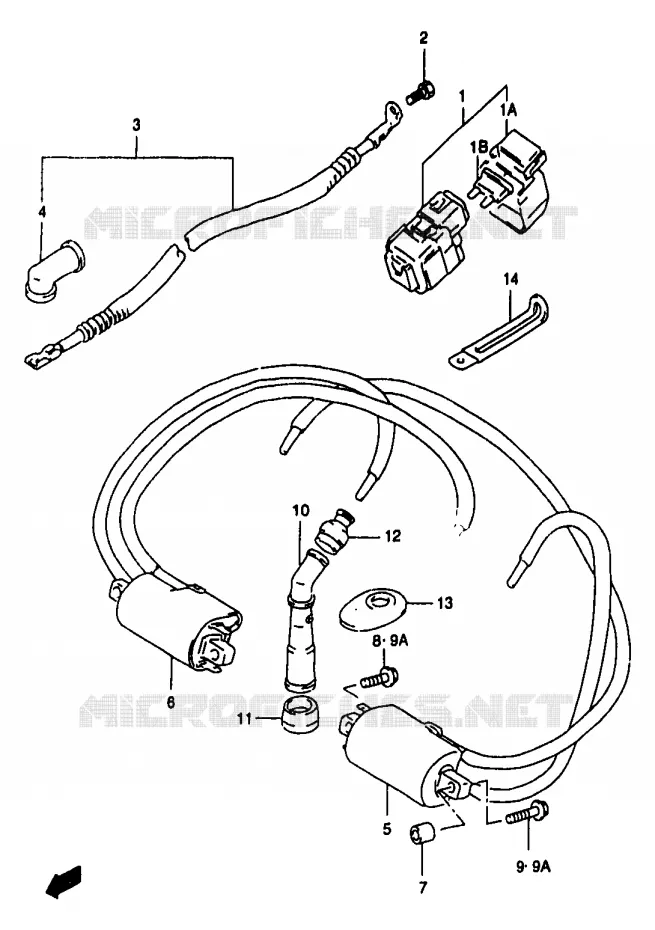

ELECTRICAL (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) Suzuki MOTO 1200 BANDIT 1998 GSF1200SW(T/V/W/X/Y)
1B
1
1A
2
3
4
5
6
7
8
9
9A
9A
10
11
12
13
14
1
RELAY ASSY, STARTING MOTOR
RELAY ASSY, STARTING MOTOR

31800-26E00-000   3180026E00000

3180026E00000

Unit Price

1A
COVER,STARTER RELAY<br />COVER
COVER, STARTER RELAY
COVER

31861-26E00-000   3186126E00000

3186126E00000

Unit Price

1B
FUSE (30A)
FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

2
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

3
DISCONTINUE
WIRE, STARTER MOTOR LEAD

33810-27E00-000   3381027E00000

3381027E00000
Not available
4
CAP, STARTER MOTOR LEAD
CAP, STARTER MOTOR LEAD

31861-48B10-000   3186148B10000

3186148B10000

Unit Price

5
COIL ASSY, IGNITION
COIL ASSY, IGNITION

33410-26E01-000   3341026E01000

3341026E01000

Unit Price

6
DISCONTINUE<br />COIL ASSY, IGNITION
DISCONTINUE
COIL ASSY, IGNITION

33420-26E01-000   3342026E01000

3342026E01000
Not available
7
SPACER (6X12X10)
SPACER (6X12X10)

09180-06095-000   0918006095000

0918006095000

Unit Price

8
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

9
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

9A
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

10
CAP, SPARK PLUG
CAP, SPARK PLUG

33510-48B10-000   3351048B10000

3351048B10000

Unit Price

11
SEAL, SPARK PLUG CAP
SEAL, SPARK PLUG CAP

33541-23E01-000   3354123E01000

3354123E01000

Unit Price

12
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

13
COVER, SPARK PLUG CAP
COVER, SPARK PLUG CAP

33543-48B00-000   3354348B00000

3354348B00000

Unit Price

14
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
