TIMING

CARBURETOR FOR SUZUKI BANDIT 1200 1998

CARBURETOR FITTING

Item numbers

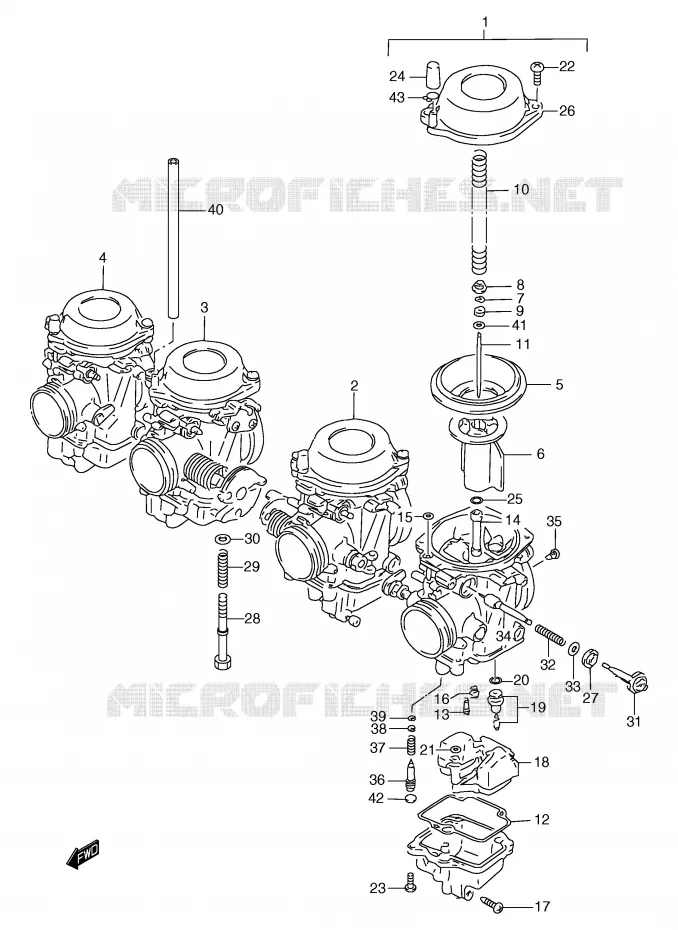

CARBURETOR Suzuki MOTO 1200 BANDIT 1998 GSF1200W(E2)
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
43
1
DISCONTINUE
CARBURETOR ASSY, LH

13201-27E11-000   1320127E11000

1320127E11000
Not available
1
CARBURETOR ASSY, LH

13201-27E31-000   1320127E31000

1320127E31000
Not available
1
CARBURETOR ASSY, LH

13201-27E40-000   1320127E40000

1320127E40000
Not available
1
CARBURETOR ASSY, LH

13201-27E70-000   1320127E70000

1320127E70000
Not available
2
DISCONTINUE
CARBURETOR ASSY, ML

13202-27E11-000   1320227E11000

1320227E11000
Not available
2
CARBURETOR ASSY, ML

13202-27E30-000   1320227E30000

1320227E30000
Not available
2
CARBURETOR ASSY, ML

13202-27E40-000   1320227E40000

1320227E40000
Not available
2
CARBURETOR ASSY, ML

13202-27E70-000   1320227E70000

1320227E70000
Not available
3
DISCONTINUE
CARBURETOR ASSY, MR

13203-27E11-000   1320327E11000

1320327E11000
Not available
3
CARBURETOR ASSY, MR

13203-27E31-000   1320327E31000

1320327E31000
Not available
3
CARBURETOR ASSY, MR

13203-27E40-000   1320327E40000

1320327E40000
Not available
3
CARBURETOR ASSY, MR

13203-27E70-000   1320327E70000

1320327E70000
Not available
4
DISCONTINUE
CARBURETOR ASSY, RH

13204-27E11-000   1320427E11000

1320427E11000
Not available
4
CARBURETOR ASSY, RH

13204-27E31-000   1320427E31000

1320427E31000
Not available
4
CARBURETOR ASSY, RH

13204-27E40-000   1320427E40000

1320427E40000
Not available
4
CARBURETOR ASSY, RH

13204-27E70-000   1320427E70000

1320427E70000
Not available
5
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

6
VALVE, PISTON
VALVE, PISTON

13501-02D00-000   1350102D00000

1350102D00000

Unit Price

7
E RING
E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

8
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

9
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

10
SPRING

13417-07C30-000   1341707C30000

1341707C30000

Unit Price

11
NEEDLE,JET<br />NEEDLE, JET (5D76-4)
NEEDLE, JET
NEEDLE, JET (5D76-4)

13383-27E00-000   1338327E00000

1338327E00000

Unit Price

11
NEEDLE, JET (5D55-2)

13383-26D30-000   1338326D30000

1338326D30000
Not available
12
GASKET,FLOAT CAHMBER<br />GASKET
GASKET, FLOAT CAHMBER
GASKET

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

13
JET,PILOT<br />JET, PILOT (37.5)
JET, PILOT
JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

14
JET,NEEDLE<br />JET, NEEDLE (O-8)
JET, NEEDLE
JET, NEEDLE (O-8)

09494-00638-000   0949400638000

0949400638000

Unit Price

15
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price

16
JET,MAIN<br />JET, MAIN (102.5)
JET, MAIN
JET, MAIN (102.5)

09491-20012-000   0949120012000

0949120012000

Unit Price

17
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

18
FLOAT ASSY
FLOAT ASSY

13240-14D10-000   1324014D10000

1324014D10000

Unit Price

19
VALVE ASSY, NEEDLE(NI)

13370-46E10-000  

13370-46E21-000
 1337046E10000

Unit Price

20
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

21
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

22
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

23
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

24
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

25
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

26
DISCONTINUE<br />COVER, DIAPHRAGM
DISCONTINUE
COVER, DIAPHRAGM

13502-17E20-000   1350217E20000

1350217E20000
Not available
27
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

28
DISCONTINUE<br />ADJUSTER
DISCONTINUE
ADJUSTER

13267-14D10-000   1326714D10000

1326714D10000
Not available
29
SPRING
SPRING

13375-14D10-000   1337514D10000

1337514D10000

Unit Price

30
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

31
HOLDER,GUIDE<br />HOLDER
HOLDER, GUIDE
HOLDER

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

32
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

33
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

34
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

35
JET,PILOT AIR,1.4<br />JET, AIR (1.4)
JET, PILOT AIR, 1.4
JET, AIR (1.4)

09493-28006-000   0949328006000

0949328006000

Unit Price

35
JET, PILOT AIR(1.5)
JET, AIR (1.5)

09493-30004-000   0949330004000

0949330004000

Unit Price

36
SCREW,PILOT<br />SCREW, PILOT (1,3/4)
SCREW, PILOT
SCREW, PILOT (1, 3/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

37
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

38
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

39
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

40
HOSE(5X9X600)
HOSE(5X9X600)

09352-50903-600  

09352-50006-600
 0935250903600

Unit Price

41
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

42
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

43
CLIP
CLIP

13671-05A40-000   1367105A40000

1367105A40000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 1998

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME (GSF1200T/ST/V/SV) for Suzuki BANDIT 1200 1998

FRAME (GSF1200T / ST / V / SV)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAV) for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAV)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200W/SW) for Suzuki BANDIT 1200 1998

FRAME (GSF1200W / SW)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAW) for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAW)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200X/SX) for Suzuki BANDIT 1200 1998

FRAME (GSF1200X / SX)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAX) for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAX)
for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAY) for Suzuki BANDIT 1200 1998

FRAME (GSF1200SAY)
for Suzuki BANDIT 1200 1998

FOOTREST (MODEL T) for Suzuki BANDIT 1200 1998

FOOTREST (MODEL T)
for Suzuki BANDIT 1200 1998

FOOTREST (MODEL V/W/X) for Suzuki BANDIT 1200 1998

FOOTREST (MODEL V / W / X)
for Suzuki BANDIT 1200 1998

FOOTREST (MODEL Y) for Suzuki BANDIT 1200 1998

FOOTREST (MODEL Y)
for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL T/V) for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL T / V)
for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL W/X) for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL W / X)
for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL Y) for Suzuki BANDIT 1200 1998

FUEL TANK (MODEL Y)
for Suzuki BANDIT 1200 1998

FAIRING (MODEL T) for Suzuki BANDIT 1200 1998

FAIRING (MODEL T)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200V/SV) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200V / SV)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAV) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAV)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200W/SW) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200W / SW)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAW) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAW)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200X/SX) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200X / SX)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAX) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAX)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200Y/SY) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200Y / SY)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAY) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SAY)
for Suzuki BANDIT 1200 1998

FRONT FENDER (GSF1200T/V/W/X/Y) for Suzuki BANDIT 1200 1998

FRONT FENDER (GSF1200T / V / W / X / Y)
for Suzuki BANDIT 1200 1998

FRONT FENDER (GSF1200ST/SV/SAV/SW/SAW/SX/SAX/SY/SAY) for Suzuki BANDIT 1200 1998

FRONT FENDER (GSF1200ST / SV / SAV / SW / SAW / SX / SAX / SY / SAY)
for Suzuki BANDIT 1200 1998

REAR FENDER (GSF1200T/ST/V/SV/W/SW/X/SX/Y/SY) for Suzuki BANDIT 1200 1998

REAR FENDER (GSF1200T / ST / V / SV / W / SW / X / SX / Y / SY)
for Suzuki BANDIT 1200 1998

REAR FENDER (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

REAR FENDER (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200ST/SV/SAV) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200ST / SV / SAV)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SW/SAW) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SW / SAW)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SX/SAX) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SX / SAX)
for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SY/SAY) for Suzuki BANDIT 1200 1998

FAIRING (GSF1200SY / SAY)
for Suzuki BANDIT 1200 1998

FRONT FAIRING STAY (GSF1200ST/SV/SAV/SW/SAW/SX/SAX/SY/SAY) for Suzuki BANDIT 1200 1998

FRONT FAIRING STAY (GSF1200ST / SV / SAV / SW / SAW / SX / SAX / SY / SAY)
for Suzuki BANDIT 1200 1998

LABEL (MODEL T/V/W/X) for Suzuki BANDIT 1200 1998

LABEL (MODEL T / V / W / X)
for Suzuki BANDIT 1200 1998

LABEL (MODEL Y) for Suzuki BANDIT 1200 1998

LABEL (MODEL Y)
for Suzuki BANDIT 1200 1998

SEAT for Suzuki BANDIT 1200 1998

SEAT
for Suzuki BANDIT 1200 1998

STAND for Suzuki BANDIT 1200 1998

STAND
for Suzuki BANDIT 1200 1998

HANDLEBAR for Suzuki BANDIT 1200 1998

HANDLEBAR
for Suzuki BANDIT 1200 1998

LEVERS HANDGRIPS for Suzuki BANDIT 1200 1998

LEVERS - HANDGRIPS
for Suzuki BANDIT 1200 1998

RIGHT SWITCH HANDGRIP for Suzuki BANDIT 1200 1998

RIGHT SWITCH - HANDGRIP
for Suzuki BANDIT 1200 1998

FRONT FORK (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

FRONT FORK (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

FRONT FORK (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT FORK (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

STEERING COLUMN (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

STEERING COLUMN (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

STEERING COLUMN (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

STEERING COLUMN (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT WHEEL (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

FRONT WHEEL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

FRONT WHEEL (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT WHEEL (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT CALIPER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

FRONT CALIPER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

FRONT CALIPER (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT CALIPER (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT BRAKE HOSE (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

FRONT BRAKE HOSE (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

ABS SYSTEM (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

ABS SYSTEM (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT BRAKE PIPE (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT BRAKE PIPE (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT BRAKE HOSE (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT BRAKE HOSE (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

FRONT MASTER CYLINDER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

FRONT MASTER CYLINDER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

FRONT MASTER CYLINDER (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

FRONT MASTER CYLINDER (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

SWINGARM (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

SWINGARM (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

SWINGARM (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

SWINGARM (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

SHOCK ABSORBER LINKAGE (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

SHOCK ABSORBER LINKAGE (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

SHOCK ABSORBER LINKAGE (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

SHOCK ABSORBER LINKAGE (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

REAR WHEEL (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

REAR WHEEL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

REAR WHEEL (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

REAR WHEEL (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

REAR CALIPER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

REAR CALIPER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

REAR CALIPER (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

REAR CALIPER (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

REAR BRAKE MASTER CYLINDER (GSF1200T/V/W/X/Y/ST/SV/SW/SX/SY) for Suzuki BANDIT 1200 1998

REAR BRAKE MASTER CYLINDER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY)
for Suzuki BANDIT 1200 1998

REAR BRAKE MASTER CYLINDER (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

REAR BRAKE MASTER CYLINDER (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

REAR BRAKE HOSE (GSF1200SAV/SAW/SAX/SAY) for Suzuki BANDIT 1200 1998

REAR BRAKE HOSE (GSF1200SAV / SAW / SAX / SAY)
for Suzuki BANDIT 1200 1998

Suzuki 1200 BANDIT 1998

Select your Suzuki 1998 model

1200 BANDIT 1998 GSF1200W(E2)

BANDIT 1200

Suzuki BANDIT

Displacement: 1200 cc
Year: 1998
Model code GSF1200W(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
