Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR WHEEL (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.58A(L-7) FOR GSF1200SAV/SAW/SAX/SAY

REAR WHEEL (GSF1200SAV / SAW / SAX / SAY) FOR SUZUKI BANDIT 1200 2000

REAR CALIPER (GSF1200T / V / W / X / Y / ST / SV / SW / SX / SY) REFER TO FIG.59A(L-9) FOR GSF1200SAV/SAW/SAX/SAY

Item numbers

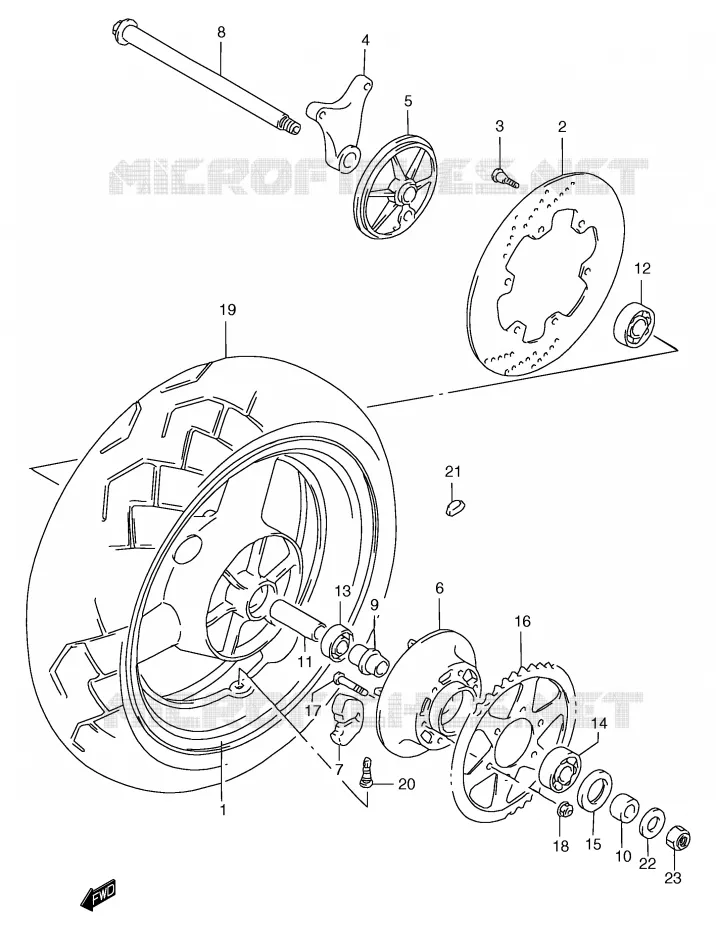

REAR WHEEL (GSF1200SAV/SAW/SAX/SAY) Suzuki MOTO 1200 BANDIT 2000 GSF1200SAY(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
1
DISCONTINUE

64100-27810-35W  

641002781035W
Not available
2
DISC,RR BRAKE<br />DISC, REAR BRAKE
DISC, RR BRAKE
DISC, REAR BRAKE

69211-27E50-000   6921127E50000

6921127E50000
Not available
3
BOLT, 8X33

09106-08125-000  

09106-08148-000
 0910608125000

Unit Price

4
DISCONTINUE<br />BRACKET, REAR CALIPER
DISCONTINUE
BRACKET, REAR CALIPER

69721-27E50-000   6972127E50000

6972127E50000
Not available
5
DISCONTINUE<br />PANEL, SPEED SENSOR REAR
DISCONTINUE
PANEL, SPEED SENSOR REAR

65720-27E50-000   6572027E50000

6572027E50000
Not available
6
DISCONTINUE<br />DRUM, REAR SPROCKET
DISCONTINUE
DRUM, REAR SPROCKET

64610-46E10-000   6461046E10000

6461046E10000
Not available
7
ABSORBER,RR HUB SHOCK<br />ABSORBER, REAR HUB SHOCK
ABSORBER, RR HUB SHOCK
ABSORBER, REAR HUB SHOCK

64651-17E00-000   6465117E00000

6465117E00000

Unit Price

8
DISCONTINUE<br />AXLE, REAR
DISCONTINUE
AXLE, REAR

64711-17E30-000   6471117E30000

6471117E30000
Not available
9
RETAINER,RR HUB BEARING<br />RETAINER, REAR HUB BEARING
RETAINER, RR HUB BEARING
RETAINER, REAR HUB BEARING

64733-48B00-000   6473348B00000

6473348B00000

Unit Price

10
SPACER,RR AXLE,L<br />SPACER, REAR AXLE LH
SPACER, RR AXLE, L
SPACER, REAR AXLE LH

64751-46E00-000   6475146E00000

6475146E00000

Unit Price

11
SPACER,RR WHEEL HUB BEARING<br />SPACER, REAR WHEEL HUB BEARING
SPACER, RR WHEEL HUB BEARING
SPACER, REAR WHEEL HUB BEARING

64731-40C00-000   6473140C00000

6473140C00000

Unit Price

12
BEARING 20X47X14<br />BEARING, RH (20X47X14)
BEARING 20X47X14
BEARING, RH (20X47X14)

09262-20114-000   0926220114000

0926220114000

Unit Price

13
BALL BEARING 20X47X1<br />BEARING, LH (20X47X14)
BALL BEARING 20X47X1
BEARING, LH (20X47X14)

09262-20042-000   0926220042000

0926220042000

Unit Price

14
BEARING<br />BEARING (25X62X17)
BEARING
BEARING (25X62X17)

09262-25114-000   0926225114000

0926225114000

Unit Price

15
SEAL,OIL 35X62X8<br />OIL SEAL (35X62X8)
SEAL, OIL 35X62X8
OIL SEAL (35X62X8)

09285-35001-000   0928535001000

0928535001000

Unit Price

16
SPROCKET,RR(NT:45-530)<br />SPROCKET, REAR (NT:45)
SPROCKET, RR(NT:45-530)
SPROCKET, REAR (NT:45)

64511-27E00-000   6451127E00000

6451127E00000

Unit Price

17
BOLT<br />BOLT (10X42)
BOLT
BOLT (10X42)

09119-10037-000   0911910037000

0911910037000

Unit Price

18
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

19
TIRE, REAR 180/55 ZR17 (73W) (BRIDGESTONE)

65110-27E30-000   6511027E30000

6511027E30000
Not available
20
VALVE ASSY, WHEEL RIM (TR412)
VALVE ASSY, WHEEL RIM (TR412)

43130-24A00-000   4313024A00000

4313024A00000

Unit Price

21
BALANCER, WHEEL(10G)

55411-00A00-000  

55411-17G00-000
 5541100A00000

Unit Price

21
BALANCER, WHEEL(20G)

55412-00A01-000  

55412-17G00-000
 5541200A01000

Unit Price

22
WASHER (18.5X28X2.6)
WASHER (18.5X28X2.6)

09160-18030-000   0916018030000

0916018030000

Unit Price

23
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL (GSF1200SAV/SAW/SAX/SAY) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
