Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

OIL PAN FOR SUZUKI BANDIT 1200 2000

OIL PUMP

Item numbers

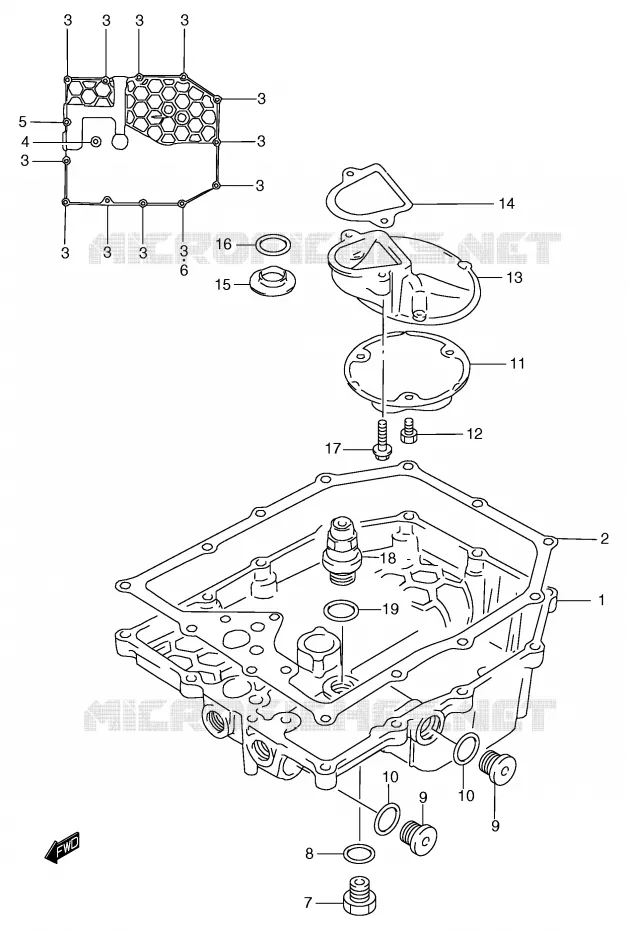

OIL PAN Suzuki MOTO 1200 BANDIT 2000 GSF1200SY(E2)
1
1
2
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
1
PAN, OIL

11511-26E00-000  

11511-26E01-000
 1151126E00000

Unit Price

1
DISCONTINUE

11511-26E10-000  

1151126E10000
Not available
2
GASKET, OIL PAN

11489-27A20-000  

11489-27A21-000
 1148927A20000

Unit Price

3
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

4
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

5
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

6
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

6
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
7
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

8
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

9
PLUG,OIL<br />PLUG OIL GALL NO.1/OIL PUMP
PLUG, OIL
PLUG OIL GALL NO.1/OIL PUMP

09248-16012-000   0924816012000

0924816012000

Unit Price

10
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

11
STRAINER,ENGINE OIL<br />STRAINER, OIL
STRAINER, ENGINE OIL
STRAINER, OIL

16520-09301-000   1652009301000

1652009301000

Unit Price

12
BOLT

01570-06123-000  

01570-0612A-000
 0157006123000

Unit Price

13
PROTECTOR, OIL STRAINER
PROTECTOR, OIL STRAINER

16525-06B00-000   1652506B00000

1652506B00000

Unit Price

14
GASKET, OIL STR PROTECTOR

16528-27A20-000  

16528-27A21-000
 1652827A20000

Unit Price

15
GASKET, OIL OUTLET
GASKET, OIL OUTLET

16529-27A01-000   1652927A01000

1652927A01000

Unit Price

16
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

17
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

18
VALVE ASSY, OIL RELIEF

16440-17C01-000  

16440-17C10-000
 1644017C01000

Unit Price

19
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PAN of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1200 BANDIT 2000
