HEADLIGHT (GSF1200SK1 / SK2 / SK3 / SK4 / SK5 / SZK5 E24)

INDICATORS (GSF1200K1 / K2 / K3 / K4 / ZK4 / K5 / ZK5) FOR SUZUKI BANDIT 1200 2003

INDICATORS (GSF1200SK1 / SK2 / SK3 / SK4 / K5 / ZK5)

Item numbers

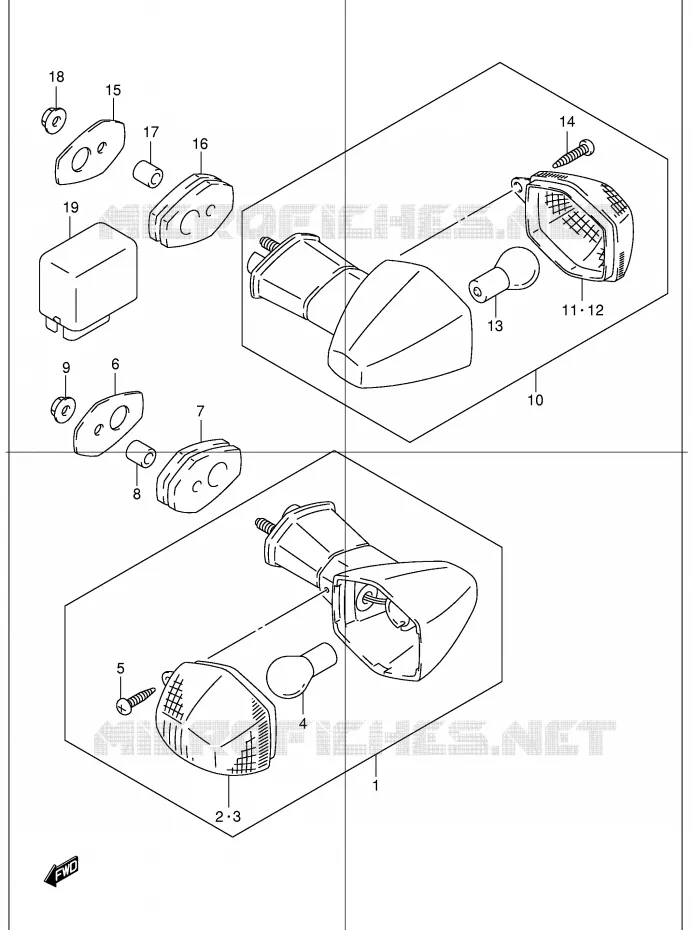

INDICATORS (GSF1200K1/K2/K3/K4/ZK4/K5/ZK5) Suzuki MOTO 1200 BANDIT 2003 GSF1200SK3(E2)
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY,FR TURN SIGNAL,R<br />LAMP ASSY, FRONT TURN RH
LAMP ASSY, FR TURN SIGNAL, R
LAMP ASSY, FRONT TURN RH

35601-31F30-000   3560131F30000

3560131F30000

Unit Price

1
LAMP ASSY, FR TURN SIGNAL, L
LAMP ASSY, FRONT TURN LH

35602-31F30-000   3560231F30000

3560231F30000

Unit Price

2
LENS<br />LENS, RH
LENS
LENS, RH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

3
LENS
LENS, LH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

4
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

5
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

6
PLATE,FR TURNSIGNAL<br />PLATE, FRONT TURN
PLATE, FR TURNSIGNAL
PLATE, FRONT TURN

35629-31F00-000   3562931F00000

3562931F00000

Unit Price

7
DISCONTINUE<br />CUSHION
DISCONTINUE
CUSHION

35690-31F50-000  

3569031F50000
Not available
8
SPACER (5.5X9.5X10)
SPACER (5.5X9.5X10)

09180-05301-000   0918005301000

0918005301000

Unit Price

9
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

10
LAMP ASSY,RR TURNSIGNAL,R<br />LAMP ASSY, REAR TURN RH
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURN RH

35603-31F30-000   3560331F30000

3560331F30000

Unit Price

10
LAMP ASSY,RR TURNSIGNAL,L<br />LAMP ASSY, REAR TURN LH
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURN LH

35604-31F30-000   3560431F30000

3560431F30000

Unit Price

11
LENS
LENS, RH

35632-31F30-000   3563231F30000

3563231F30000

Unit Price

12
LENS<br />LENS, LH
LENS
LENS, LH

35612-31F30-000   3561231F30000

3561231F30000

Unit Price

13
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

14
SCREW

03242-04163-000  

03242-0416B-000
 0324204163000

Unit Price

15
PLATE,FR TURNSIGNAL<br />PLATE, REAR TURN
PLATE, FR TURNSIGNAL
PLATE, REAR TURN

35629-31F00-000   3562931F00000

3562931F00000

Unit Price

16
CUSHION,FRONT TURNSI
CUSHION, FRONT TURNSI

35690-31F00-000  

35690-31F01-000
 3569031F00000

Unit Price

17
SPACER (5.5X9.5X10)
SPACER (5.5X9.5X10)

09180-05301-000   0918005301000

0918005301000

Unit Price

18
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

19
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (GSF1200K1/K2/K3/K4/ZK4/K5/ZK5) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
