FUEL TANK (MODEL K4) REFER TO FIG.41C(G-12) FOR GSF1200ZK4

FUEL TANK (GSF1200ZK4) FOR SUZUKI BANDIT 1200 2004

FUEL TANK (MODEL K5)

Item numbers

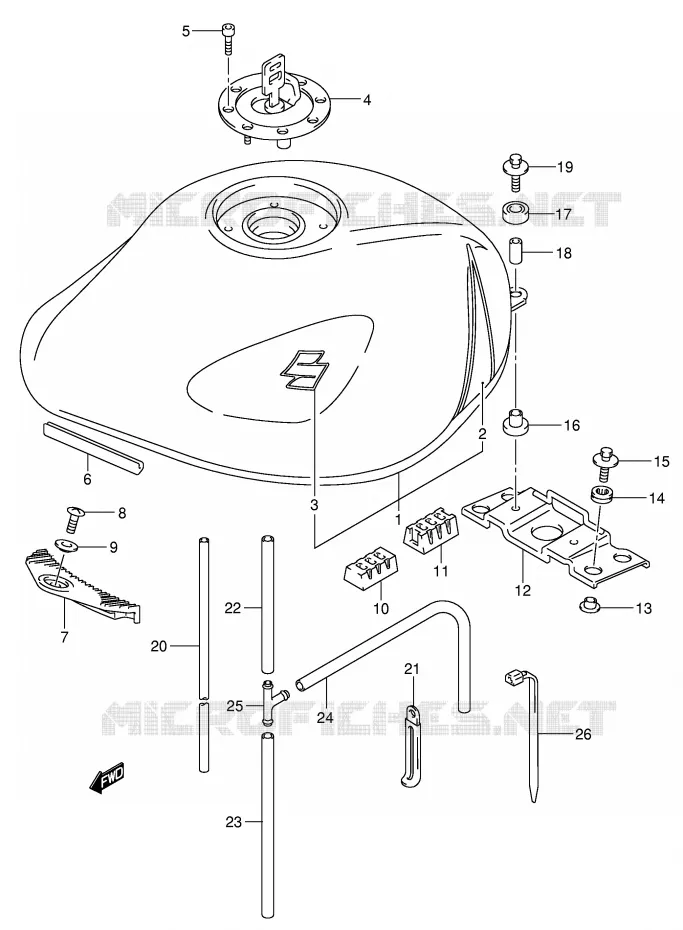

FUEL TANK (GSF1200ZK4) Suzuki MOTO 1200 BANDIT 2004 GSF1200K4(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
TANK ASSY, FUEL

44100-32F00-LR5   4410032F00LR5

4410032F00LR5
Not available
2
TAPE SET, FUEL TANK

68110-32F00-ML8   6811032F00ML8

6811032F00ML8
Not available
3
EMBLEM, FUEL TANK

68111-18G00-ABF  

68111-18G01-0AT
 6811118G00ABF

Unit Price

4
DISCONTINUE
CAP SET, FUEL TANK

44201-33810-000  

4420133810000
Not available
5
BOLT (L:20)
BOLT (L:20)

09106-05017-000   0910605017000

0910605017000

Unit Price

6
MOLDING
MOLDING

68241-04X50-00B   6824104X5000B

6824104X5000B

Unit Price

7
CUSHION,FUEL TANK FR<br />CUSHION, FUEL TANK FRONT
CUSHION, FUEL TANK FR
CUSHION, FUEL TANK FRONT

44511-27E00-000   4451127E00000

4451127E00000

Unit Price

8
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

9
WASHER
WASHER

09169-05012-000   0916905012000

0916905012000

Unit Price

10
CUSHION,SUPPORT(50X25X32)<br />CUSHION, SIDE
CUSHION, SUPPORT(50X25X32)
CUSHION, SIDE

45149-45330-000   4514945330000

4514945330000

Unit Price

11
CUSHION,TANK SIDE<br />CUSHION, FUEL TANK SIDE
CUSHION, TANK SIDE
CUSHION, FUEL TANK SIDE

44541-31F00-000   4454131F00000

4454131F00000

Unit Price

12
DISCONTINUE
BRACKET, REAR

44550-31F01-000   4455031F01000

4455031F01000
Not available
13
WASHER<br />WASHER, LOWER
WASHER
WASHER, LOWER

09169-06062-000   0916906062000

0916906062000

Unit Price

14
RR COMB LAMP CUSHION<br />CUSHION, BRACKET
RR COMB LAMP CUSHION
CUSHION, BRACKET

09320-09009-000   0932009009000

0932009009000

Unit Price

15
BOLT, BRACKET

09116-06146-000   0911606146000

0911606146000
Not available
16
CUSHION<br />CUSHION, LOWER
CUSHION
CUSHION, LOWER

09320-10038-000   0932010038000

0932010038000

Unit Price

17
CUSHION,FUEL TANK RR<br />CUSHION, UPPER
CUSHION, FUEL TANK RR
CUSHION, UPPER

44512-42E00-000   4451242E00000

4451242E00000

Unit Price

18
SPACER (6.5X9X18)
SPACER (6.5X9X18)

09180-06271-000   0918006271000

0918006271000

Unit Price

19
BOLT<br />BOLT (6X30)
BOLT
BOLT (6X30)

09116-06172-000   0911606172000

0911606172000

Unit Price

20
DISCONTINUE
HOSE (L:2000->80)

09352-70113-00B  

093527011300B
Not available
21
CLAMP,L:97<br />CLAMP
CLAMP, L:97
CLAMP

09404-10417-000   0940410417000

0940410417000

Unit Price

22
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

23
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

24
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

25
HOSE,3-WAY<br />3 WAY
HOSE, 3-WAY
3 WAY

09367-06002-000   0936706002000

0936706002000

Unit Price

26
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (GSF1200ZK4) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
