FRONT CALIPER

FRONT BRAKE HOSE FOR SUZUKI BANDIT 1200 2004

FRONT MASTER CYLINDER (GSF1200K1 / K2 / K3 / K4 / ZK4 / K5 / ZK5) REFER TO FIG.64(J-15) FOR GSF1200SK1/SK2/SK3/SK4/SK5/SZK5

Item numbers

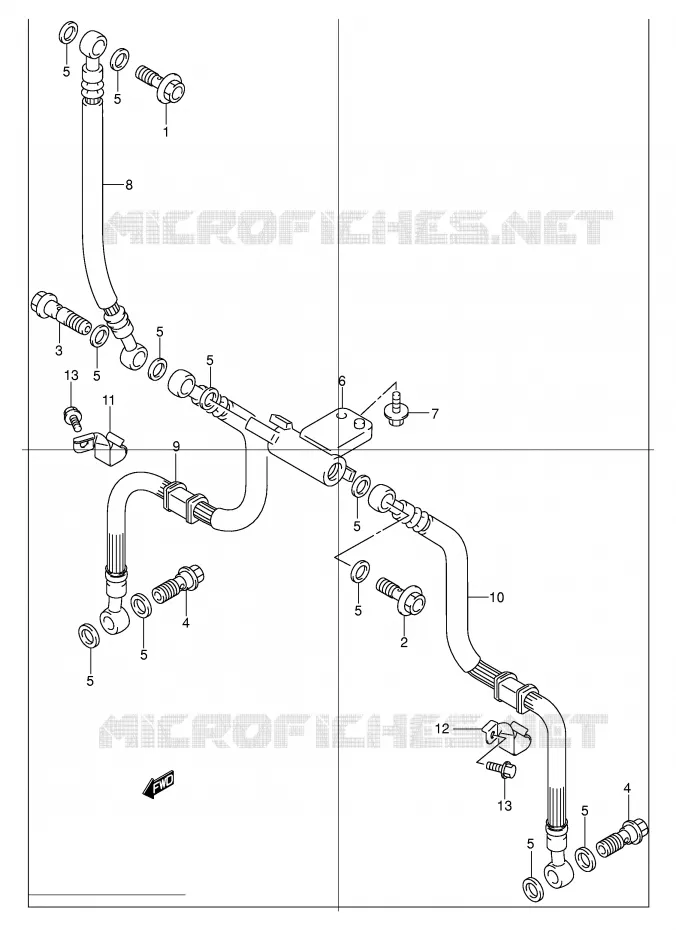

FRONT BRAKE HOSE Suzuki MOTO 1200 BANDIT 2004 GSF1200ZK4(E2)
1
2
3
4
4
5
5
5
5
5
5
5
5
5
5
5
6
7
8
8
8
8
9
9
10
10
11
12
13
13
1
UNION

09360-10041-000  

09360-10061-000
 0936010041000

Unit Price

2
UNION

09360-10041-000  

09360-10061-000
 0936010041000

Unit Price

3
UNION

09360-10043-000  

09360-10063-000
 0936010043000

Unit Price

4
BOLT, BRAKE FLUID

09360-10042-000  

09360-10062-000
 0936010042000

Unit Price

5
WASHER<br />WASHER (10X15X1.5)
WASHER
WASHER (10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

6
JOINT, BRAKE HOSE
JOINT, BRAKE HOSE

59491-17E00-000   5949117E00000

5949117E00000

Unit Price

7
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
8
HOSE, FRONT BRAKE NO.1

59480-31F00-000   5948031F00000

5948031F00000
Not available
8
DISCONTINUE
HOSE, FRONT BRAKE NO.1

59480-31F10-000   5948031F10000

5948031F10000
Not available
8
HOSE, FRONT BRAKE NO.1

59480-31F20-000   5948031F20000

5948031F20000
Not available
8
HOSE, FRONT BRAKE NO.1

59480-31F30-000   5948031F30000

5948031F30000
Not available
9
DISCONTINUE
HOSE, FRONT BRAKE NO.2 RH

59240-32F00-000  

5924032F00000
Not available
9
HOSE, FRONT BRAKE NO.2 RH

59240-32F10-000   5924032F10000

5924032F10000
Not available
10
59440-32F11
HOSE, FRONT BRAKE NO.2 LH

59440-32F00-000  

5944032F00000
Not available
10
HOSE, FRONT BRAKE NO.2 LH

59440-32F10-000   5944032F10000

5944032F10000
Not available
11
DISCONTINUE
CLAMP, BRAKE HOSE NO.2 RH

59268-32F00-000   5926832F00000

5926832F00000
Not available
12
DISCONTINUE
CLAMP, BRAKE HOSE NO.2 LH

59269-32F00-000   5926932F00000

5926932F00000
Not available
13
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT BRAKE HOSE of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
