SPEEDOMETER (GSF1200K1) FOR SUZUKI BANDIT 1200 2005

SPEEDOMETER (GSF1200K2 / K3 / K4 / K5 / ZK4 / ZK5) REFER TO FIG.27 (E- 6) FOR GSF1200SK1

Item numbers

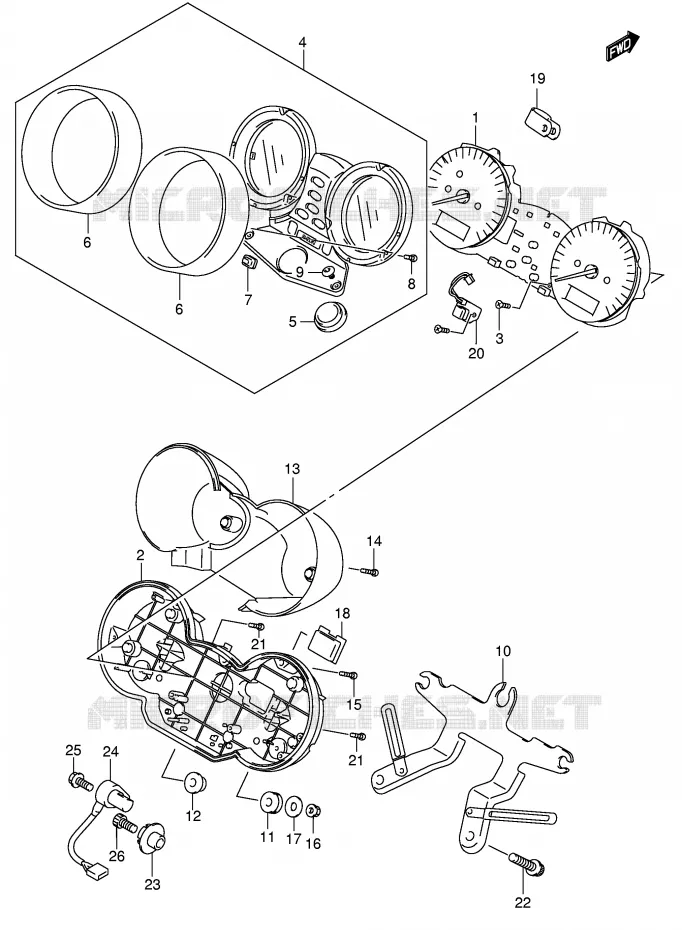

SPEEDOMETER (GSF1200K1) Suzuki MOTO 1200 BANDIT 2005 GSF1200SZK5(E2)
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
1
SPEEDOMETER (KILO)

34120-31F50-000   3412031F50000

3412031F50000
Not available
1
DISCONTINUE
SPEEDOMETER (MILE/KILO)

34120-31F60-000   3412031F60000

3412031F60000
Not available
2
CASE ASSY,LWR<br />LOWER CASE ASSY
CASE ASSY, LWR
LOWER CASE ASSY

34111-31F10-000   3411131F10000

3411131F10000

Unit Price

3
SCREW (4X14)

34149-17E10-000   3414917E10000

3414917E10000

Unit Price

4
UPPER CASE ASSY

34150-31F10-000   3415031F10000

3415031F10000
Not available
5
DAMPER

34188-31F10-000   3418831F10000

3418831F10000
Not available
6
RING

34193-31F10-000   3419331F10000

3419331F10000

Unit Price

7
RUBBER, SWITCH

34124-31F10-000   3412431F10000

3412431F10000

Unit Price

8
SCREW (2.3X8)

34183-31F10-000   3418331F10000

3418331F10000

Unit Price

9
TAPPING, CAP (5X10.2)

34199-31F10-000   3419931F10000

3419931F10000
Not available
10
BRACKET

34950-31F10-000   3495031F10000

3495031F10000

Unit Price

11
CUSHION
CUSHION

34189-32B00-000   3418932B00000

3418932B00000

Unit Price

12
CUSHION,SPEEDOMETER
CUSHION, SPEEDOMETER

34955-13E00-000  

34955-13E01-000
 3495513E00000

Unit Price

13
DISCONTINUE
COVER

34152-31F10-000   3415231F10000

3415231F10000
Not available
14
SCREW, PAN HEAD (3X14)
SCREW, PAN HEAD (3X14)

34149-31F10-000   3414931F10000

3414931F10000

Unit Price

15
SCREW (3X16)
SCREW (3X16)

09132-03008-000   0913203008000

0913203008000

Unit Price

16
NUT
NUT

08310-00057-000   0831000057000

0831000057000

Unit Price

17
WASHER (5.2X16X1)
WASHER (5.2X16X1)

09160-05013-000   0916005013000

0916005013000

Unit Price

18
GROMMET
GROMMET

34198-19F20-000   3419819F20000

3419819F20000

Unit Price

19
CLAMP

34179-21F00-000   3417921F00000

3417921F00000
20
DISCONTINUE
SWITCH, PRINT CIRCUIT

34177-31F10-000   3417731F10000

3417731F10000
Not available
21
SCREW, PAN HEAD(3X16)
SCREW (3X16)

34383-31F10-000   3438331F10000

3438331F10000

Unit Price

22
BOLT

07120-06163-000  

07120-06167-000
 0712006163000

Unit Price

23
ROTOR, SPEED

34981-35F00-000  

34981-38G01-000
 3498135F00000

Unit Price

24
SENSOR, SPEED
SENSOR, SPEED

34990-35F00-000   3499035F00000

3499035F00000

Unit Price

25
BOLT

07120-05123-000  

07120-0512A-000
 0712005123000

Unit Price

26
BOLT

07130-08253-000  

07130-0825B-000
 0713008253000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER (GSF1200K1) of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
