LABEL

SEAT FOR SUZUKI BANDIT 1200 2006

REAR FAIRING - SEAT COWL

Item numbers

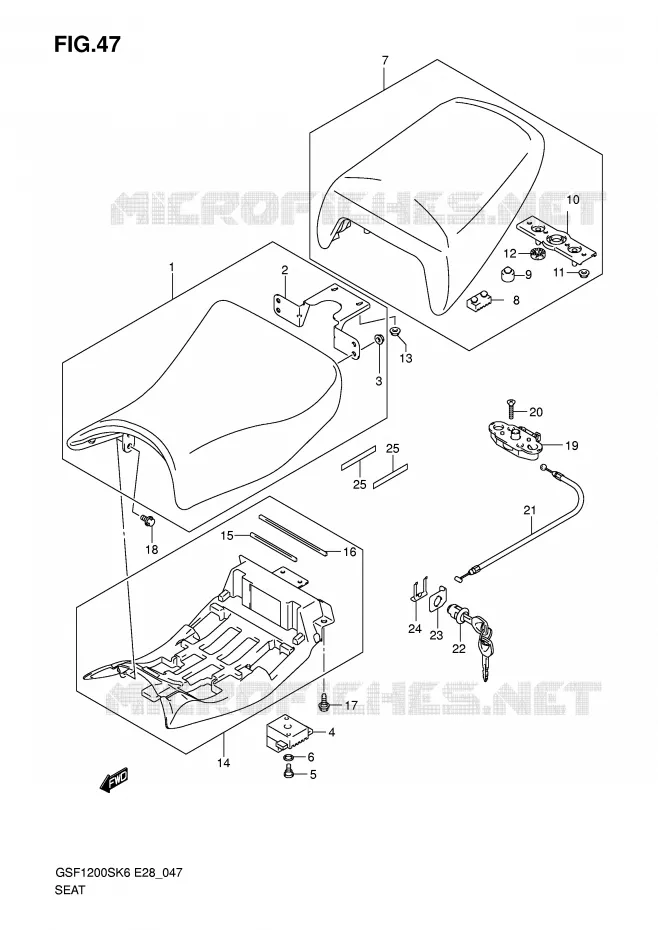

SEAT Suzuki MOTO 1200 BANDIT 2006 GSF1200SAK6(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
1
SEAT ASSY

45100-38G10-DKD  

45100-38G14-DKD
 4510038G10DKD

Unit Price

2
DISCONTINUE
BRACKET

45115-38G00-000   4511538G00000

4511538G00000
Not available
3
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

4
CUSHION, SEAT

45149-38G00-000  

45149-38G01-000
 4514938G00000

Unit Price

5
SCREW(6X16)
SCREW, SEAT CUSHION

09139-06133-000   0913906133000

0913906133000

Unit Price

6
WASHER, 10.5X18X1
WASHER, SEAT CUSHION

09160-10121-000   0916010121000

0916010121000

Unit Price

7
SEAT ASSY, PILLION

45300-38G10-W05  

45300-38G12-W05
 4530038G10W05

Unit Price

8
CUSHION
CUSHION, FRONT

45149-42F00-000   4514942F00000

4514942F00000

Unit Price

9
CUSHION
CUSHION

09321-10011-000   0932110011000

0932110011000

Unit Price

10
STRIKER, SEAT LOCK

45290-42F01-000  

45290-42F02-000
 4529042F01000

Unit Price

11
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

12
CUSHION
CUSHION

45213-31300-000   4521331300000

4521331300000

Unit Price

13
NUT

08319-31063-000  

08319-3106A-000
 0831931063000

Unit Price

14
COVER, SEAT LOWER

45410-38G02-291   4541038G02291

4541038G02291
Not available
15
DISCONTINUE
CUSHION, SEAT LOWER COVER FR

45412-38G00-000   4541238G00000

4541238G00000
Not available
16
CUSHION, SEAT LWR COVER RR
CUSHION, SEAT LOWER COVER RR

45413-38G00-000   4541338G00000

4541338G00000

Unit Price

17
BOLT<br />SCREW, SEAT LOWER COVER
BOLT
SCREW, SEAT LOWER COVER

09111-06066-000   0911106066000

0911106066000

Unit Price

18
BOLT
BOLT, SEAT LOWER COVER FR

01550-0612A-000   015500612A000

015500612A000

Unit Price

19
BRACKET, SEAT SUPPORT

45220-20A01-000  

45220-47H00-000
 4522020A01000

Unit Price

20
SCREW

02122-06303-000  

02122-0630B-000
 0212206303000

Unit Price

21
CABLE, SEAT LOCK

45280-33400-000   4528033400000

4528033400000
Not available
22
LOCK SET, SEAT
LOCK SET, SEAT

95700-14810-000   9570014810000

9570014810000

Unit Price

23
GUIDE, SEAT LOCK CABLE
GUIDE, SEAT LOCK CABLE

45288-14F00-000   4528814F00000

4528814F00000

Unit Price

24
PLATE,SEAT LOCK ASSY<br />PLATE, SEAT LOCK
PLATE, SEAT LOCK ASSY
PLATE, SEAT LOCK

45289-11F00-000   4528911F00000

4528911F00000

Unit Price

25
TAPE, SEAT LWR COVER
TAPE, SEAT LOWER COVER

45414-38G00-000   4541438G00000

4541438G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki BANDIT 1200 of BANDIT. Let us know if you have any questions.
