CYLINDER

CRANKCASE FOR SUZUKI GSX 1200 2000

CRANKCASE COVER

Item numbers

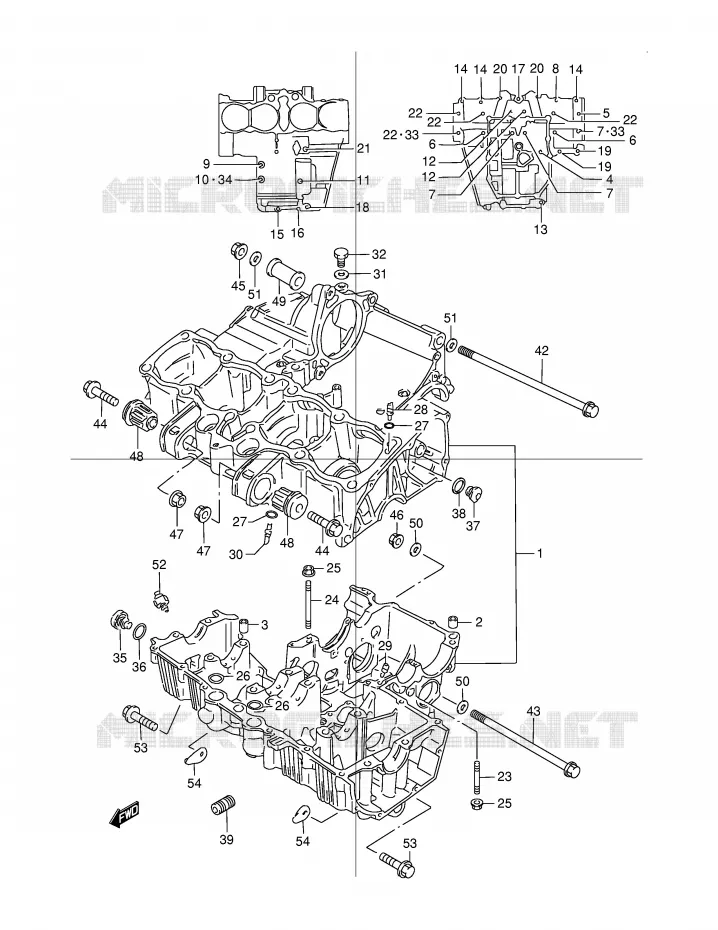

CRANKCASE Suzuki MOTO 1200 GSX 2000 GSX1200Y(E4)
1
2
3
4
5
6
6
7
7
7
8
9
10
11
12
12
13
14
14
14
15
16
17
18
19
19
20
20
21
22
22
22
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
33
34
35
36
37
38
39
42
43
44
44
45
46
47
47
48
48
49
50
50
51
51
52
53
53
54
54
1
CRANKCASE SET

11301-27821-000   1130127821000

1130127821000
Not available
2
CLUTCH COVER PI **S1<br />PIN (13X22)
CLUTCH COVER PI **S1
PIN (13X22)

09206-13004-000   0920613004000

0920613004000

Unit Price

3
PIN (11X20)
PIN (11X20)

09206-11017-000   0920611017000

0920611017000

Unit Price

4
BOLT (6X105)
BOLT (6X105)

09103-06163-000   0910306163000

0910306163000
Not available
5
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

6
BOLT (8X125)
BOLT (8X125)

09103-08182-000   0910308182000

0910308182000

Unit Price

7
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

8
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

9
BOLT

07130-06403-000  

07130-0640B-000
 0713006403000

Unit Price

10
BOLT

07120-06557-000   0712006557000

0712006557000
Not available
11
BOLT

07130-06653-000  

07130-0665B-000
 0713006653000

Unit Price

12
BOLT

07130-08653-000  

07130-0865B-000
 0713008653000

Unit Price

13
BOLT

01550-08603-000  

01550-0860B-000
 0155008603000

Unit Price

14
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

15
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

16
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

17
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

18
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

19
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

20
DISCONTINUE
BOLT

01550-06703-000  

0155006703000
Not available
21
BOLT

01550-06803-000  

01550-0680B-000
 0155006803000

Unit Price

22
BOLT (8X95)
BOLT (8X95)

09103-08066-000   0910308066000

0910308066000
Not available
23
STUD BOLT

01421-06408-000   0142106408000

0142106408000
Not available
24
BOLT, STUD

01421-06608-000  

01421-0660A-000
 0142106608000

Unit Price

25
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

26
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

27
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

28
JET
JET

09493-14002-000   0949314002000

0949314002000
Not available
29
JET
JET

09493-24010-000   0949324010000

0949324010000

Unit Price

30
JET
JET

09493-80008-000   0949380008000

0949380008000
Not available
31
GASKET OIL GALLERY<br />GASKET (12.1X16.2X3.7)
GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000   0916812002000

0916812002000
Not available
32
PLUG 2ND MUFFLER<br />PLUG
PLUG 2ND MUFFLER
PLUG

09247-12103-000   0924712103000

0924712103000

Unit Price

33
GASKET (8.5X17X2.3)
GASKET (8.5X17X2.3)

09168-08021-000   0916808021000

0916808021000

Unit Price

34
GASKET,OIL GALLERY<br />GASKET (6.2X13X1.2)
GASKET, OIL GALLERY
GASKET (6.2X13X1.2)

09168-06018-000   0916806018000

0916806018000

Unit Price

35
PLUG, OIL GALLERY

09248-16003-000  

09248-16007-000
 0924816003000

Unit Price

36
O RING (D:2.4,ID:16.8)
O RING (D:2.4, ID:16.8)

09280-17002-000   0928017002000

0928017002000

Unit Price

37
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

38
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

39
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

40
BEARING, CRANK THRUST (GREEN)
BEARING, CRANK THRUST (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

41
BEARING, CRANK THRUST (BROWN)
BEARING, CRANK THRUST (BROWN)

12228-48B00-0B0   1222848B000B0

1222848B000B0

Unit Price

41
BEARING LEFT RED<br />BEARING, CRANK THRUST (RED)
BEARING LEFT RED
BEARING, CRANK THRUST (RED)

12228-48B00-0C0   1222848B000C0

1222848B000C0

Unit Price

41
BEARING, CRANK THRUST (YELLOW)
BEARING, CRANK THRUST (YELLOW)

12228-48B00-0D0   1222848B000D0

1222848B000D0

Unit Price

41
BEARING, CRANK THRUST (GREEN)
BEARING, CRANK THRUST (GREEN)

12228-48B00-0E0   1222848B000E0

1222848B000E0

Unit Price

41
BEARING, CRANK THRUST (BLUE)
BEARING, CRANK THRUST (BLUE)

12228-48B00-0F0   1222848B000F0

1222848B000F0

Unit Price

41
BEARING, CRANK THRUST (ORANGE)
BEARING, CRANK THRUST (ORANGE)

12228-48B00-0G0   1222848B000G0

1222848B000G0

Unit Price

41
BEARING, CRANK THRUST (BLACK)
BEARING, CRANK THRUST (BLACK)

12228-48B00-0H0   1222848B000H0

1222848B000H0

Unit Price

41
DISCONTINUE<br />BEARING, CRANK THRUST (PINK)
DISCONTINUE
BEARING, CRANK THRUST (PINK)

12228-48B00-0A0   1222848B000A0

1222848B000A0
Not available
42
BOLT,L:180<br />BOLT (10X180)
BOLT, L:180
BOLT (10X180)

09103-10136-000   0910310136000

0910310136000

Unit Price

43
BOLT (12X140)

09100-12053-000   0910012053000

0910012053000
Not available
44
BOLT(10X55)

09103-10289-000  

09103-10375-000
 0910310289000

Unit Price

45
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

46
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

47
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

48
BUSH,ENGINE MOUNTING
BUSH, ENGINE MOUNTING

11681-06B00-000  

11681-06B01-000
 1168106B00000

Unit Price

49
SPACER,ENGINE MOUNT(L27)<br />SPACER, ENGINE MOUNT (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER, ENGINE MOUNT (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

50
WASHER

08322-01123-000  

08322-0112B-000
 0832201123000

Unit Price

51
WASHER

08322-01103-000  

08322-0110B-000
 0832201103000

Unit Price

52
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

53
BOLT

09103-10307-000   0910310307000

0910310307000
Not available
54
ENGINE MOUNT NUT N02<br />NUT
ENGINE MOUNT NUT N02
NUT

09159-10020-000   0915910020000

0915910020000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of GSX. Let us know if you have any questions.
