Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI GSX 1200 2001

ALTERNATOR

Item numbers

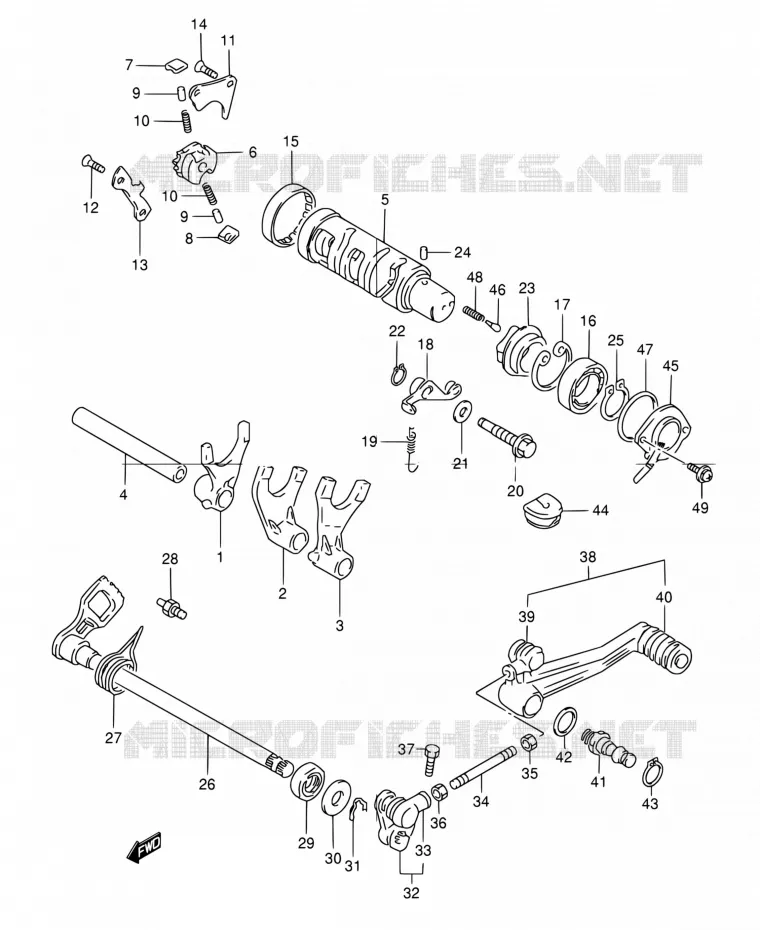

GEAR SHIFTING ASSY Suzuki MOTO 1200 GSX 2001 GSX1200K1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
FORK, GEAR SHIFT NO.1

25211-06B01-000  

25211-06B02-000
 2521106B01000

Unit Price

2
FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFT NO.2

25221-06B00-000   2522106B00000

2522106B00000

Unit Price

3
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFT NO.3

25231-06B00-000   2523106B00000

2523106B00000

Unit Price

4
SHAFT, GEAR SHIFT FORK (L:128)
SHAFT, GEAR SHIFT FORK (L:128)

25411-27A00-000   2541127A00000

2541127A00000

Unit Price

5
CAM, GEAR SHIFT
CAM, GEAR SHIFT

25310-06B03-000   2531006B03000

2531006B03000

Unit Price

6
GEAR,GEAR SHIFT CAM DRIVEN<br />GEAR, GEAR SHIFT DRIVEN
GEAR, GEAR SHIFT CAM DRIVEN
GEAR, GEAR SHIFT DRIVEN

25322-31310-000   2532231310000

2532231310000

Unit Price

7
PAWL,GEAR SHIFT NO.1<br />POLE, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1
POLE, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

8
PAWL,GEAR SHIFT NO.2<br />POLE, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2
POLE, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

9
SHIFTING PAUL ROLLER<br />ROLLER (5X8)
SHIFTING PAUL ROLLER
ROLLER (5X8)

09261-05003-000   0926105003000

0926105003000

Unit Price

10
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

11
LIFTER, GEAR SHIFT POLE

25331-31301-000   2533131301000

2533131301000
Not available
12
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

13
DISCONTINUE<br />GUIDE, GEAR SHIFT CAM
DISCONTINUE
GUIDE, GEAR SHIFT CAM

25341-27A00-000   2534127A00000

2534127A00000
Not available
14
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

15
BEARING (43X49X12)
BEARING (43X49X12)

09263-43001-000   0926343001000

0926343001000

Unit Price

16
BEARING, RH<br />BEARING
BEARING, RH
BEARING

08113-69050-000   0811369050000

0811369050000

Unit Price

17
CIRCLIP

08331-41426-000  

08331-41429-000
 0833141426000

Unit Price

18
STOPPER, GEAR SHIFT CAM
STOPPER, GEAR SHIFT CAM

25350-27A00-000   2535027A00000

2535027A00000

Unit Price

19
SPRING
SPRING

09443-09033-000   0944309033000

0944309033000

Unit Price

20
DISCONTINUE<br />SHAFT, GEAR SHIFT CAM STOPPER
DISCONTINUE
SHAFT, GEAR SHIFT CAM STOPPER

25353-27A00-000   2535327A00000

2535327A00000
Not available
21
CRNK DRAIN PLUG GASK<br />GASKET (10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

22
CIRCLIP

08331-31086-000  

08331-31089-000
 0833131086000

Unit Price

23
PLATE, STOPPER
PLATE, STOPPER

25381-38400-000   2538138400000

2538138400000

Unit Price

24
PIN (4X6)<br />PIN
PIN (4X6)
PIN

04221-04069-000   0422104069000

0422104069000

Unit Price

25
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

26
DISCONTINUE<br />SHAFT, GEAR SHIFT
DISCONTINUE
SHAFT, GEAR SHIFT

25510-19C01-000   2551019C01000

2551019C01000
Not available
27
SPRING
SPRING

09444-26017-000   0944426017000

0944426017000

Unit Price

28
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

29
09285-12006<br />OIL SEAL (12X22X9)
09285-12006
OIL SEAL (12X22X9)

09285-12002-000  

0928512002000
Not available
30
WASHER

09160-12090-000  

09160-12089-000
 0916012090000

Unit Price

31
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

32
ARM,GEAR SHIFT LINK
ARM, GEAR SHIFT LINK

25520-22A00-000  

25520-22A01-000
 2552022A00000

Unit Price

33
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

34
DISCONTINUE
ROD, GEAR SHIFT LINK

25525-03F00-000   2552503F00000

2552503F00000
Not available
35
GR SHFT LINK ROD NUT<br />NUT
GR SHFT LINK ROD NUT
NUT

09140-06011-000   0914006011000

0914006011000

Unit Price

36
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

37
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

38
LEVER ASSY, GEAR SHIFT

25600-03F10-000   2560003F10000

2560003F10000
Not available
39
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

40
RUBBER,GEAR SHIFT PEDAL<br />.RUBBER
RUBBER, GEAR SHIFT PEDAL
.RUBBER

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

41
SHAFT, GEAR SHIFT LEVER

25617-03F00-000  

25617-03F10-000
 2561703F00000

Unit Price

42
SEAL WASHER<br />WASHER (12.5X20X1)
SEAL WASHER
WASHER (12.5X20X1)

09160-12011-000  

0916012011000
Not available
43
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

44
GROMMET, LEAD WIRE
GROMMET, LEAD WIRE

33885-27A01-000   3388527A01000

3388527A01000

Unit Price

45
BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37720-20C00-000   3772020C00000

3772020C00000

Unit Price

46
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

47
O-RING,ID:35.5<br />O RING (D:2.4,ID:35.5)
O-RING, ID:35.5
O RING (D:2.4, ID:35.5)

09280-35006-000   0928035006000

0928035006000

Unit Price

48
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

49
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of GSX. Let us know if you have any questions.
