CRANKSHAFT

DISK VALVE FOR SUZUKI AUTRES-MODELES 125 1982

CARBURETOR

Item numbers

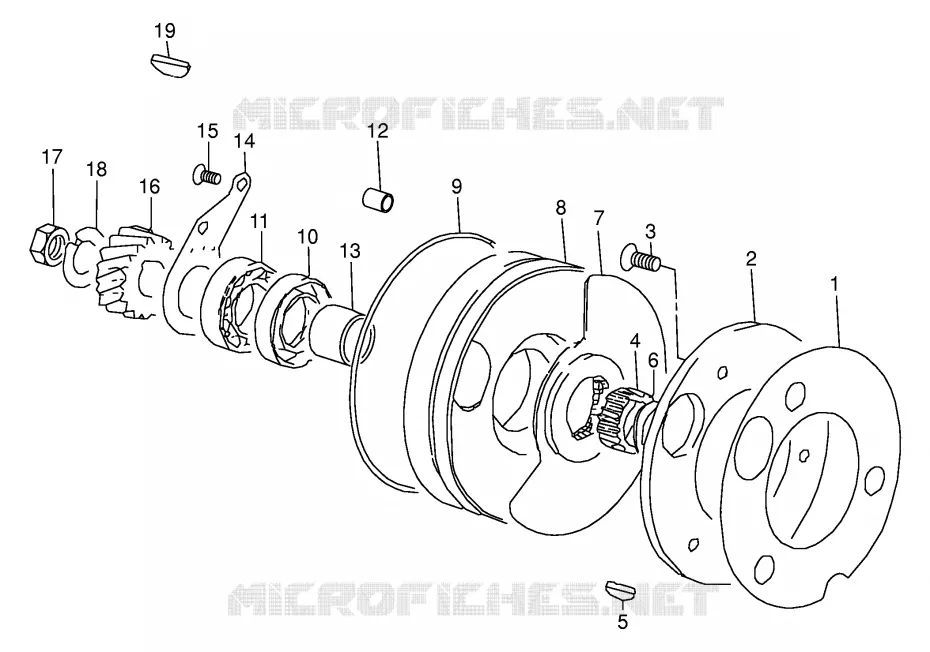

DISK VALVE Suzuki MOTO 125 Autres-modeles 1982 K125Z(E7)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
GASKET

12471-08000-000   1247108000000

1247108000000
Not available
2
SEAT, INNER VALVE

12461-08001-000   1246108001000

1246108001000
Not available
3
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

4
GUIDE, DISK VALVE

12421-08002-000   1242108002000

1242108002000
Not available
5
KEY
KEY

08341-31039-000   0834131039000

0834131039000

Unit Price

6
WASHER

08211-20343-000   0821120343000

0821120343000
Not available
7
DISK VALVE

12410-08001-000   1241008001000

1241008001000
Not available
8
VALVE SEAT SET, OUTER

12400-08860-000   1240008860000

1240008860000
Not available
9
O RING

09280-00001-000   0928000001000

0928000001000
Not available
10
OIL SEAL

09283-25016-000   0928325016000

0928325016000
Not available
11
BEARING, ROLLER KOYO

09262-25002-000  

09262-25006-000
 0926225002000

Unit Price

12
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

13
SPACER

09180-20011-000   0918020011000

0918020011000
Not available
14
PLATE, BEARING RH

12341-08200-000   1234108200000

1234108200000
Not available
15
SCREW

02122-04108-000  

02122-04103-000
 0212204108000

Unit Price

16
GEAR, PRIMARY DRIVE (NT:17)

21111-08001-000   2111108001000

2111108001000
Not available
17
NUT
NUT

09140-14002-000   0914014002000

0914014002000

Unit Price

18
WASHER
WASHER

09166-14008-000   0916614008000

0916614008000
Not available
19
KEY

08341-31049-000  

09420-04008-000
 0834131049000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DISK VALVE of your Suzuki K 125 of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 125 Autres-modeles 1982

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 Autres-modeles 1982

Select your Suzuki 1982 model

125 Autres-modeles 1982 K125Z(E7)

K 125

Suzuki Autres-modeles

Displacement: 125 cc
Year: 1982
Model code K125Z(E7)
