CYLINDER HEAD FOR SUZUKI DF 125 1999

CYLINDER

Item numbers

DISCONTINUE
HEAD ASSY, CYLINDER

11100-44A20-000 1110044A20000

Not available

GUIDE, VALVE

11115-05270-000 1111505270000

$38,97

Unit Price

RING, VALVE GUIDE
SNAP RING

09381-10004-000 0938110004000

$2,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01550-06353-000

01550-0635B-000

$4,97

Unit Price

BOLT

01550-06603-000

01550-0660A-000

$4,97

Unit Price

GASKET.CYLINDER HEAD

11141-05201-000

11141-05202-000

$17,97

Unit Price

PIN 11X16
KNOCK PIN

04211-11169-000 0421111169000

$2,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

NUT

08316-10083-000

08316-1008B-000

$3,97

Unit Price

NUT

09159-08049-000

09159-08074-000

$12,97

Unit Price

WASHER(8.5X19X2.3)

09160-08053-000

09160-08039-000

$2,97

Unit Price

GASKET (8.5X17X2.3)

09168-08021-000 0916808021000

$3,97

Unit Price

DR8EA, NGK

09482-00223-000

09482-00149-000

$6,45

Unit Price

DR8EA, NGK
SPARK PLUG (NGK, DR8EA)

09482-00399-000 0948200399000

$6,45

Unit Price

CAP, INSPECTION
CAP, INSPECTION GN125/W-

11175-18900-000

Not available

O RING, D:3 ID 29.5
O RING (D:3, ID:29.5)

09280-30001-000 0928030001000

$2,97

Unit Price

PLUG, CAM SHAFT
PLUG

09241-22002-000 0924122002000

$7,97

Unit Price

PAD, CYLINDER HEAD
PAD, CYLINDER HEAD RUBBER

11151-45000-000 1115145000000

$5,97

Unit Price

PIPE, INTAKE

13101-44A20-000

13101-44A21-000

$51,97

Unit Price

19A

DISCONTINUE
O RING

13118-44A20-000 1311844A20000

Not available

SCREW

02112-36163-000

02112-3616B-000

$4,97

Unit Price

CLAMP

09402-48208-000 0940248208000

$7,97

Unit Price

BOLT (8X50)

09103-08082-000 0910308082000

Not available

NUT

08319-31083-000

08319-3108A-000

$3,97

Unit Price

DISCONTINUE
GASKET SET

11401-05884-000 1140105884000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

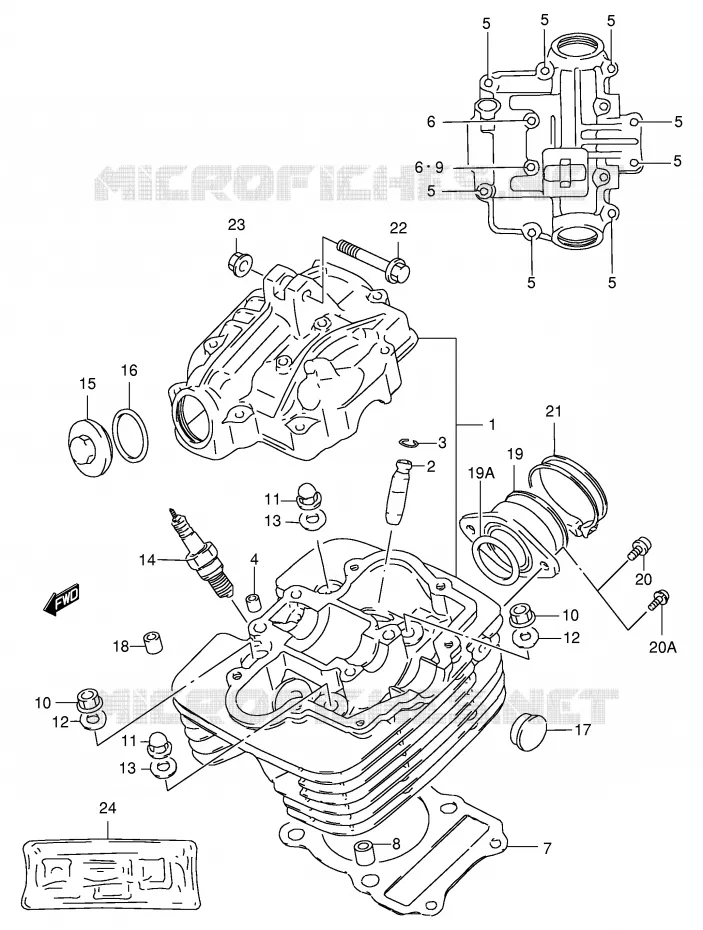

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DF 125 of DF. Let us know if you have any questions.
