FUEL TANK (MODEL K3) REFER TO FIG.23A(D- 9) FOR MODEL K4

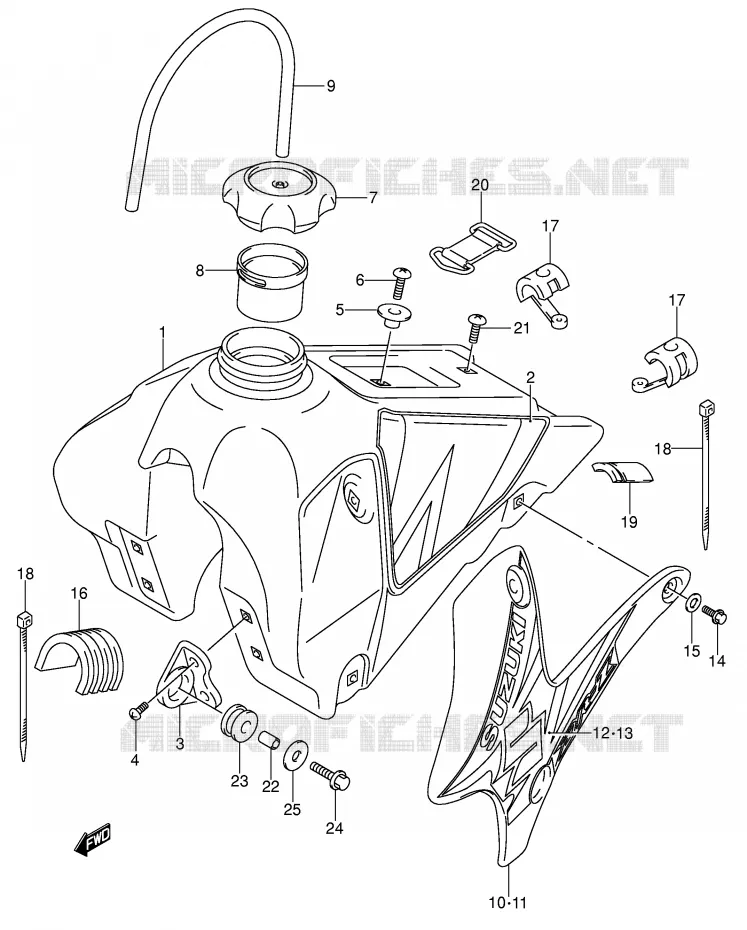

FUEL TANK (MODEL K4) FOR SUZUKI DR-Z 125 2004

FUEL TANK (MODEL K5) COLOR : HU8=30H(WHITE),YJ4(BLUE)

Item numbers

DISCONTINUE
TANK, FUEL (YELLOW)

44100-08G10-YU1 4410008G10YU1

Not available

DISCONTINUE
TAPE SET

68110-08G10-NT2 6811008G10NT2

Not available

BRACKET, FUEL TANK FR
BRACKET, FRONT

44131-27C01-000 4413127C01000

$17,97

Unit Price

BOLT

01547-06123-000

01547-0612B-000

$4,97

Unit Price

HOOK, SEAT FR
HOOK, FRONT

44132-27C01-000 4413227C01000

$90,97

Unit Price

SCREW

02142-06203-000

02142-0620B-000

$2,97

Unit Price

CAP ASSY, FUEL TANK FILLER

44200-29F00-000

44200-29F01-000

$56,97

Unit Price

TUBE, FILLER INLET
TUBE, FUEL TANK

44199-19A00-000 4419919A00000

$9,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

44171-08G10-YU1
COVER, TANK FRONT RH (YELLOW)

44171-08G00-YU1 4417108G00YU1

Not available

44181-08G10-YU1
COVER, TANK FRONT LH (YELLOW)

44181-08G00-YU1 4418108G00YU1

Not available

DISCONTINUE
TAPE, FRONT COVER RH

68115-08G10-NN2 6811508G10NN2

Not available

TAPE, FRONT COVER LH

68116-08G10-NN2 6811608G10NN2

Not available

BOLT

01547-06123-000

01547-0612B-000

$4,97

Unit Price

WASHER

09169-06060-000 0916906060000

$3,97

Unit Price

CUSHION, FUEL TANK
CUSHION

44541-13E10-000 4454113E10000

$24,97

Unit Price

DISCONTINUE
CUSHION, SIDE

44541-08G00-000 4454108G00000

Not available

CLAMP(L:300)
CLAMP

09407-30402-000 0940730402000

$6,97

Unit Price

DISCONTINUE
CUSHION, REAR

44542-08G00-000 4454208G00000

Not available

BAND, FUEL TANK RR
BAND, REAR

44560-44E00-000 4456044E00000

$18,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

SPACER, 6.5X9X13.5
SPACER

09180-06268-000 0918006268000

$3,97

Unit Price

CUSHION, FUEL TANK FR
CUSHION

44511-08G00-000 4451108G00000

$37,97

Unit Price

BOLT

01547-06253-000

01547-0625B-000

$3,97

Unit Price

WASHER, 6.5X24X1.2
WASHER

09160-06114-000 0916006114000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
