CRANKSHAFT

CAM SHAFT - VALVE FOR SUZUKI DR-Z 125 2010

TIMING

Item numbers

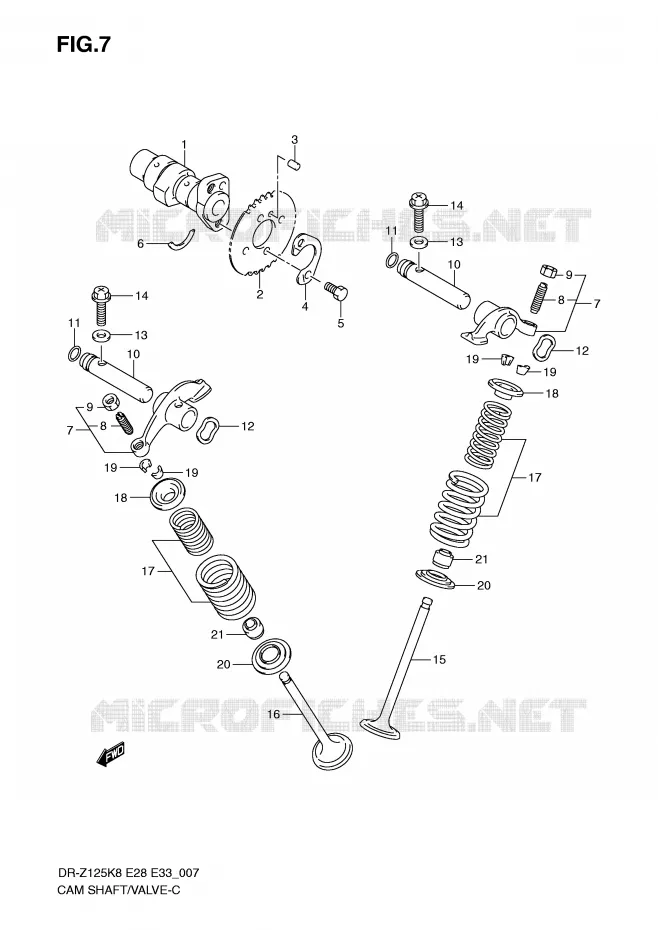

CAM SHAFT - VALVE Suzuki MOTO 125 DR-Z 2010 DR-Z125L0(E28/E33)
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
17
18
18
19
19
19
19
20
20
21
21
1
CAMSHAFT

12711-08G00-000  

12711-08G01-000
 1271108G00000

Unit Price

2
SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05202-000   1274705202000

1274705202000

Unit Price

5
BOLT (6X10.5)

09100-06166-000   0910006166000

0910006166000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW, ADJUSTING

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
SHAFT, VALVE ROCKET
SHAFT, VALVE ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

11
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

12
WASHER,WAVE<br />WASHER
WASHER, WAVE
WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

13
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
14
SCREW
BOLT

02162-0625B-000   021620625B000

021620625B000

Unit Price

15
VALVE, INTAKE

12911-04B00-000   1291104B00000

1291104B00000

Unit Price

16
VALVE, EXHAUST

12912-24400-000   1291224400000

1291224400000

Unit Price

17
SPRING SET, VALVE

12920-05240-000   1292005240000

1292005240000

Unit Price

18
RETAINER, VALVE SPRING
RETAINER, VALVE SPRING

12931-49201-000   1293149201000

1293149201000

Unit Price

19
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

20
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-49201-000   1293349201000

1293349201000

Unit Price

21
SEAL, OIL(5.5X11X8.2)
OIL SEAL

09289-05015-000   0928905015000

0928905015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 DR-Z 2010
