GASKET SET

CYLINDER HEAD FOR SUZUKI DR-Z 125 2012

CYLINDER

Item numbers

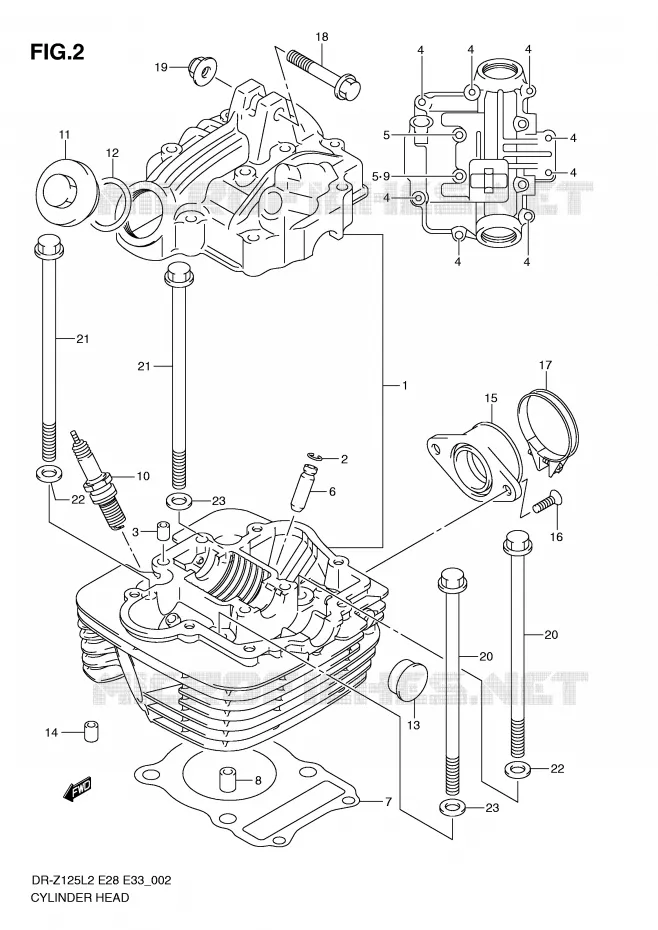

CYLINDER HEAD Suzuki MOTO 125 DR-Z 2012 DR-Z125LL2(E28)
1
2
3
4
4
4
4
4
4
4
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
1
HEAD ASSY, CYLINDER

11100-08G00-000   1110008G00000

1110008G00000

Unit Price

2
RING,VALVE GUIDE<br />SNAP RING
RING, VALVE GUIDE
SNAP RING

09381-10004-000   0938110004000

0938110004000

Unit Price

3
PIN (8X11)
PIN (8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

4
BOLT

01550-0635A-000   015500635A000

015500635A000

Unit Price

5
BOLT
BOLT

01550-0660A-000   015500660A000

015500660A000

Unit Price

6
GUIDE, VALVE
GUIDE, VALVE (OS:0.3)

11115-05270-000   1111505270000

1111505270000

Unit Price

7
GASKET, CYLINDER HEAD

11141-05202-000   1114105202000

1114105202000

Unit Price

8
PIN 11X16<br />KNOCK PIN
PIN 11X16
KNOCK PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

9
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
10
DR8EA, NGK

09482-00223-000  

09482-00149-000
 0948200223000

Unit Price

10
DR8EA, NGK
SPARK PLUG (NGK, DR8EA)

09482-00399-000   0948200399000

0948200399000

Unit Price

11
CAP, INSPECTION

11175-18900-000  

1117518900000
Not available
12
O RING,D:3 ID 29.5<br />O RING (D:3,ID:29.5)
O RING, D:3 ID 29.5
O RING (D:3, ID:29.5)

09280-30001-000   0928030001000

0928030001000

Unit Price

13
PLUG, CAM SHAFT
PLUG

09241-22002-000   0924122002000

0924122002000

Unit Price

14
PAD, CYLINDER HEAD
PAD, CYLINDER HEAD RUBBER

11151-45000-000   1115145000000

1115145000000

Unit Price

15
PIPE ASSY, INTAKE

13101-08G00-000  

13101-08G01-000
 1310108G00000

Unit Price

16
SCREW
SCREW

02112-0616B-000   021120616B000

021120616B000

Unit Price

17
CLAMP

09402-46208-000   0940246208000

0940246208000

Unit Price

18
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

19
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

20
BOLT, CYLINDER HEAD(L
STUD BOLT (L:155)

09103-08378-000   0910308378000

0910308378000

Unit Price

21
BOLT, CYLINDER HEAD(L
STUD BOLT (L:165)

09103-08379-000   0910308379000

0910308379000

Unit Price

22
WASHER(8.5X19X2.3)
GASKET (8.5X19X2.3)

09160-08039-000   0916008039000

0916008039000

Unit Price

23
GASKET (8.5X17X2.3)
GASKET (8.5X17X2.3)

09168-08021-000   0916808021000

0916808021000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
