FRONT MASTER CYLINDER (DR-Z125LL6 E33)

SHOCK ABSORBER LINKAGE FOR SUZUKI DR-Z 125 2016

REAR SHOCK ABSORBER (DR-Z125L6 E28)

Item numbers

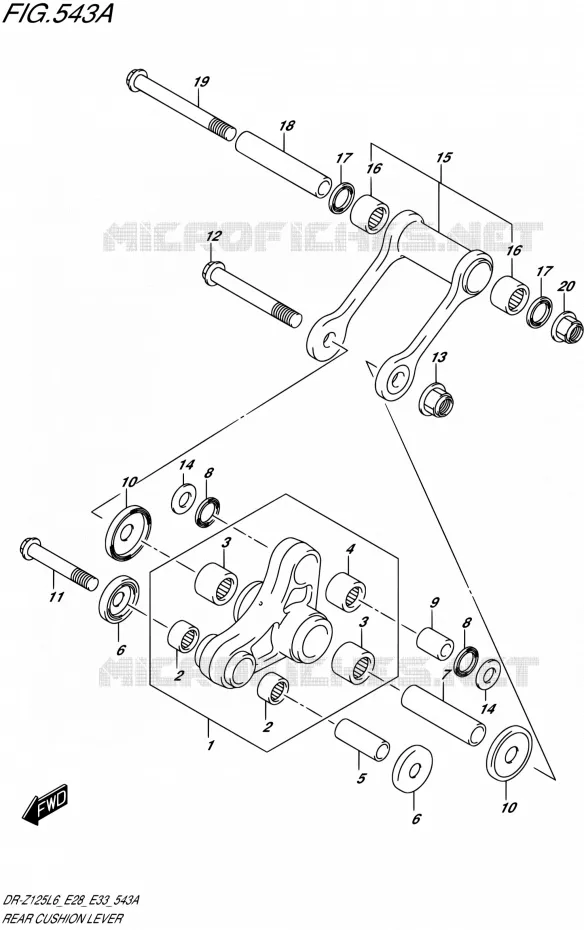

SHOCK ABSORBER LINKAGE Suzuki MOTO 125 DR-Z 2016 DR-Z125L L6 (E28,E33)
1
2
2
3
3
4
5
6
6
7
8
8
9
10
10
11
12
13
14
14
15
16
16
17
17
18
19
20
1
LEVER SET, RR CUSHION
LEVER SET, REAR CUSHION

62600-08820-000   6260008820000

6260008820000

Unit Price

2
BEARING, RR CUSHION<br />.BEARING (14X20X12)
BEARING, RR CUSHION
.BEARING (14X20X12)

09263-14027-000   0926314027000

0926314027000

Unit Price

3
BEARING<br />.BEARING (17X24X20)
BEARING
.BEARING (17X24X20)

09263-17027-000   0926317027000

0926317027000

Unit Price

4
.BEARING (16X22X12)

09263-16033-000   0926316033000

0926316033000

Unit Price

5
SPACER, RR CUSHION LEVER FR
SPACER, FRONT (10X14X37)

62317-02B40-000   6231702B40000

6231702B40000

Unit Price

6
SEAL, OIL

62162-03B00-000  

62162-03B01-000
 6216203B00000

Unit Price

7
SPACER
SPACER (12X17X60)

09180-12121-000   0918012121000

0918012121000

Unit Price

8
OIL SEAL (16X22X2.5)

09284-16005-000   0928416005000

0928416005000

Unit Price

9
SPACER, RR CUSHION LEVER RR
SPACER, REAR

62684-36E10-000   6268436E10000

6268436E10000

Unit Price

10
SEAL, DUST

62162-28E00-000  

62162-28E01-000
 6216228E00000

Unit Price

11
BOLT, RR CUSHION LEVER FR
BOLT, FRONT (10X64)

62658-02B50-000   6265802B50000

6265802B50000

Unit Price

12
BOLT, RR CUSHION LEVER CTR
SHAFT, CENTER (12X87)

62621-08G00-000   6262108G00000

6262108G00000

Unit Price

13
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price

14
WASHER, THRUST LVR CUSHION RR
WASHER, LEVER CUSHION RR

62685-37E00-000   6268537E00000

6268537E00000

Unit Price

15
ROD SET, RR CUSHION
ROD SET, CUSHION LEVER

62600-08830-000   6260008830000

6260008830000

Unit Price

16
BEARING<br />.BEARING (17X24X20)
BEARING
.BEARING (17X24X20)

09263-17027-000   0926317027000

0926317027000

Unit Price

17
SEAL,OIL
SEAL, OIL

09285-17001-000  

09285-17007-000
 0928517001000

Unit Price

18
SPACER, RR CUSHION ROD
SPACER, ROD

62646-08G00-000   6264608G00000

6264608G00000

Unit Price

19
BOLT, RR CUSHION ROD
BOLT

62648-08G00-000   6264808G00000

6264808G00000

Unit Price

20
NUT
NUT

08319-3112A-000   083193112A000

083193112A000

Unit Price
