HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI DR-Z 125 2017

FRONT FORK

Item numbers

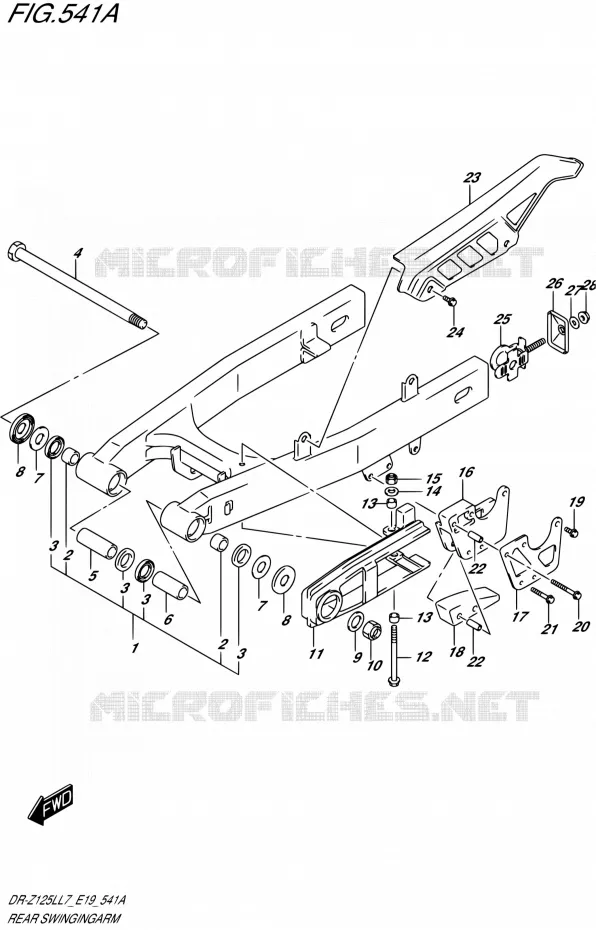

SWINGARM Suzuki MOTO 125 DR-Z 2017 DR-Z125L L7 (E19)
1
2
2
3
3
3
3
4
5
6
7
7
8
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
1
SWINGINGARM ASSY, RR
SWINGINGARM ASSY, REAR (SILVER)

61000-08G00-13L   6100008G0013L

6100008G0013L

Unit Price

2
BUSHING, RR SWGARM PIVOT
.BUSHING

61261-13700-000   6126113700000

6126113700000

Unit Price

3
KK SHAFT OIL SEAL<br />.OIL SEAL (20X27X5)
KK SHAFT OIL SEAL
.OIL SEAL (20X27X5)

09283-20031-000   0928320031000

0928320031000

Unit Price

4
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-44A11-000   6121144A11000

6121144A11000

Unit Price

5
SPACER, RR SWGARM PIVOT, R
SPACER, PIVOT RH

61251-08G00-000   6125108G00000

6125108G00000

Unit Price

6
SPACER, RR SWGARM PVT
SPACER, PIVOT LH

61251-42A00-000   6125142A00000

6125142A00000

Unit Price

7
WASHER, THRUST
WASHER

08211-14321-000   0821114321000

0821114321000

Unit Price

8
SEAL, DUST

61262-40400-000  

61262-40401-000
 6126240400000

Unit Price

9
WASHER (14.5X24X2.3)

09160-14057-000   0916014057000

0916014057000

Unit Price

10
NUT 14MM<br />NUT
NUT 14MM
NUT

09159-14019-000   0915914019000

0915914019000

Unit Price

11
BUFFER, CHAIN TOUCH DEFENSE

61273-08G00-000  

61273-08G01-000
 6127308G00000

Unit Price

12
BOLT

01560-0665B-000   015600665B000

015600665B000

Unit Price

13
SPACER (6.5X9X6.5)
SPACER (6.5X9X6.5)

09180-06257-000   0918006257000

0918006257000

Unit Price

14
WASHER
WASHER

08322-0106B-000   083220106B000

083220106B000

Unit Price

15
NUT
NUT

08319-2106B-000   083192106B000

083192106B000

Unit Price

16
GUIDE, CHAIN

61343-02B40-000   6134302B40000

6134302B40000

Unit Price

17
PLATE, GUIDE CHAIN OUTER

61342-02B40-000   6134202B40000

6134202B40000

Unit Price

18
DEFENSE, CHAIN GUIDE

61348-08G00-000  

61348-08G01-000
 6134808G00000

Unit Price

19
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

20
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

21
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

22
SPACER (6.5X10X23.5)

09180-06333-000   0918006333000

0918006333000

Unit Price

23
CASE, CHAIN

61311-01A03-000   6131101A03000

6131101A03000

Unit Price

24
BOLT
BOLT (6X10)

09116-06096-000   0911606096000

0911606096000

Unit Price

25
ADJUSTER, CHAIN

61410-08G00-000   6141008G00000

6141008G00000

Unit Price

26
PLATE, CHAIN ADJUSTER
PLATE, CHAIN ADJUSTER GUIDE

61421-38200-000   6142138200000

6142138200000

Unit Price

27
WASHER

09160-12085-000  

08322-01123-000
 0916012085000

Unit Price

28
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
