CRANKSHAFT FOR SUZUKI DR-Z 125 2020

CAMSHAFT - VALVES

Item numbers

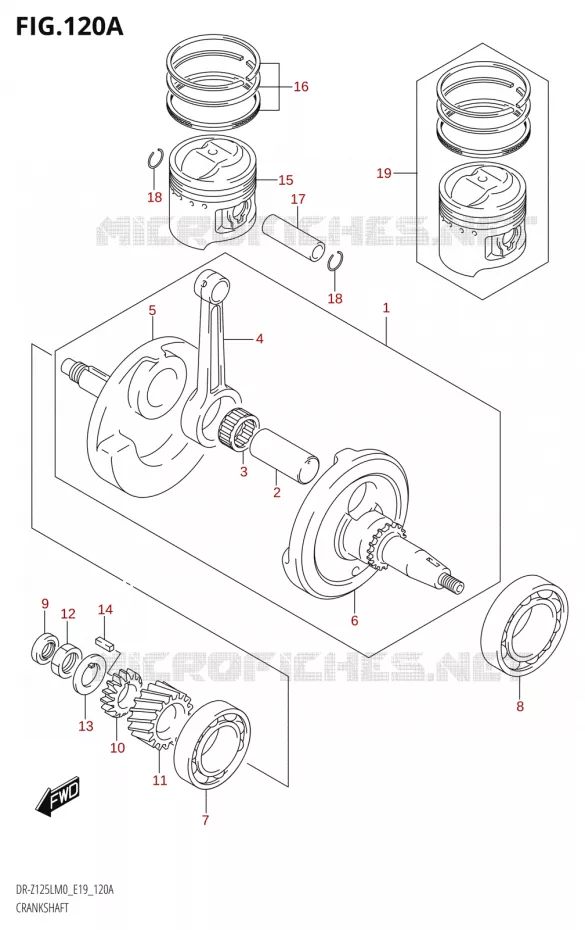

CRANKSHAFT Suzuki MOTO 125 DR-Z 2020 DR-Z125L M0 (E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
1
CRANKSHAFT ASSY

12200-05240-000   1220005240000

1220005240000

Unit Price

2
.PIN, CRANK

12211-05231-000   1221105231000

1221105231000

Unit Price

3
.BEARING (28X36X15.8)

09263-28027-0B0   09263280270B0

09263280270B0

Unit Price

4
.CONNROD

12161-05221-0B0   12161052210B0

12161052210B0

Unit Price

5
CRANKSHAFT, R
.CRANKSHAFT RH

12221-05210-000   1222105210000

1222105210000

Unit Price

6
CRANKSHAFT, L
.CRANKSHAFT LH

12261-05210-000   1226105210000

1226105210000

Unit Price

7
BALL BEARING
BEARING (28X68X18)

09262-28014-000   0926228014000

0926228014000

Unit Price

8
BEARING (35X72X17)

09262-35038-000   0926235038000

0926235038000

Unit Price

9
SEAL OIL 12X21X7
OIL SEAL (12X21X7)

09282-12009-000   0928212009000

0928212009000

Unit Price

10
GEAR, OIL PUMP DRIVE
GEAR, OIL PUMP DRIVE (NT:15)

16321-05201-000   1632105201000

1632105201000

Unit Price

11
GEAR, PRIMARY DRIVE (NT:17)

21111-05200-0C0   21111052000C0

21111052000C0

Unit Price

12
NUT, PRY DRIVE GEAR
NUT

09140-16019-000   0914016019000

0914016019000

Unit Price

13
WASHER

09166-16012-000   0916616012000

0916616012000

Unit Price

14
KEY
KEY

09421-04004-000   0942104004000

0942104004000

Unit Price

15
PISTON
PISTON (YELLOW)

12111-05202-0F0   12111052020F0

12111052020F0

Unit Price

16
RING SET, PISTON

12140-01410-000   1214001410000

1214001410000

Unit Price

17
PIN, PISTON
PIN, PISTON (YELLOW)

12151-05220-0A0   12151052200A0

12151052200A0

Unit Price

18
PISTON PIN CIRCLIP<br />SNAP RING
PISTON PIN CIRCLIP
SNAP RING

09381-14001-000   0938114001000

0938114001000

Unit Price

19
PISTON SET (OS:0.5)

12100-05200-050   1210005200050

1210005200050

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
