Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR 125 1983

GEAR SHIFTING ASSY

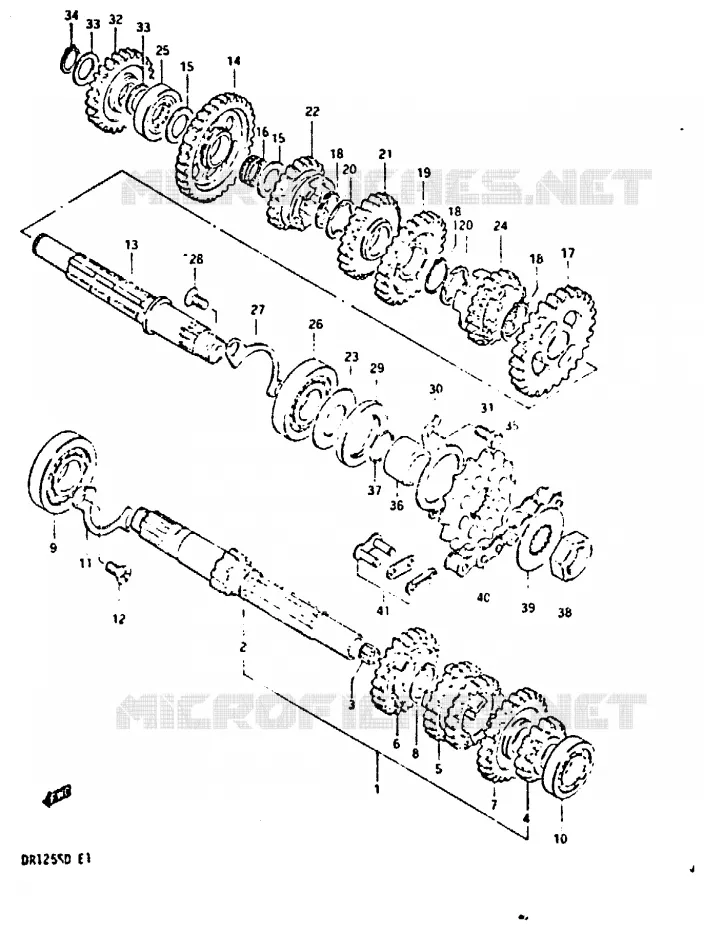

TRANSMISSION Suzuki MOTO 125 DR 1983 DR125SD(Z/D)
1
DISCONTINUED

24120-05200-000   2412005200000

2412005200000
Not available
2
DISCONTINUED

24121-05200-000   2412105200000

2412105200000
Not available
3
DISCONTINUED

24125-38200-000   2412538200000

2412538200000
Not available
4
DISCONTINUED

24221-05200-000   2422105200000

2422105200000
Not available
5
DISCONTINUED

24231-05201-000   2423105201000

2423105201000
Not available
6
DISCONTINUED

24251-05201-000   2425105201000

2425105201000
Not available
7
DISCONTINUED

24261-05201-000   2426105201000

2426105201000
Not available
8
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

9
BEARING

09262-20062-000  

09262-20121-000
 0926220062000

Unit Price

10
BALL BEARING

08123-60020-000  

08123-60027-000
 0812360020000

Unit Price

11
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

12
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

13
DISCONTINUE
DRIVESHAFT

24130-05200-000   2413005200000

2413005200000
Not available
14
GEAR, 1ST DRIVEN(NT:33)

24311-05200-000  

24311-05202-000
 2431105200000

Unit Price

15
WASHER

08211-15251-000   0821115251000

0821115251000

Unit Price

16
BEARING(15X19X7.8)
BEARING

09263-15023-000   0926315023000

0926315023000

Unit Price

17
DISCONTINUED

24320-05200-000   2432005200000

2432005200000
Not available
18
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

19
DISCONTINUED

24331-05200-000   2433105200000

2433105200000
Not available
20
WASHER, LOCK
WASHER

09167-20011-000   0916720011000

0916720011000

Unit Price

21
GEAR, 4TH DRIVEN(NT:23)

24341-05201-000  

24341-05203-000
 2434105201000

Unit Price

21
DISCONTINUED

24341-05200-000   2434105200000

2434105200000
Not available
22
GEAR, 5TH DRIVEN(NT:21)

24351-05201-000  

24351-05202-000
 2435105201000

Unit Price

22
DISCONTINUED

24351-05200-000   2435105200000

2435105200000
Not available
23
WASHER, OIL SEALING
WASHER

24359-05200-000   2435905200000

2435905200000

Unit Price

24
GEAR, 6TH DRIVEN (NT:20)

24361-05200-000   2436105200000

2436105200000
Not available
25
BEARING, RH

09263-15024-000   0926315024000

0926315024000
Not available
26
BEARING, RH

08113-62040-000   0811362040000

0811362040000
Not available
27
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

28
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

29
OIL SEAL, DR SFT
OIL SEAL, LH

09283-27010-000   0928327010000

0928327010000

Unit Price

30
RETAINER, DRIVE SHAFT OIL SEAL

24751-05201-000  

24751-05210-000
 2475105201000

Unit Price

31
BOLT, FRONT

01107-06108-000   0110706108000

0110706108000
Not available
32
GEAR, KICK STARTER IDLE(NT:26)
GEAR, IDLE

26260-05201-000   2626005201000

2626005201000

Unit Price

32
DISCONTINUED

26260-05200-000   2626005200000

2626005200000
Not available
33
WASHER, THRUST
WASHER

08211-15201-000   0821115201000

0821115201000

Unit Price

34
CIRCLIP

08331-31159-000  

08331-3115A-000
 0833131159000

Unit Price

35
SPROCKET, ENGINE

27511-41301-000  

27511-41310-000
 2751141301000

Unit Price

36
SPACER

27531-05200-000   2753105200000

2753105200000

Unit Price

37
O-RING, ENG SPROCKET
O RING

09280-19005-000   0928019005000

0928019005000

Unit Price

38
NUT, ENG SPROCKET
NUT

09140-16017-000   0914016017000

0914016017000

Unit Price

39
ENG SPROCKET WASHER
WASHER

09167-20012-000   0916720012000

0916720012000

Unit Price

40
DISCONTINUED

27600-05210-000   2760005210000

2760005210000
Not available
41
JOINT(RK)

27620-05220-000  

27620-40220-000
 2762005220000

Unit Price

41
JOINT SET, CHAIN

27620-46911-000  

27620-46912-000
 2762046911000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1983

Select your Suzuki 1983 model

125 DR 1983 DR125SD(Z/D)

DR 125

Suzuki DR

Displacement: 125 cc
Year: 1983
Model code DR125SD(Z / D)
