Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR 125 1985

CAM SHAFT - VALVE

Item numbers

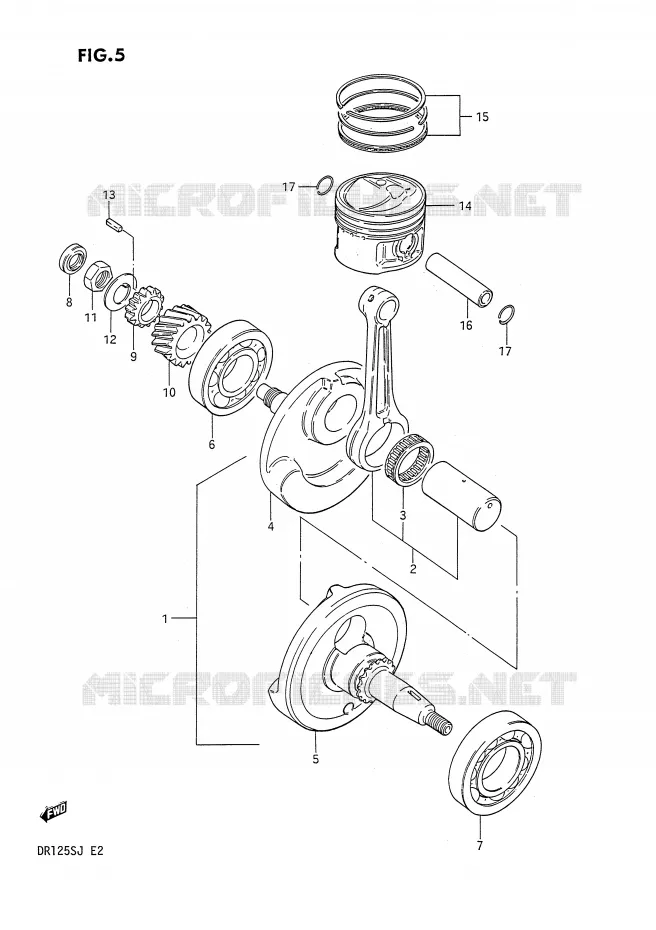

CRANKSHAFT Suzuki MOTO 125 DR 1985 DR125SF(E2)
2
1
DISCONTINUED

12200-05224-000   1220005224000

1220005224000
Not available
2
CONNECTING ROD SET

12200-05851-000  

12105-05821-000
 1220005851000

Unit Price

3
BEARING(28X36X15.8)

09263-28022-0B0  

09263-28027-0B0
 09263280220B0

Unit Price

4
CRANKSHAFT, R

12221-05201-000  

12221-05210-000
 1222105201000

Unit Price

5
CRANKSHAFT, L

12261-05202-000  

12261-05203-000
 1226105202000

Unit Price

6
BALL BEARING
BEARING, RH

09262-28014-000   0926228014000

0926228014000

Unit Price

7
BEARING 35X72X17
BEARING, LH

09262-35038-000   0926235038000

0926235038000

Unit Price

8
SEAL OIL 12X21X7
OIL SEAL, RH

09282-12009-000   0928212009000

0928212009000

Unit Price

9
DISCONTINUED

16321-05200-000   1632105200000

1632105200000
Not available
10
GEAR, PRIMARY DRIVE(NT:17)

21111-05200-000  

21111-05200-0C0
 2111105200000

Unit Price

11
NUT, PRY DRIVE GEAR
NUT

09140-16019-000   0914016019000

0914016019000

Unit Price

12
WASHER
LOCK WASHER

09166-16012-000   0916616012000

0916616012000

Unit Price

13
KEY<br />KEY, GEAR
KEY
KEY, GEAR

09421-04004-000   0942104004000

0942104004000

Unit Price

14
PISTON

12111-05202-000  

12111-05202-0F0
 1211105202000

Unit Price

14
PISTON SET(OS:0.5)

12111-05202-050  

12100-05200-050
 1211105202050

Unit Price

14
DISCONTINUE

12111-05202-100  

1211105202100
Not available
15
RING SET, PISTON

12140-05211-000  

12140-01410-000
 1214005211000

Unit Price

15
DISCONTINUE

12140-05211-050  

1214005211050
Not available
15
DISCONTINUE

12140-05211-100  

1214005211100
Not available
16
PIN, PISTON

12151-05220-000  

12151-05220-0A0
 1215105220000

Unit Price

17
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000   0938114001000

0938114001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1985

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1985

Select your Suzuki 1985 model

125 DR 1985 DR125SF(E2)

Suzuki DR

Displacement: 125 cc
Year: 1985
Model code DR125SF(E2)
