GEAR SHIFTING ASSY

KICK STARTER FOR SUZUKI DR 125 1985

FUEL COCK

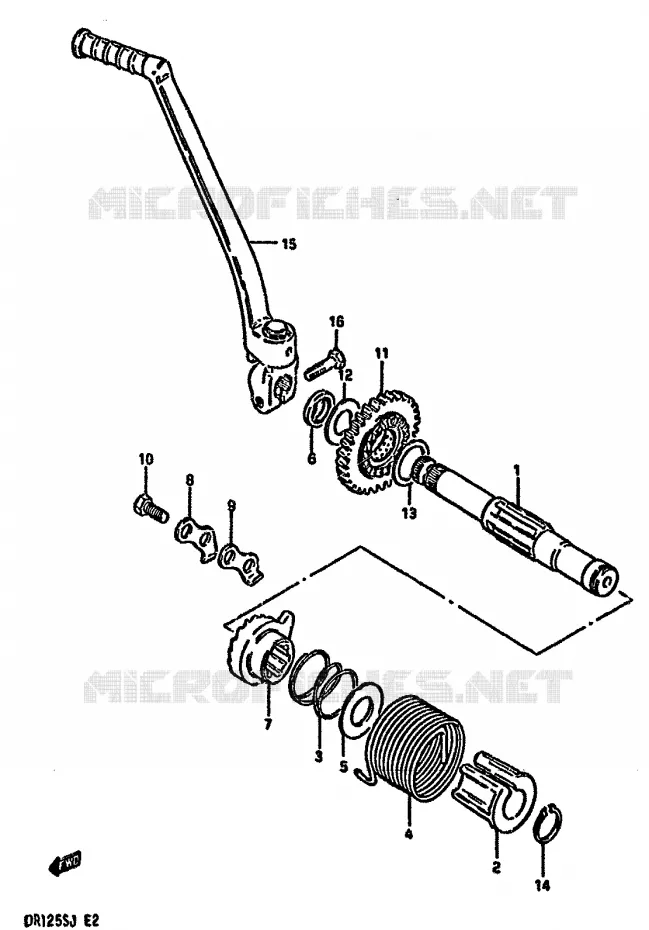

KICK STARTER Suzuki MOTO 125 DR 1985 DR125SF(F/H/J)
1
SHAFT, KICK STARTER(NT:31)

26211-05202-000  

26211-05203-000
 2621105202000

Unit Price

2
GUIDE, KICK STARTER SFT SPRING
GUIDE, SPRING

26221-05200-000   2622105200000

2622105200000

Unit Price

3
SPRING

09440-32006-000   0944032006000

0944032006000

Unit Price

4
KK STR SHAFT SPR****<br />SPRING
KK STR SHAFT SPR****
SPRING

09448-45003-000   0944845003000

0944845003000

Unit Price

5
THRUST WASHER
PLATE

08211-17341-000   0821117341000

0821117341000

Unit Price

6
KK SHAFT OIL SEAL<br />OIL SEAL (16X24X5)
KK SHAFT OIL SEAL
OIL SEAL (16X24X5)

09285-16003-000   0928516003000

0928516003000

Unit Price

7
STARTER, KICK

26231-38201-000  

26231-38202-000
 2623138201000

Unit Price

8
GUIDE, KICK STARTER
LIFTER

26232-38200-000   2623238200000

2623238200000

Unit Price

9
STOPPER, KICK STARTER
STOPPER

26233-32400-000   2623332400000

2623332400000

Unit Price

10
BOLT

01107-08207-000  

01500-08207-000
 0110708207000

Unit Price

11
GEAR, KICK STARTER DRIIVE

26240-05201-000  

26240-05202-000
 2624005201000

Unit Price

12
KK ST SHFT THR WASHR
WASHER, RH

09160-16003-000   0916016003000

0916016003000

Unit Price

13
SHIM(20X26X1)

08211-20261-000  

09181-20139-000
 0821120261000

Unit Price

14
THIRD PINION CIRCLIP<br />CIRCLIP
THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000   0938017001000

0938017001000

Unit Price

15
LEVER ASSY, KICK STARTER

26300-42A00-000   2630042A00000

2630042A00000

Unit Price

16
DISCONTINUE

09100-08193-000  

0910008193000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1985

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1985

Select your Suzuki 1985 model

125 DR 1985 DR125SF(F/H/J)

DR 125

Suzuki DR

Displacement: 125 cc
Year: 1985
Model code DR125SF(F / H / J)
