Parts catalogue

Parts diagram

FRONT WHEEL

HANDLEBAR FOR SUZUKI DR 125 1988

FRONT CALIPER

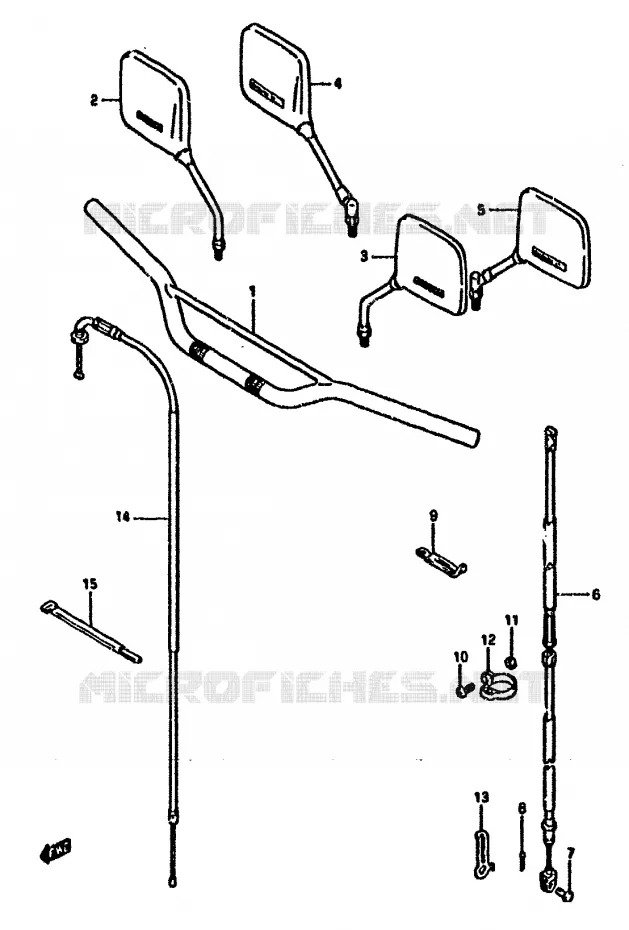

HANDLEBAR Suzuki MOTO 125 DR 1988 DR125SJ(F/H/J)
1
DISCONTINUE

56110-01A20-291  

5611001A20291
Not available
2
MIRROR ASSY, RR VIEW, R

56500-01A50-000  

56500-13A11-000
 5650001A50000

Unit Price

2
MIRROR ASSY, REAR VIEW RH

56500-01A20-000   5650001A20000

5650001A20000
Not available
3
MIRROR ASSY, REAR VIEW LH

56600-01A20-000   5660001A20000

5660001A20000
Not available
3
DISCONTINUE

56600-01A50-000  

5660001A50000
Not available
4
MIRRO ASSY, REAR VIEW RH

56500-10040-000   5650010040000

5650010040000
Not available
5
MIRROR ASSY, REAR VIEW LH

56600-10040-000   5660010040000

5660010040000
Not available
6
DISCONTINUED

58200-42A00-000   5820042A00000

5820042A00000
Not available
6
DISCONTINUE
CABLE ASSY, CLUTCH

58200-42A10-000   5820042A10000

5820042A10000
Not available
7
DISCONTINUE<br />PIN
DISCONTINUE
PIN

09200-06011-000   0920006011000

0920006011000
Not available
8
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

9
CLAMP(L:65)

09404-06201-000  

09404-06206-000
 0940406201000

Unit Price

10
SCREW

02112-05165-000  

02112-05164-000
 0211205165000

Unit Price

11
NUT

08310-22055-000  

09140-05006-000
 0831022055000

Unit Price

12
CLAMP, CLUTCH CABLE

58285-05350-000  

58285-05351-000
 5828505350000

Unit Price

13
CLAMP, NO.3

58285-05201-000   5828505201000

5828505201000
Not available
14
DISCONTINUE
CABLE ASSY, THROTTLE

58300-44A00-000  

5830044A00000
Not available
15
CL CABLE LOW CLAMP
CL CABLE LOW CLAMP

09407-18301-000  

09407-18302-000
 0940718301000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1988

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1988

Select your Suzuki 1988 model

125 DR 1988 DR125SJ(F/H/J)

DR 125

Suzuki DR

Displacement: 125 cc
Year: 1988
Model code DR125SJ(F / H / J)
