Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR 125 1994

GEAR SHIFTING ASSY

Item numbers

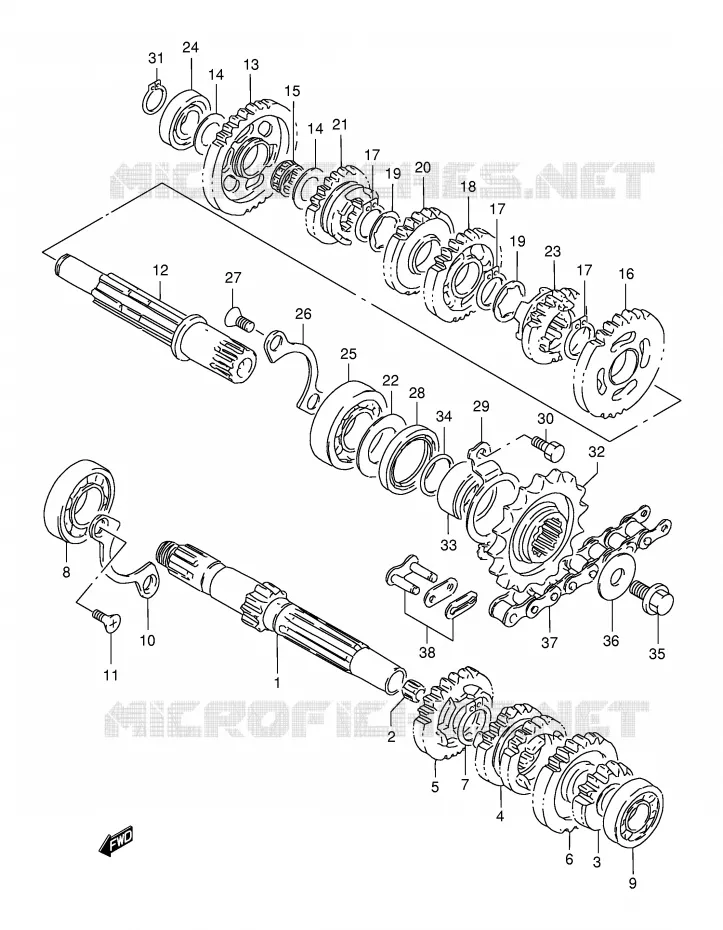

TRANSMISSION Suzuki MOTO 125 DR 1994 DR125SER(E4)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
1
SHAFT, COUNTER (NT:11)

24120-05810-000   2412005810000

2412005810000
Not available
2
BUSH

24125-38201-000   2412538201000

2412538201000

Unit Price

3
GEAR, 2ND DRIVE (NT:14)

24221-05202-000   2422105202000

2422105202000

Unit Price

4
GEAR, 3RD & 4TH DRIVEN(NT:19/21
GEAR, 3RD/4TH DR (NT:19/21)

24231-05203-000  

2423105203000
Not available
5
GEAR, 5TH DRIVE (NT:26)

24251-05212-000   2425105212000

2425105212000

Unit Price

6
GEAR, 6TH DRIVE (NT:24)

24260-44A01-000   2426044A01000

2426044A01000

Unit Price

7
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

8
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

9
BALL BEARING
BEARING

08123-60027-000   0812360027000

0812360027000

Unit Price

10
RETAINER, DRIVE SHAFT BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

11
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

12
DISCONTINUE
SHAFT, DRIVE

24130-44A20-000   2413044A20000

2413044A20000
Not available
13
GEAR, 1ST DRIVEN(NT:33)

24311-05201-000  

24311-05202-000
 2431105201000

Unit Price

14
WASHER
THRUST WASHER

08211-15251-000   0821115251000

0821115251000

Unit Price

15
BEARING (15X19X7.8)

09263-15023-000   0926315023000

0926315023000

Unit Price

16
GEAR, 2ND DRIVEN (NT:26)

24320-05202-000  

2432005202000
Not available
17
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

18
GEAR, 3RD DRIVEN (NT:26)

24331-05203-000   2433105203000

2433105203000

Unit Price

19
WASHER, LOCK
LOCK WASHER

09167-20011-000   0916720011000

0916720011000

Unit Price

20
GEAR, 4TH DRIVEN (NT:23)

24341-05203-000   2434105203000

2434105203000

Unit Price

21
GEAR, 5TH DRIVEN (NT:24)

24351-05211-000   2435105211000

2435105211000

Unit Price

22
WASHER, OIL SEALING

24359-42A00-000   2435942A00000

2435942A00000

Unit Price

23
GEAR, 6TH DRIVEN (NT:20)

24361-05211-000   2436105211000

2436105211000

Unit Price

24
BEARING (15X36X12)

09264-15001-000   0926415001000

0926415001000

Unit Price

25
BEARING<br />BEARING (22X50X14)
BEARING
BEARING (22X50X14)

09262-22018-000   0926222018000

0926222018000

Unit Price

26
RETAINER, DRIVESHAFT BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

27
BOLT

01500-06103-000  

01500-0610B-000
 0150006103000

Unit Price

28
OIL SEAL (30X40X6)
OIL SEAL (30X40X6)

09283-30053-000   0928330053000

0928330053000

Unit Price

29
RETAINER, DRIVE SHAFT OIL SEAL

24751-42A01-000  

24751-42A10-000
 2475142A01000

Unit Price

30
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

31
CIRCLIP

08331-31156-000  

08331-3115A-000
 0833131156000

Unit Price

32
27510-44A10

27510-44A10-000  

2751044A10000
Not available
33
SPACER, ENGINE SPROCKET

27531-42A00-000   2753142A00000

2753142A00000

Unit Price

34
O RING (D:2.5,ID:21)
O RING (D:2.5, ID:21)

09280-21008-000   0928021008000

0928021008000

Unit Price

35
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

36
WASHER, THRUST
WASHER

08211-08283-000   0821108283000

0821108283000

Unit Price

37
CHAIN, DRIVE

27600-46911-134  

27600-46912-134
 2760046911134

Unit Price

38
JOINT(RK)
JOINT, CHAIN (RK)

27620-40220-000   2762040220000

2762040220000

Unit Price

38
JOINT SET, CHAIN

27620-46911-000  

27620-46912-000
 2762046911000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1994

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 DR 1994

Select your Suzuki 1994 model

125 DR 1994 DR125SER(E4)

DR 125

Suzuki DR

Displacement: 125 cc
Year: 1994
Model code DR125SER(E4)
