FRONT CALIPER

FR. MASTER CYLINDER FOR SUZUKI DR 125 2011

REAR DAMPER

Item numbers

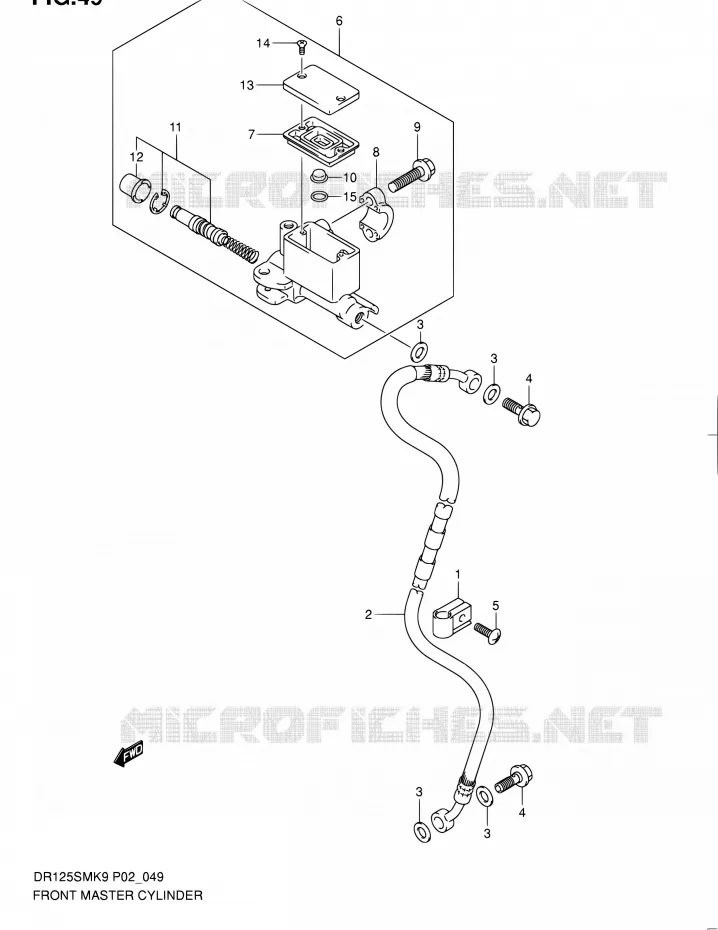

FR. MASTER CYLINDER Suzuki MOTO 125 DR 2011 DR125SML0(E19)
1
2
3
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
CLAMP, BRAKE HOSE

58621-07A20-000   5862107A20000

5862107A20000

Unit Price

2
HOSE, FRONT BRAKE

59480-24H00-000   5948024H00000

5948024H00000
Not available
3
WASHER<br />WASHER, BRAKE FLUID
WASHER
WASHER, BRAKE FLUID

09161-10009-000   0916110009000

0916110009000

Unit Price

4
BOLT, BRAKE FLUID
BOLT, BRAKE FLUID

09360-10062-000   0936010062000

0936010062000

Unit Price

5
SCREW
SCREW, FR BRAKE HOSE CL

02142-0616B-000   021420616B000

021420616B000

Unit Price

6
CYLINDER ASSY, FRONT MASTER

59600-C44-E40J000   59600C44E40J000

59600C44E40J000
Not available
7
.DIAPHRAGM

59667-C44-B00J000   59667C44B00J000

59667C44B00J000
Not available
8
.HOLDER, MASTER CYLINDER

59671-C36-500J000   59671C36500J000

59671C36500J000
Not available
9
.BOLT (6X22)

59675-C02-FA0J000   59675C02FA0J000

59675C02FA0J000
Not available
10
.SEPARATOR

59748-C36-E00J000   59748C36E00J000

59748C36E00J000
Not available
11
.PISTON/CUP SET

69600-C38-810J000   69600C38810J000

69600C38810J000
Not available
12
..BOOT

59666-C44-300J000   59666C44300J000

59666C44300J000
Not available
13
.CAP

69669-C24-A01J000   69669C24A01J000

69669C24A01J000
Not available
14
.SCREW, RESERVOIR CAP

69689-C49-300J000   69689C49300J000

69689C49300J000
Not available
15
.RING

69744-C36-E00J000   69744C36E00J000

69744C36E00J000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FR. MASTER CYLINDER of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
