OIL PUMP FOR SUZUKI DR 125 2012

CLUTCH

Item numbers

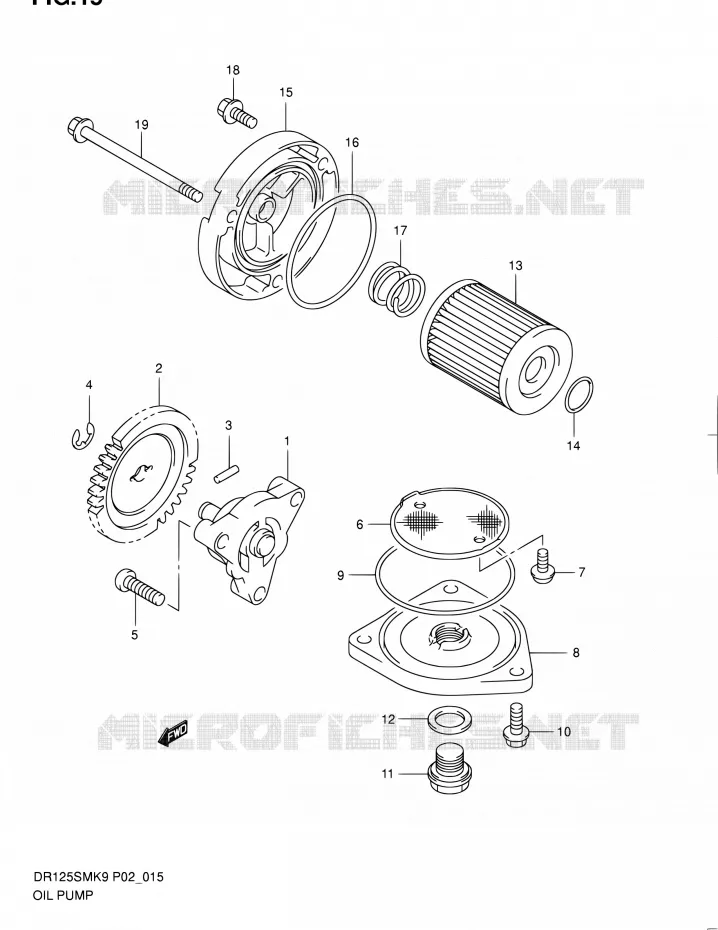

OIL PUMP Suzuki MOTO 125 DR 2012 DR125SML0(E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
PUMP ASSY, ENGINE OIL

16400-25H00-000   1640025H00000

1640025H00000
Not available
2
GEAR, DRIVEN (NT:30)

16331-12F10-000   1633112F10000

1633112F10000
Not available
3
CLUTCH SPRING PIN<br />PIN
CLUTCH SPRING PIN
PIN

09261-02001-000   0926102001000

0926102001000

Unit Price

4
E RING<br />CIRCLIP
E RING
CIRCLIP

08332-1106B-000   083321106B000

083321106B000

Unit Price

5
SCREW
SCREW

02112-0620A-000   021120620A000

021120620A000

Unit Price

6
STRAINER, ENGINE OIL

16520-05202-000   1652005202000

1652005202000

Unit Price

7
SCREW

02112-7512A-000   021127512A000

021127512A000

Unit Price

8
CAP, OIL STRAINER

16523-24H00-000   1652324H00000

1652324H00000
Not available
9
O-RING,OIL STR CAP<br />O RING (D:2.4,ID:60.5)
O-RING, OIL STR CAP
O RING (D:2.4, ID:60.5)

09280-60005-000   0928060005000

0928060005000

Unit Price

10
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

11
PLUG<br />PLUG, DRAIN
PLUG
PLUG, DRAIN

09247-14026-000   0924714026000

0924714026000

Unit Price

12
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

13
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-05240-000   1651005240000

1651005240000

Unit Price

14
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

15
CAP, OIL FILTER

16512-24H10-000   1651224H10000

1651224H10000
Not available
16
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

17
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

18
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

19
BOLT

01547-0690A-000   015470690A000

015470690A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
